Page 1: Owners Manual

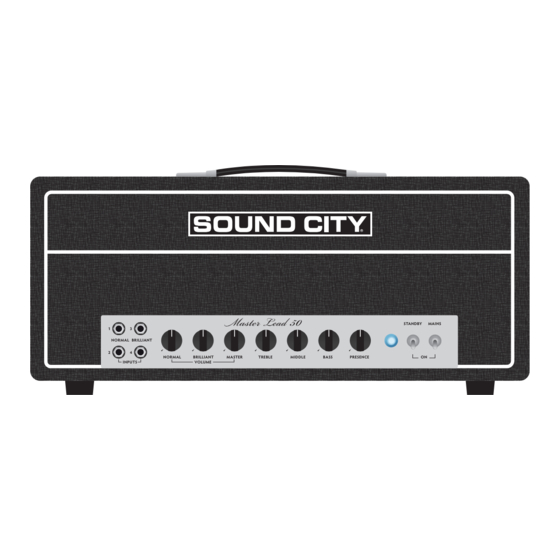

STANDBY MAINS NORMAL BRILLIANT NORMAL BRILLIANT MASTER TREBLE MIDDLE BASS PRESENCE INPUTS VOLUME OWNERS MANUAL Master Lead 50 ™ www.soundcityamp.com... - Page 2 Getting familiar with the Sound City Master Series amps is easy, so don’t be terribly surprised when you find yourself up and running in no time. First hand experience and real world application will yield the ultimate satisfaction of finding your own path of comprehension and self-expression.
-
Page 3: Important Safety Instructions
X CAUTION: No user serviceable parts inside, refer servicing to qualified personnel only. X SOUND CITY® amplifiers and loudspeaker systems are capable of producing very high sound pressure levels which may cause temporary or permanent hearing damage. Use care when setting and adjusting volume levels during use. -
Page 4: First Steps
NORMAL jack to the top BRILLIANT jack or vice versa. In either case plug your guitar into the remaining bottom jack (Input 2 or 4) for best tone and sustain. NORMAL BRILLIANT INPUTS © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice. - Page 5 INPUTS VOLUME The Sound City MASTER VOLUME is noticeably different than the typical master volume you’re probably used to, and this is important in understanding how to unlock the beast within. A typical master volume is usually set low to limit and manage the volume of a very high gain cascaded preamp stage. On the Master Series amps, it is best to think of the master volume as a volume that controls the other volumes, similar to a PA mixer, for example.
- Page 6 10. STANDBY - Turns on high voltage to output section (down is “on“). 11. MAINS – Switches main AC power on or off (down is “on“). © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice.
-
Page 7: Rear Panel Overview
One 8 Ohm cab = 8 Ohms, two 16 Ohm cabs = 8 Ohms, two 8 Ohm cabs = 4 Ohms. 7. SPEAKER OUTPUT 8/4 OHM – Parallel wired jacks. © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 8: Tube Overview
12AX7A/7025 China Gain Stage 3: Phase Inverter Buffer V4 (shielded tube) 12AT7A/China Phase Inverter V5 – V6 EL34 Mullard Power Tubes (USE ONLY EL34, 6CA7 or KT77) © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice. - Page 9 NORMAL BRILLIANT MASTER TREBLE MIDDLE BASS PRESENCE INPUTS VOLUME Windmill Power Chords Humbucker STANDBY MAINS NORMAL BRILLIANT NORMAL BRILLIANT MASTER TREBLE MIDDLE BASS PRESENCE INPUTS VOLUME © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice.
-
Page 10: Troubleshooting Guide
OUTPUT IMPEDANCE: 4Ω / 8Ω (selectable), 16Ω (fixed) WIDTH: 25.750 in (65 cm) DEPTH: 10.250 in (26 cm) WEIGHT: 41 lb (18.6 kg) Product specifications are subject to change without notice. © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 11: Declaration Of Conformity
EN 60065 for low voltage, as laid down in Article 10 of the EMC Directive. Group Eleven, LLC. 6850 Vineland Ave. Unit P North Hollywood, CA 91605 USA © 2017 Sound City® Amplification. All rights reserved. Specifications subject to change without notice. -
Page 12: Limited Warranty
LIMITED WARRANTY Subject to the obligations and exclusions found below, this product is warranted by Sound City Amplifica- tion, LLC., (herein SCA) against manufacturing defects in materials and workmanship for the period of Five (5) Years from the date of purchase, with the exception of the tubes, fuses and speakers where applicable, which carry a 90 day warranty.
