Apex Digital 575 Owner's Manual

Apex575
The Apex575 is a lightweight Low-Profile Head-Worn or
Neck-worn microphone designed specifically for theatrical or
presentation applications.
Detachable 1.5m (5ft) Cable Assemblies with Interchangeable
Connectors ( TA3F, TA4F, Locking Four-pin and locking 1/8th-inch
TRS Jacks Included) making the Apex575 compatible with
virtually any popular wireless transmitter.
The Apex575 converts from a single ear 'neck-worn' microphone

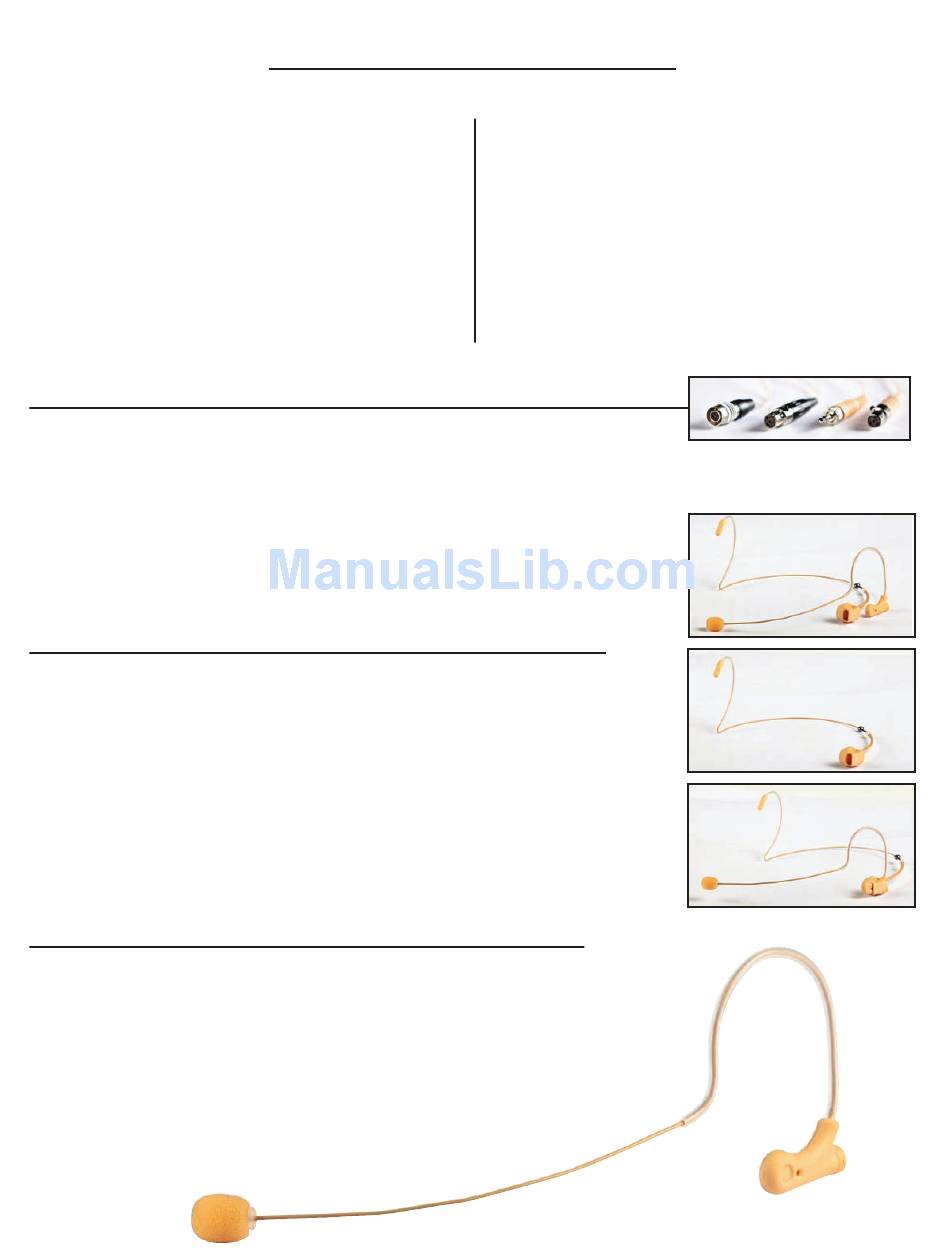

Detachable Cable Connectors
Only attach interchangeable cable connector with triangle indicators facing point to point. Do
not reverse as damage may occur to microphone and/or cable. Pay particular attention not to
damage the dual contacts. Cable connector is secure to press firmly until you hear / feel a
positive click when the connector locks in place.
Disconnect cable from microphone connector carefully. Only pull cable from strain relieved
reinforced end - DO NOT detach pulling on wire only. DO NOT twist as damage to wire and / or
microphone may occur.
Features
• Ultra Lightweight 'Invisible' Low-Profile Neck-Worn Microphone
• Compatible with Virtually All Wireless Beltpack Transmitters
• Converts to Secure Head-Worn Microphone with Apex EA01 Headset Adaptor
• Detachable 1.5m (5ft) Cable Assemblies with Interchangeable Connectors
(TA3F, TA4F, Locking Four-pin and locking 1/8th-inch TRS Jacks Included)
• Easily Form Fitted for Maximum Comfort
• Omnidirectional Polar Pattern
• Includes Vinyl Carrying Case

Specifications

Element: Back Electret Condenser
Polar Pattern: Omnidirectional
Frequency Response: 50Hz to 18,000Hz
Sensitivity: -60dB (+/- 3dB, 0dB = 1v/ubar@1kHz)
Impedance: 1500 ohms =/- 30% @ 1kHz
Operating Voltage: 1 – 10v DC
Weight: 8g (without Cable)
to a secure wrap-around head-worn microphone with Apex EA01
Headset Adaptor included in your package. To attach the EA01,
firmly grip the Apex575 from the base, and slide the rubber loop
over the ear grip. Slide the loop all the way on to ear grip. Be
careful not to overextend the rubber loop.
The Apex575 microphone capsule picks up with an
omnidirectional polar pattern, reducing proximity effect
(excessive artificial low frequency boost that occurs when the
capsule is close to the source).
(Included)
Owner's Manual
