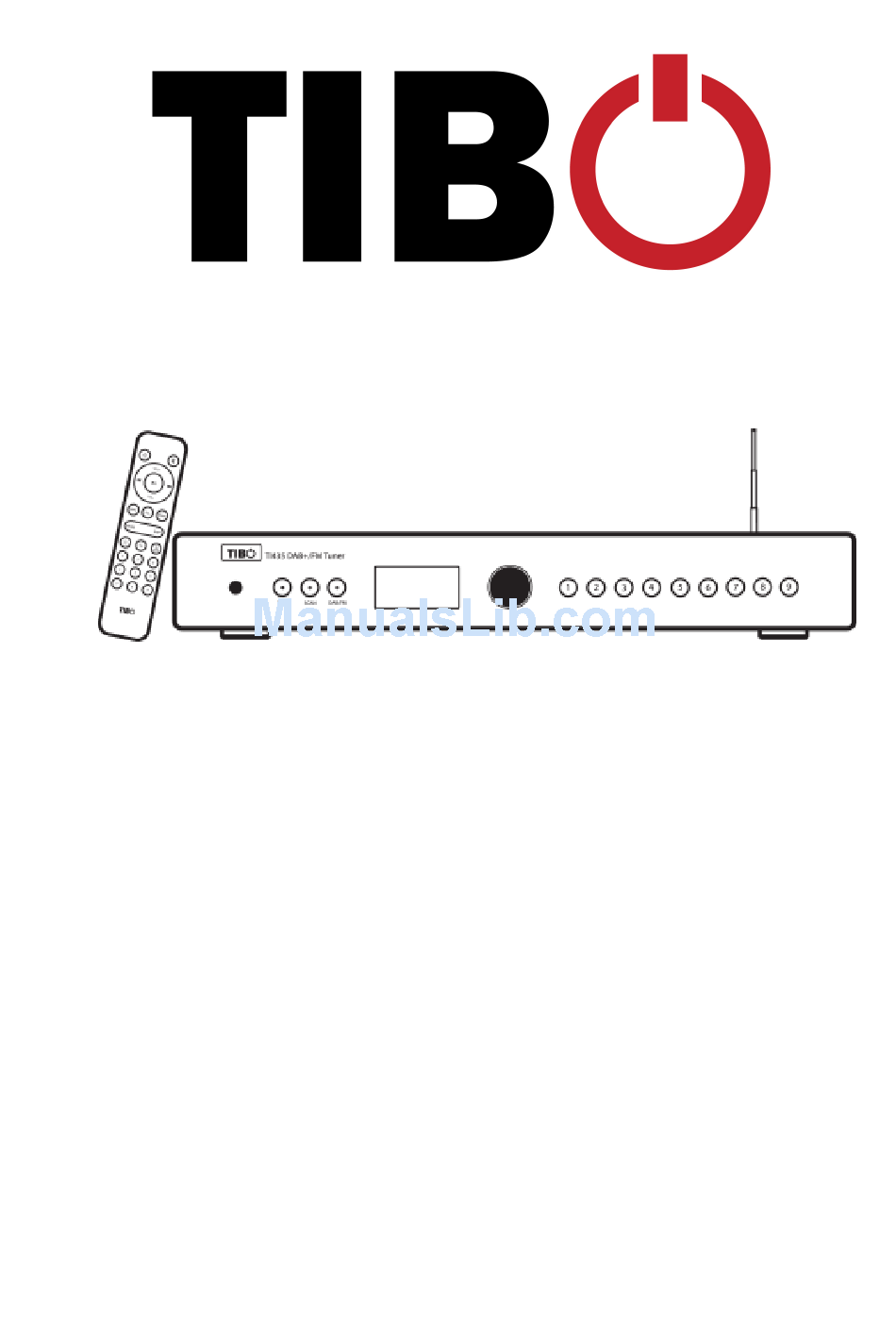

  • Page 1 TI435 DAB – User Manual...

  • Page 2: Table Of Contents

    Contents • Safety Information • Introduction • First time system setup • DAB mode • FM mode • Using the pre-set functions • Additional Information • Troubleshooting • Specifications...

  • Page 3: Safety Information

    • Safety Information Do not share the power socket with another appliance. Do not disassemble or attempt to repair the appliance on your own. lf you are not using the appliance, pull the power cord out of the mains socket. Be careful of the power cord and maintain it as appropriate.
  • Page 4 Do not wash the appliance or use it in the bathroom, or it may cause potential injuries and other problems. Installation location Leave sufficient space around the appliance of at least 5 cm from any wall/obstacle to ensure proper ventilation and prevent the appliance from overheating.
  • Page 5 Storm lf the appliance is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute. Do not drop small items or a liquid into the appliance In the event that you find small items or a liquid inside the appliance, you see smoke or smell an odour, immediately disconnect the appliance from the power grid.

  • Page 6: Introduction

    (roof mounted aerial recommended) then FM is also on hand. The TIBO TI435 DAB+ has 18 pre-sets that are clearly accessible. (9 pre-sets for DAB mode and 9 for FM mode.) The large display is equally clear and informative.

  • Page 7: First Time System Setup

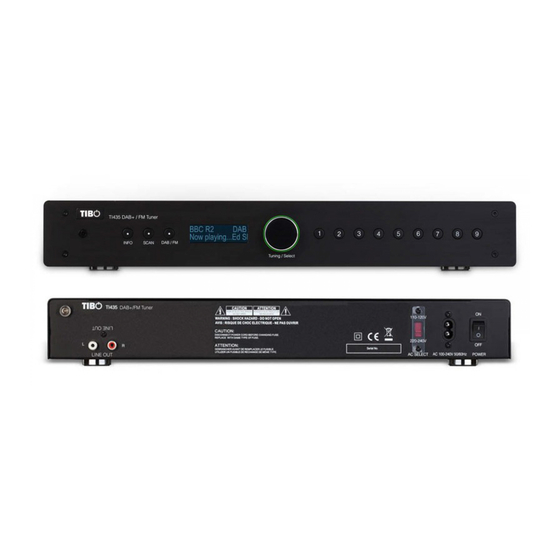

    First time system setup • In the box - TI435 DAB Tuner - UK figure 8 plug - EU figure 8 plug - Remote control - Quick start guide - Radio aerial Front panel layout 1) IR Remote Control Sensor...
  • Page 8 4) DAB / FM: Switch between DAB and FM mode 5) Display Screen: Displays current radio frequency and information 6) Central Dial: Long press to turn on/standby - Short press to select desired radio station - Turn dial to browse through nearby radio stations 7) Direct Pre-set buttons: 9 pre-sets in DAB mode and 9 pre-sets in FM mode...

  • Page 9: Remote Control

    Remote Control 1) Power On / Standby 2) Volume Up / Down: (N/A for the model) 3) Info Button: Press to view information about current radio station 4) Mode Button: Switch between DAB and FM mode 5) Light Button: Change the colour of the outer ring surrounding the central dial 6) 10+ Button: (N/A for this model) 7) Preset Buttons 1-9: Recall direct pre-sets in FM...
  • Page 10 10) Play / Pause Button: Play desired radio frequency 11) Select Button: Select desired radio frequency 12) Scan Button: Automatically scan for nearby radio frequencies 13) Shift Button: (N/A for this model) 14) Group Button: (N/A for this model) Initial setup steps 1) Find the radio aerial and screw into the aerial port on the rear of the Tuner.

  • Page 11: Dab Mode

    DAB mode • 1) If the Tuner is in FM mode, then press the mode button on either the Tuner or the remote to change to DAB mode. 2) The Tuner should automatically scan for radio stations in DAB mode but if not then just press the scan button on the front panel or the remote.

  • Page 12: Using The Pre-Set Functions

    • Using the pre-set functions 1) To save a radio station as a pre-set in either DAB or FM mode, press and hold one of the pre-set buttons 1-9 for 2 seconds on the front panel or the remote. 2) If performed correctly, the Tuner will display the message “pre-set stored”.
  • Page 13 Info Button – Secondary Menu Pressing and holding the info button on DAB mode will bring up a secondary menu, in which you can browse between: Full Scan, Manual Tune, DRC, Language and Main Menu. There is also a similar secondary menu on FM mode that includes: Scan Setting, Audio Setting, Language and Main Menu.

  • Page 14: Troubleshooting

    • Troubleshooting Problem Possible Cause/Solution No power - The power switch is turned off. Turn on power switch. - The power chord is disconnected. Readjust power chord. No sound - Volume control is at lowest level. Use remote to increase volume or turn up volume on your amplifier.

  • Page 15: Specifications

    - Tuner has reached maximum capacity of stations that can be stored. Perform factory reset and scan again. • Specifications Product name TI435 DAB+/FM Tuner Frequency response 20Hz – 20kHz Impedance 4 Ohms Power supply 100 – 240V AC Product dimensions mm...
