- Page 1 Telic STD35 Camera Installation Guide Version 1.0 Telic GmbH – Internet: www.telic.de; E-mail: info@telic.de...
- Page 2 Introduction ..............................3 Attention, please read this........................4 Installing the Camera ............................ 5 The Connector ............................5 Mechanical Assembly ..........................6 Enabling Camera in Software ......................... 7 Document history ............................7...

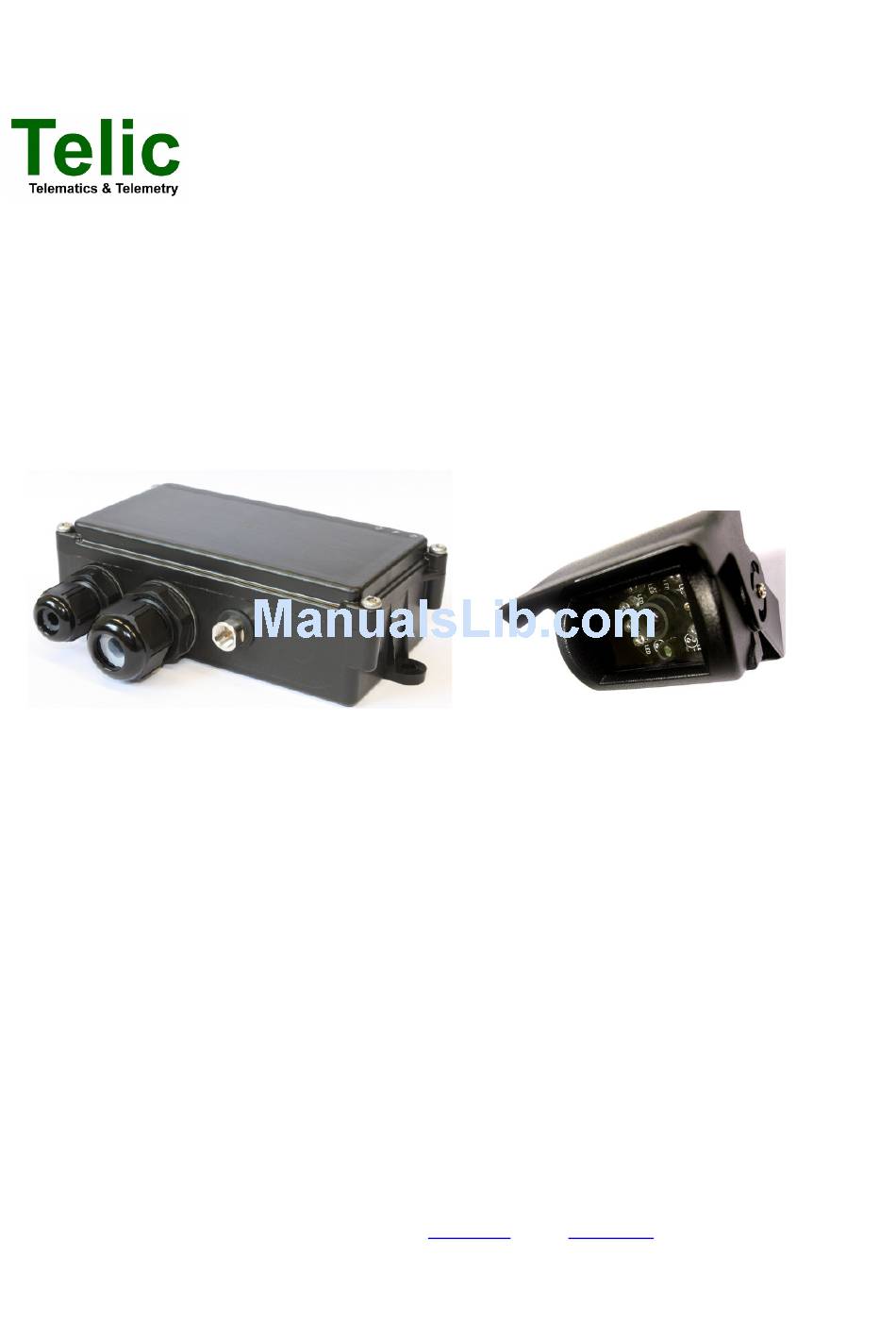

- Page 3 We wish you success and joy in using your new STD35! The STD35 offers the possibility to monitor an object or a room with the help of the optional Telic camera for the STD35. You can retrieve an actual picture form the STD35 using any computer worldwide that is connected to the internet (e.g.
- Page 4 This user manual contains important information regarding installation of the Telic Camera module in an STD35. Read it carefully before attempting to start working with the STD35 if the Camera module will be used. The warranty will be null and void should damage occur due to non-compliance with these instructions for use.
-
Page 5: Installing The Camera
2 Installing the Camera The Connector Inside the STD35 is the camera connector. The connector is designed to pair with the connector of the Telic Camera module. There is a small tab on the Camera Module connector that ensures that the connector can... - Page 6 Grommet without significantly compromising the water resistance of the device. The way to get the connector to fit through the Grommet is to first cut the top bar off the Telic Camera module’s connector. Then remove the Grommet Cap and the grey rubber seal inside the grommet and cut it along the side of the rubber seal.
-
Page 7: Document History
Enabling Camera in Software You can deactivate the camera functionality when the camera is connected to the STD35 with the command “CAM:0.” and activate it with “CAM:x.”. The camera offers different resolutions and you can select the desired camera resolution (x):...
