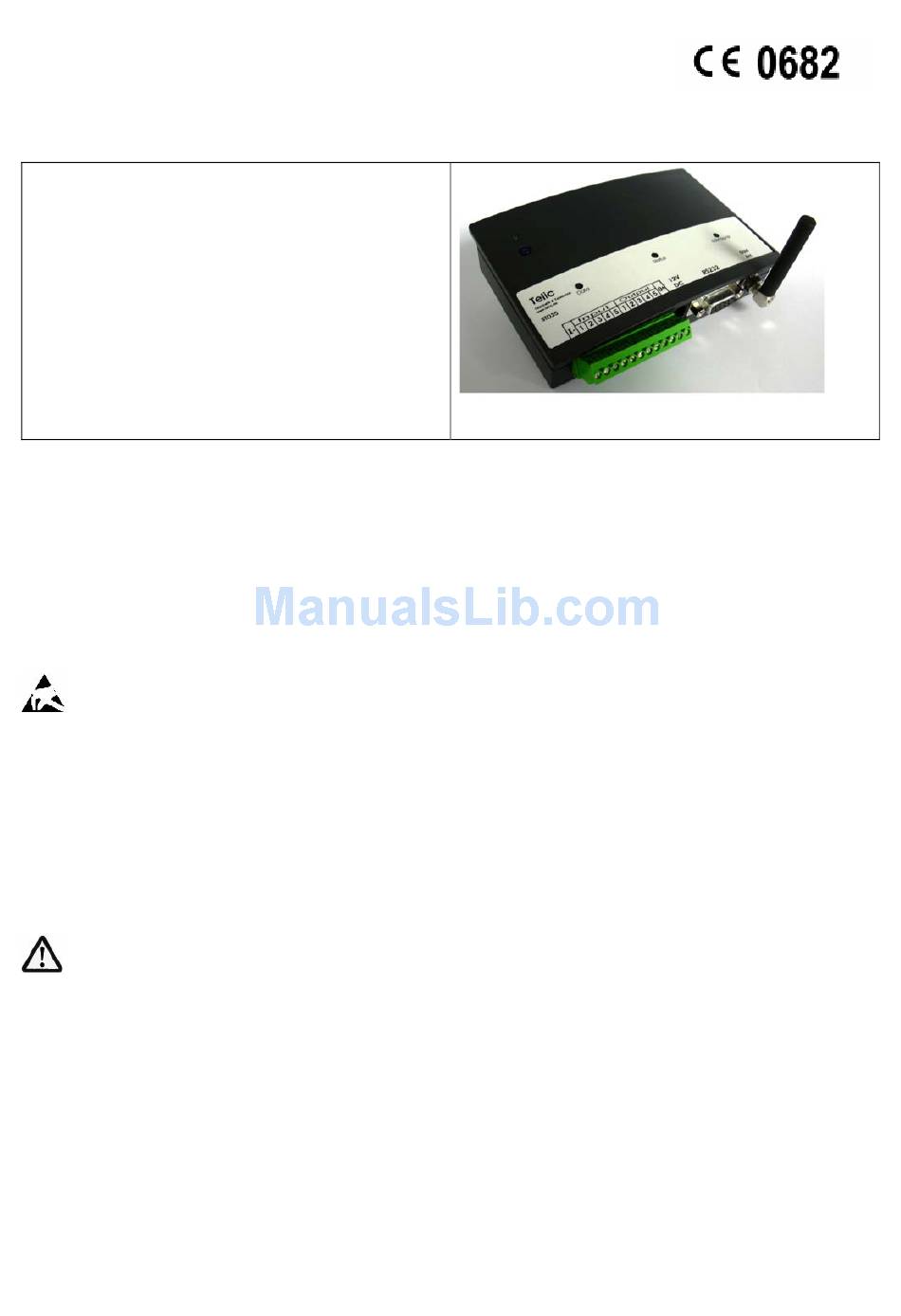

Important Information

This user manual contains important information for startup and use of the STD35. Read it carefully before you
start working with the STD35.
The warranty will be null and void should damage occur due to non-compliance with these instructions for use. We
cannot accept any responsibility for consequential loss.
We cannot be held responsible for material loss or personal injury that is due to incompetent use or non-
compliance with the safety instructions. The warranty will be null and void in such circumstances.
The STD35 contains highly integrated components which can be damaged by electrostatic discharge.
Therefore only touch the STD35 on the edges and avoid to touch the pins of components
on the board.

Advice

The one who makes the module operational by adding further components or putting it into a housing, is seen as
manufacturer according to DIN VDE 0869 and obliged to hand out all necessary documents with the device and to
indicate his name and address. Devices which are made out of modules have to be considered as an industrial
product from the safety perspective.
During use of the STD35 Short Messages (SMS) can be generated automatically. Costs may occur for you by this
SMS traffic.

Safety Instructions

When using products which are exposed to electric voltage the valid VDE-regulations have
to be observed. Especially VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711 and VDE
0860 are applicable.
• Before opening of a device always pull the mains adapter or make sure that the device is disconnected from the
power supply.
• Components, modules or devices have to be build into a housing before they are put into operation. During
installation they should not be connected to any power supply .
• You should only use tools on components, modules or devices if they are disconnected from the power supply
and the electric charge, which may still be stored in some components, inside the device has been discharged.
• All cables and wires which are energized and connected to the device, the module or components have to be
checked regularly for any damage of the isolation shield or fractures of the cables. If the supply cables are
visibly damaged the device has to be taken out of operation immediately until the faulty cable has been
exchanged.
1
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STD35 and is the answer not in the manual?

Questions and answers

Related Manuals for Telic STD35

Summary of Contents for Telic STD35

  • Page 1: Table Of Contents

    Devices which are made out of modules have to be considered as an industrial product from the safety perspective. During use of the STD35 Short Messages (SMS) can be generated automatically. Costs may occur for you by this SMS traffic.

  • Page 2: Operation Conditions

    Introduction The STD35 is a telemetry module which is easy to install and simple to use. With the STD35 you can control five relays and monitor the status of five digital inputs with one or several common mobile phones. Apart from the STD35 you only need a valid SIM Card of any network provider (GSM 900 / 1800 MHz).

  • Page 3: Connectors And Leds

    Before connecting the supply voltage, please enter the SIM card into the SIM-card holder on the rear side of the STD35. Displace the moving part of the SIM card holder a little bit and open it. Enter the SIM card into the moving part, close it again and fix it by slight displacing.

  • Page 4: General Aspects

    1. Configuration-Call („easy-setup“) In factory status the STD35 can be configured by a call within the first 3 minutes after connecting to the supply voltage. In this case is „logging“ the phone number, from which this call has been made (supposing, that this number is transmitted), and will report future event to this phone number.
  • Page 5 The STD35 will keep these configurations even after the cut-off from the supply voltage. • In case that the switching time for a relay has been put to 0, the STD35 will, at each new call, switch the related relay permanently.
  • Page 6 • The SMS „R:“ will set back the device into the factory status. • Via the SMS „ST?“ you can ask for a response SMS from the STD35 with the actual status of the inputs and outputs. The same functionality can be achieved pushing the button on the upper side of the STD35, being under the LED.

  • Page 7: Tracking Via Gps

    Tracking via GPS By plugging of an appropriate GPS Mouse on the serial connector (DSUB 9) of the front side of the STD35, you can transmit the GPS data directly to your mobile phone. This function can be launched from the Admin respectively the 4 additional Masters durchgeführt werden.

  • Page 8: Modem Functionality

    For using the Modem functionality of the STD35, the serial interface has to be modified using a terminal program. The STD35 is put to 9600 Baud 8N1 as the factory setting. After connecting the RS232 with a terminal program on the PC, just the simple command <at>...

  • Page 9: Technical Data

    1: 5 - 20V logic 0: < 1,5V I case of technical problems and questions concerning the STD35 our Hotline is available for you: Mo. – Fr.: 9:00 a.m. – 5:00 p.m. Techn. Hotline: +49 (0)89 / 4902 686 11...
