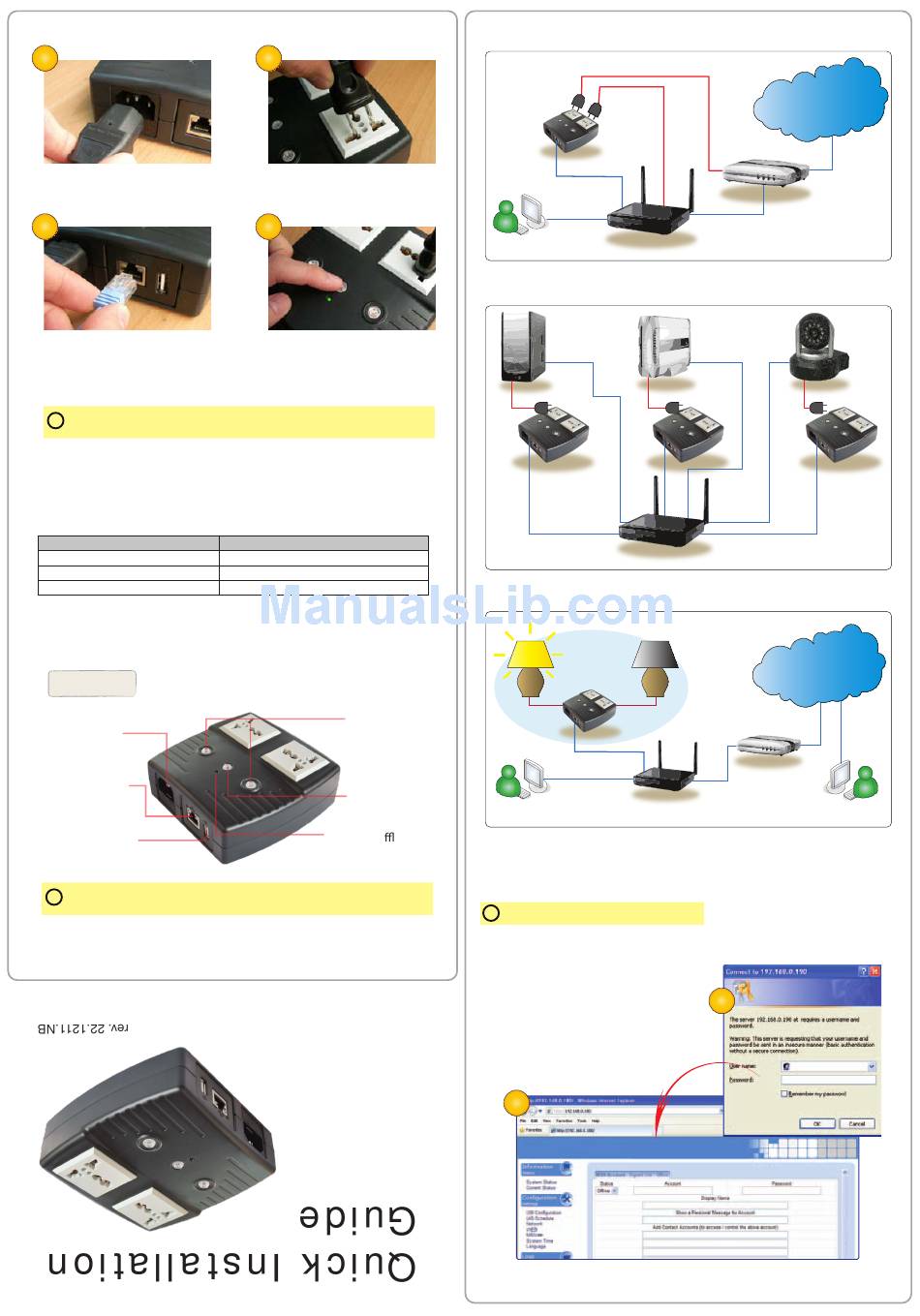

Part 1. Hardware Setup....................................................................
1
Step 1:
Connect the power
cord to device and wall outlet.
3
Step 3:
Connect LAN cable
from Router. The internet
LED will blink to show
internet is on-line.
!
Press UIS on/off only when Internet LED is blinking. If Internet LED is OFF, pressing
button may result in unit performing outlet reset.
Part 2. LED Indicators....................................................................
Green LED indicator
Blinking
ON
OFF
Description
Fused
Power
Input
LAN Port
USB Charger
5V, 500mA
!
Press UIS On/Off, Outlet 1 and Outlet 2 button for a few minutes. The indicator light
will blink, and the unit will reset to factory default.
2
Step 2: Connect the router
power plug to an outlet.
4
Step 4:
Press and hold (2
seconds) UIS On/Off button
to activate internet protection.
Description
Internet is online
System is currently in protect mode
No internet connection
Outlet
ON/OFF
Button
UIS
ON/OFF
Button
Internet
Online / O ine
Indicator
Usage #1:
Device setup to perform automatic reset of router and
modem. No software setup required (see Part 1).
Power
input
Line
LAN
LAN
Local user
Router / Hub
Usage #2:
Device setup as watch-dog to keep internet device alive.
Software setup required (see Part 3).
Server
Power
LAN
Power
input
input
Line
Line
LAN
Router / Hub
Usage #3:
Device setup to remote control electrical devices. Software
setup required (see Part 3).
Power
Power
input Line
input Line
LAN
LAN
Router / Hub
Local user
Part 3: Software & Web Setup........................................................
For advanced user, the unit can be customized for alternate usage and
configured for remote access.
!
Only Outlet 1 & 2 can be remotely controlled.
To access the Web User Interface for customization;
Step 1: While in the same LAN as the
device, open a browser and type
http://Outlet or run Utility (see Part 5).
Step 2: A dialog box appears.
Username: admin
Password: (field is left blank)
2
Power
WWW
input
Line
WAN
xDSL / cable /
3.5G modem
LAN
NAS
IP Cam
LAN
Power
input
Line
LAN
LAN
Electrical
Device
WWW
WAN
WAN
DSL modem
LAN
Remote user
1
