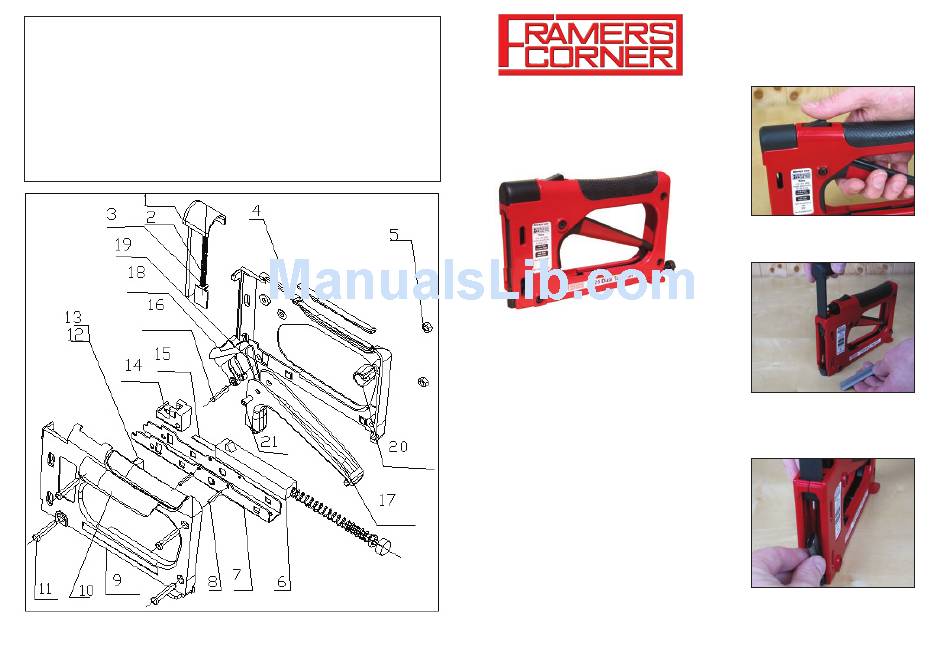

Framers Corner T225 Operator's Manual

1. Slider Knob
2. Spring Loaded Top Pressure Unit
3. Pusher
4. Right Hand Body
5. M4 Nut (4 off)
6. Driver Holder Unit
7. Base
8. 22mm x 2.5mm Diameter Pins
9. Left Hand Body
10. Handle Grip
11. M4 x 22mm Screw (4 off)
Framers Corner, Cedar Court, Walker Road, Bardon, Leicestershire, LE67 1TU, England
www.framerscorner.co.uk
12. Cushion Plate
13. Cushion
14. Nosepiece
15. Driver
16. Spacer Bush
17. Handle
18. Release Knob
19. Spring
20. Dampener
21. Trigger Spindle

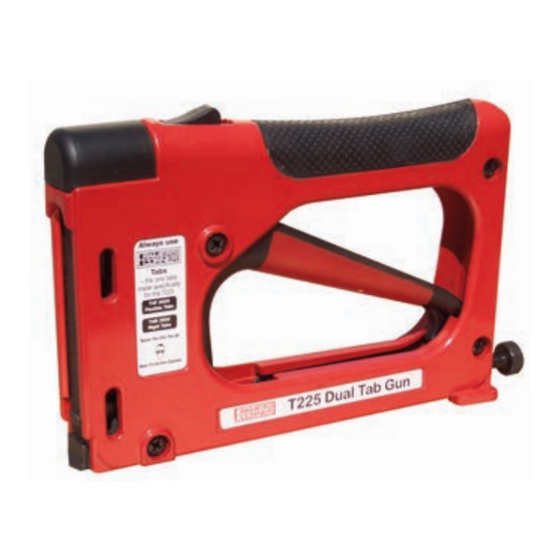

T225 Dual Tab Driver
Operators Manual
Thank you for purchasing the Framers
Corner T225 Dual Tab Driver.
This tool is intended to be used for
picture frame assembly, to hold the
glass, artwork and backing board
securely into a wooden picture
frame.
SAFETY INSTRUCTIONS
l Always wear eye protection
l Never pull the trigger unless the
nose is pressed firmly against
the wood
l Place the frame to be assembled
on a flat stable surface
l Small frames will need securing
before inserting tabs

LOADING TABS

Press the magazine cover release
Pull the magazine cover up to reveal
the loading slot
Load a strip of T4F or T4R tabs into
the magazine with pointed end
forwards
Firmly press the magazine cover
back down until it clicks
