DESCRIPTION:
Toyama Touch Art switches are intelligent control devices that provides convenient and comfort to the
user. Usage of SMD components not only ensures reliability but also makes the product highly compact
for its functionality and features. The use of SMPS ( Switch Mode Power supply ) makes the Touch Art
switches operational across countries from North America having 127V supply to European / Asian
countries having 230V supply without any field setting.The various functions can be performed from the
wall unit or hand held IR remote. Option is available for the switches to operate with home gateway
through Wireless Zigbee protocol or wired RS485/232 interface for Automation.
TECHNICAL DATA:
• Power Source
• Power Frequency
• Number of Switching Zones
• Load per switching zone
• Remote Operating range
• Operating Temperature
• Standby power Consumption : <10mW
TOYAMA CONTROLS & SYSTEM PVT LTD
36A, KIADB Industrial Estate, Hoskote, Bangalore – 562114
Ph: +91 9341810636 | Fax: +91 80 27971749
wizhom@toyamaindia.com | www.toyamaindia.com

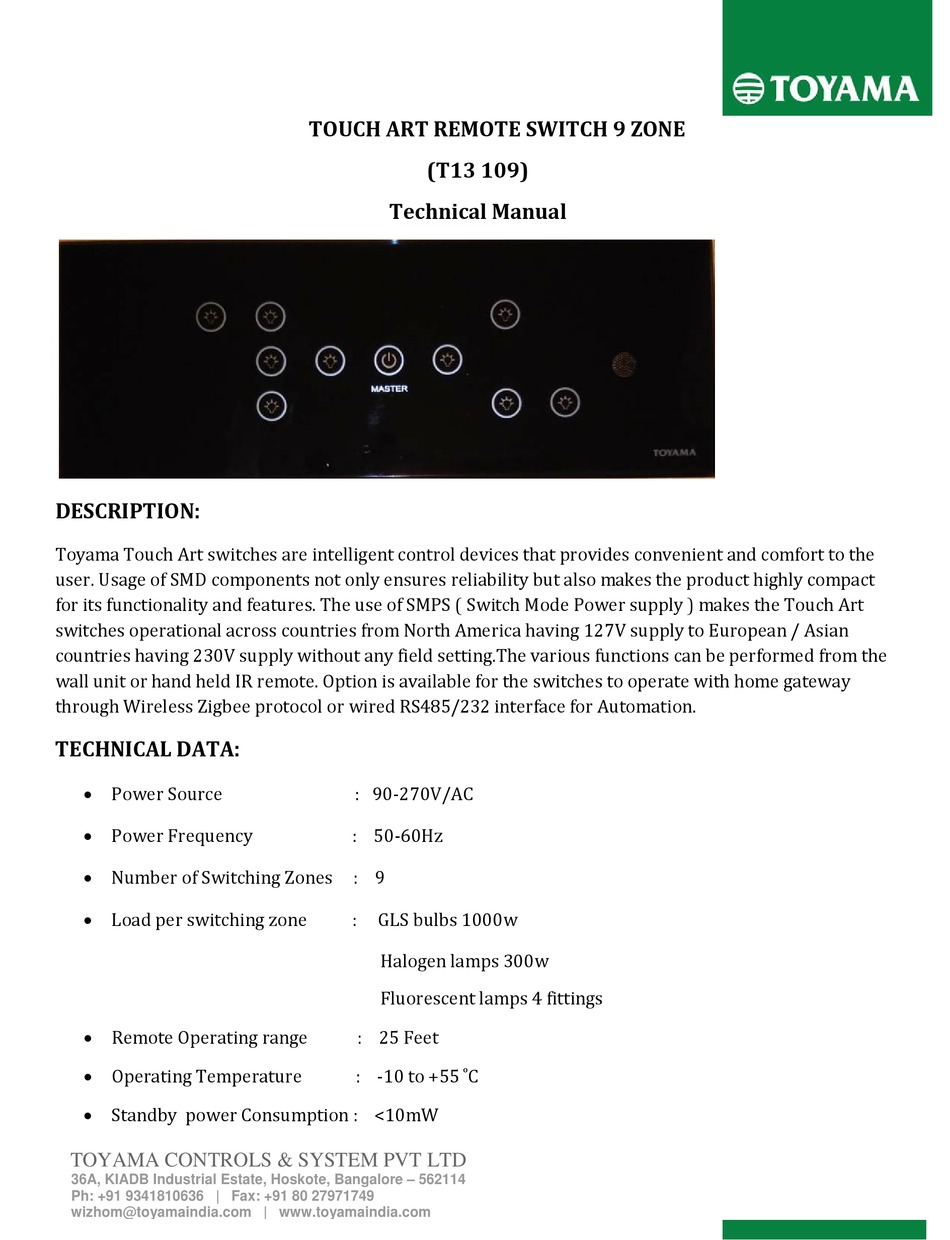

TOUCH ART REMOTE SWITCH 9 ZONE
(T13 109)
Technical Manual
: 90-270V/AC
: 50-60Hz
: 9
:
GLS bulbs 1000w
Halogen lamps 300w
Fluorescent lamps 4 fittings
: 25 Feet
: -10 to +55 ͦ C
Advertisement
Table of Contents
Related Manuals for Toyama T13 109
Summary of Contents for Toyama T13 109
-
Page 1: Technical Manual
Technical Manual DESCRIPTION: Toyama Touch Art switches are intelligent control devices that provides convenient and comfort to the user. Usage of SMD components not only ensures reliability but also makes the product highly compact for its functionality and features. The use of SMPS ( Switch Mode Power supply ) makes the Touch Art switches operational across countries from North America having 127V supply to European / Asian countries having 230V supply without any field setting.The various functions can be performed from the... -
Page 2: Wiring Diagram
• Mounting metal box for the device - 8 Module (75mmX230mmX50mm) • Use 1.5 Sq.mm flexible wires for Phase, Neutral & Load connections TOYAMA CONTROLS & SYSTEM PVT LTD 36A, KIADB Industrial Estate, Hoskote, Bangalore – 562114 Ph: +91 9341810636 | Fax: +91 80 27971749...
