Bluetooth Switch 3+1 Zone(5A/200W/220V)
T13-113B
T13-113B W
SPECIFICATION
Power Source
Number of Switching Zones
Load per switching zone
Number of Dimming Zones
Load per Dimming zone
Remote Operating range
WIRING DIAGRAM
Single Phase Joint
P
220v AC
2
1
T13 113 B
3
P
MADE IN INDIA
Remote
N
4
Blue tooth
N
Bluetooth Switch 7+2 Zone (5A/200W/220V)
T113-127B
T13-127B W
SPECIFICATION
Power Source
Number of Switching Zones
Load per switching zone
Number of Dimming Zones
Load per Dimming zone
Remote Operating range
WIRING DIAGRAM
Single Phase Joint
8
N
220v AC
5
P
9
4
T13 127 B
7
P
6
1
MADE IN INDIA
Remote
2
P
Blue tooth
N
3

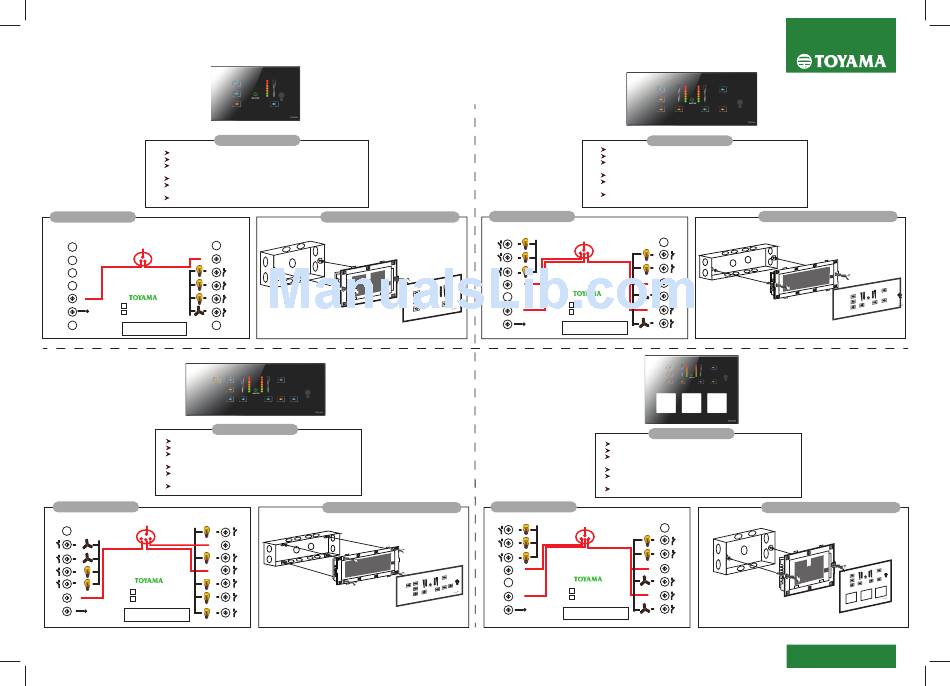

TOUCHART BLUE SWITCH
INSTALLATION MANUAL
: 90-270V/AC
: 3
: GLS bulbs 1000W or Halogen lamps 300W
Fluorescent lamps 4 fittings
: 1
: GLS bulbs 200W or
Halogen lamps 100W or one Fan
: 25 Feet
FIXING SWITCH ON TO METAL BOX
4M
size - 75*140*50
: 90-270V/AC
: 7
: GLS bulbs 1000W or Halogen lamps 300W
Fluorescent lamps 4 fittings
: 2
: GLS bulbs 200W or
Halogen lamps 100W or one Fan
: 25 Feet
FIXING SWITCH ON TO METAL BOX
8M
size - 75*230*50
SPECIFICATION
Power Source
Number of Switching Zones
Load per switching zone
Number of Dimming Zones
Load per Dimming zone
Remote Operating range
WIRING DIAGRAM
N
Single Phase Joint
3
220v AC
6
2
7
1
P
T13 125 B
P
4
MADE IN INDIA
Remote
P
P
Blue tooth
5
N
SPECIFICATION
Power Source
Number of Switching Zones
Load per switching zone
Number of Dimming Zones
Load per Dimming zone
Remote Operating range
WIRING DIAGRAM
N
Single Phase Joint
3
220v AC
6
2
7
1
T13 125 B
P
P
4
MADE IN INDIA
Remote
P
P
Blue tooth
N
5
Bluetooth Switch Hybrid 5+2 Zone (5A/200W/220V)
T13H-125B
T13H-127B W
: 90-270V/AC
: 5
: GLS bulbs 1000W or Halogen lamps 300W
Fluorescent lamps 4 fittings
: 2
: GLS bulbs 200W or
Halogen lamps 100W or one Fan
: 25 Feet
FIXING SWITCH ON TO METAL BOX
6M
size - 75*210*50
Bluetooth Switch Hybrid 5+2 Zone (5A/200W/220V)
T13H-125B
T13H-125B W
: 90-270V/AC
: 5
: GLS bulbs 1000W or Halogen lamps 300W
Fluorescent lamps 4 fittings
: 2
: GLS bulbs 200W or
Halogen lamps 100W or one Fan
: 25 Feet
FIXING SWITCH ON TO METAL BOX
12M
size - 135*210*50
