Install and Operation
Instructions
MDNET Module

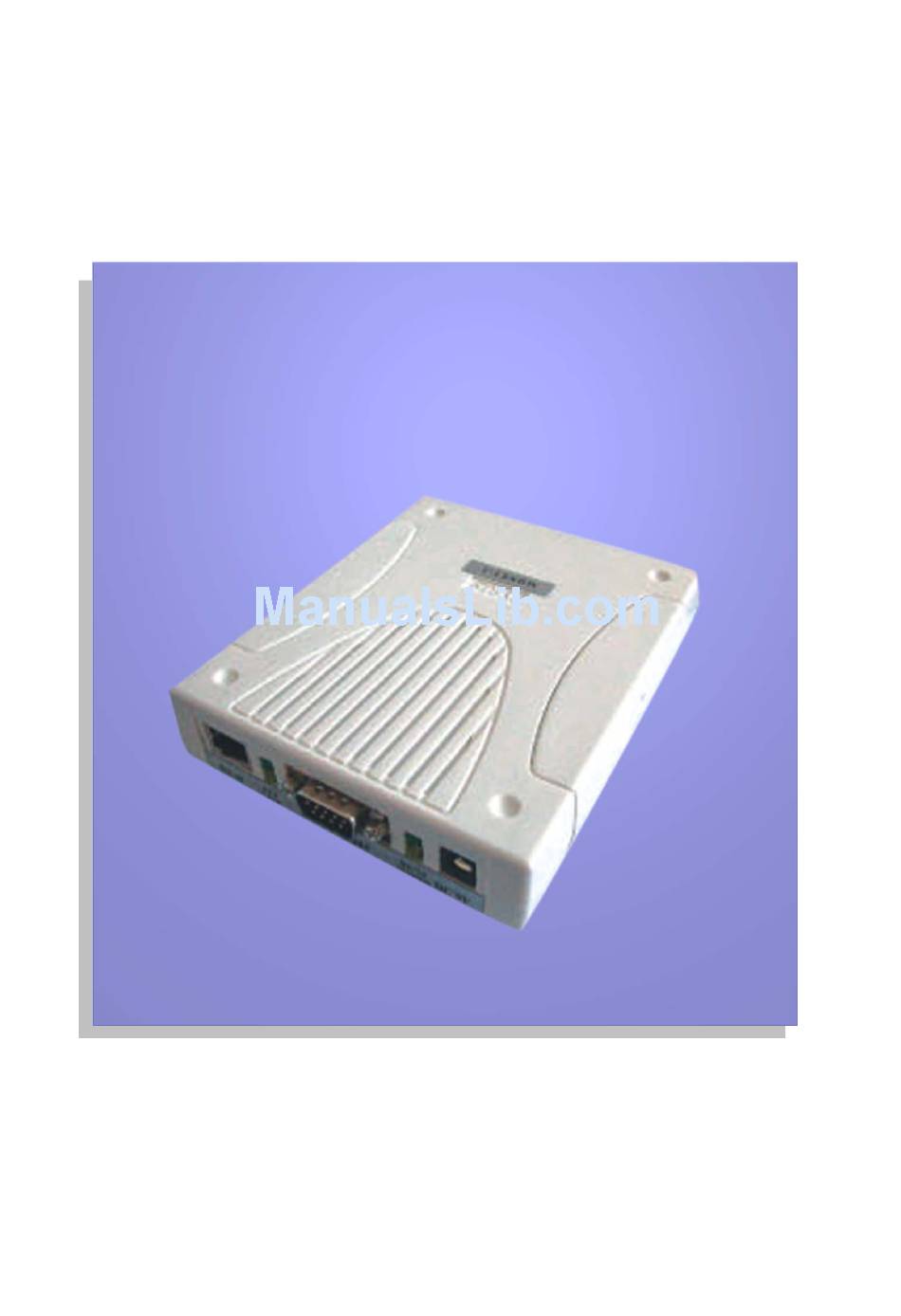

Ethernet to RS-232/RS-485 Converter
Auto-detecting 10/100Mbps Ethernet
Baud rate 4,800-115,200 bps
SYRIS Technology Corp.
ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd.
Taichung, Taiwan (403)
TEL : +886-4-2207-8888
FAX : +886-4-2207-9999
E-Mail : service@syris.com
Website : http://www.syris.com
May 25, 2004 Ver:2.00
Advertisement
Related Manuals for SYRUS MDNET
Summary of Contents for SYRUS MDNET
- Page 1 Install and Operation Instructions MDNET Module Ethernet to RS-232/RS-485 Converter Auto-detecting 10/100Mbps Ethernet Baud rate 4,800-115,200 bps SYRIS Technology Corp. ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd. Taichung, Taiwan (403) TEL : +886-4-2207-8888 FAX : +886-4-2207-9999 E-Mail : service@syris.com Website : http://www.syris.com...
- Page 2 MDNET WIRING DIAGRAM DB9 Connect PIN define Set to Factory Default (SW1 Hold 5 Second) Function Note IP = 192.168.1.101 No Connect Gateway = 192.168.1.254 RS-232 RX Blue(藍) Netmask = 255.255.255.0 RS-232 TX Violet(紫) RS-232 DTR Orange(橙)No Function IP = 192.168.1.101 Black (黑)
- Page 3 Mode : R : Receive Mode T : Transfer Mode R+T : Receive and Transfer Dual Mode None : No Use Protocol : TCP Sever : PC Connect to Module TCP Client : Module Auto Connect to PC UDP : UDP Mode Click Save Button Module is Auto Reset MDNET Specification Items / Specs MDNET-1 MDNET-95A...
