Install and Operation
Instructions

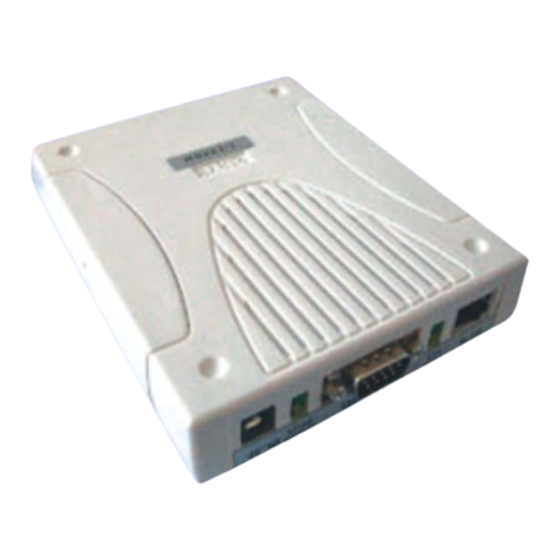

SYLINK-F Module
USB/RS-232 to RS-485 Converter
Baud rate 4,800-115,200 bps
SYRIS Technology Corp.
ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd.
Taichung, Taiwan (403)
TEL : +886-4-2207-8888
FAX : +886-4-2207-9999
E-Mail : service@syris.com
Website : http://www.syris.com
May 25, 2004 Ver:2.00
Advertisement
Related Manuals for SYRUS SYLINK-F
Summary of Contents for SYRUS SYLINK-F

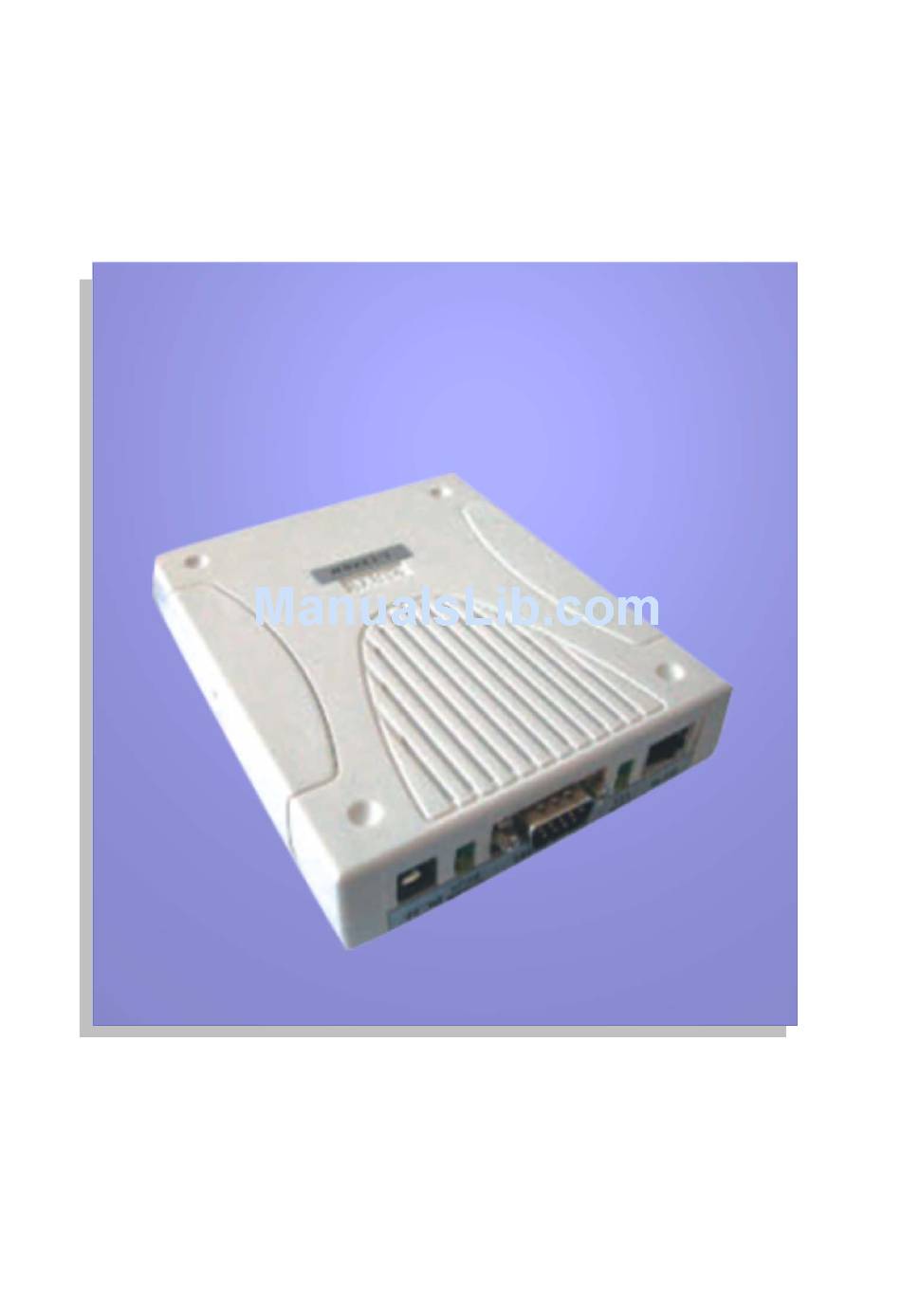

- Page 1 Install and Operation Instructions SYLINK-F Module USB/RS-232 to RS-485 Converter Baud rate 4,800-115,200 bps SYRIS Technology Corp. ADD : 21F-2, No. 12, Sec. 1, Taijunggang Rd. Taichung, Taiwan (403) TEL : +886-4-2207-8888 FAX : +886-4-2207-9999 E-Mail : service@syris.com Website : http://www.syris.com...
- Page 2 SYLINK-F WIRING DIAGRAM SYLINK-F Specification Items / Specs SYLINK-F Interface #1 USB V1.1 Interface #2 RS-232 formats Interface #3 RS-485 formats Baud rate 19,200 bps (4,800、9,600、19,200、38,400、57,600、115,200) Beep Built-in Indicator 8 LED Software Data keypro SYW95A Color Beige Humidity 10% to 95% (Non-condensing) Operating temperature -20℃...
