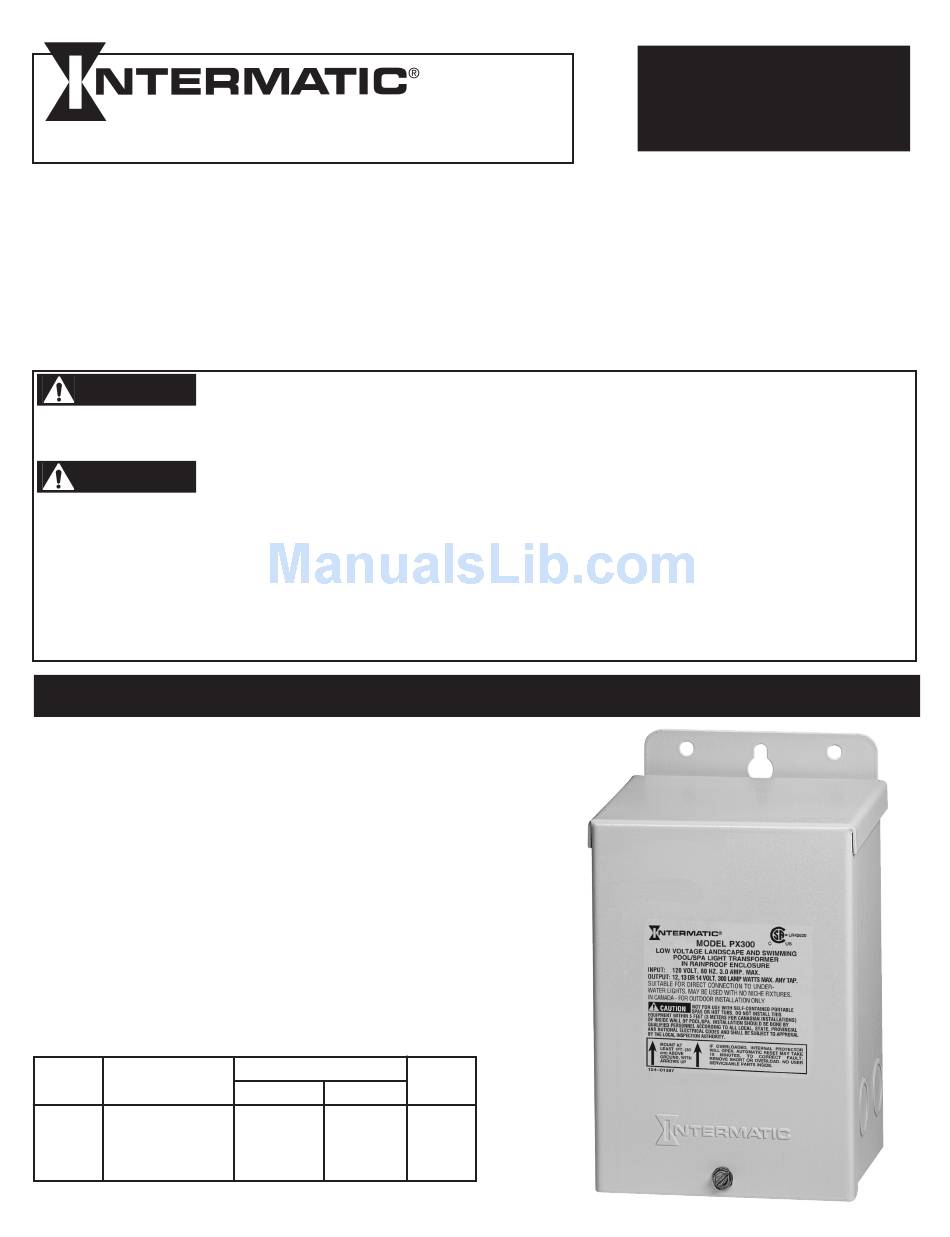

PX SERIES LOW VOLTAGE
LANDSCAPE AND SWIMMING
POOL/SPA LIGHT TRANSFORMERS
Model: PX100 and PX100S - 100 Watt Transformers
INPUT: 120 V.AC, OUTPUT: 12 V.AC or 13 V.AC
Model: PX300 and PX300S - 300 Watt Transformers
INPUT: 120 V.AC, OUTPUT: 12 V.AC, 13 V.AC or 14 V.AC
Suitable for direct connection to underwater lights and for Indoor/Outdoor installations except in CANADA - Low
Voltage Landscape Lighting installation - Outdoor only.
Read and follow the safety instructions listed below and other basic safety precautions before installation or
operation of this transformer and other associated equipment.
Risk of Fire or Electrical Shock!
WARNING
• If installation involves running wire through a building structure, special wiring methods are needed.
• Do not submerge transformer.
• Do not connect two or more transformers in parallel or use with dimmers.
Risk of Injury or Property Damage!
CAUTION
• This transformer must be installed by a qualified electrician, according to the National Electrical Codes (including article
680) or Canadian Electrical Code (including section 68) and, local requirements.
• USE COPPER CONDUCTORS ONLY.
• Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of
conductors.
• Do not install this equipment within 5 feet (3 meters for Canadian installations) of any body of water.
• If transformer is used for direct connection of underwater lights, refer to NEC 680-24(b) or CEC 68-060, 062 and 066 for
further details.
• For Canadian installations, supply circuit must be protected by a ground fault circuit interrupter.
• Installation is subject to approval by the local inspection authority.
These Safety Transformers are specifically designed to
supply 12 volts to pool/spa lights, submersible fixtures
and outdoor garden lights. A grounded shield between
the primary and secondary windings assures safe
operation and the built-in circuit protection will disconnect
power to the transformer in case of defect or overload.
These transformers are suitable for direct connection to
underwater Pool and Spa lights.

SPECIFICATIONS

Enclosure Size: 7 / " (19.4 cm) high x 5
1
4
/ " (11.4 cm) deep. Mounting brackets top and bottom.
x 4
1
2
Enclosure Type: (A) 0.048" corrosion resistant steel with
electrostatically applied beige coating. (B) 0.036" stainless
steel.
Knockouts: Total of ten
(4) bottom, (2) right side, (2) left side, (2) back.
Model Input
60 Hz.
PX100 120V. 1 Amp Max.
PX100S 120V. 1 Amp Max.
PX300 120V. 3 Amp Max.
PX300S 120V. 3 Amp Max.
* Any combination of bulbs, any tap.

GENERAL INFORMATION

/ " (13.3 cm) wide
1
4
/ "- / " combination.
1 3
2 4
Secondary Output Enclosure
Lamp Watts* Volts
100 Max. 12 or 13
100 Max. 12 or 13
300 Max. 12, 13 or 14
300 Max. 12, 13 or 14
Type
A
B
A
B
1
INSTALLATION
OPERATION &
SERVICE MANUAL
