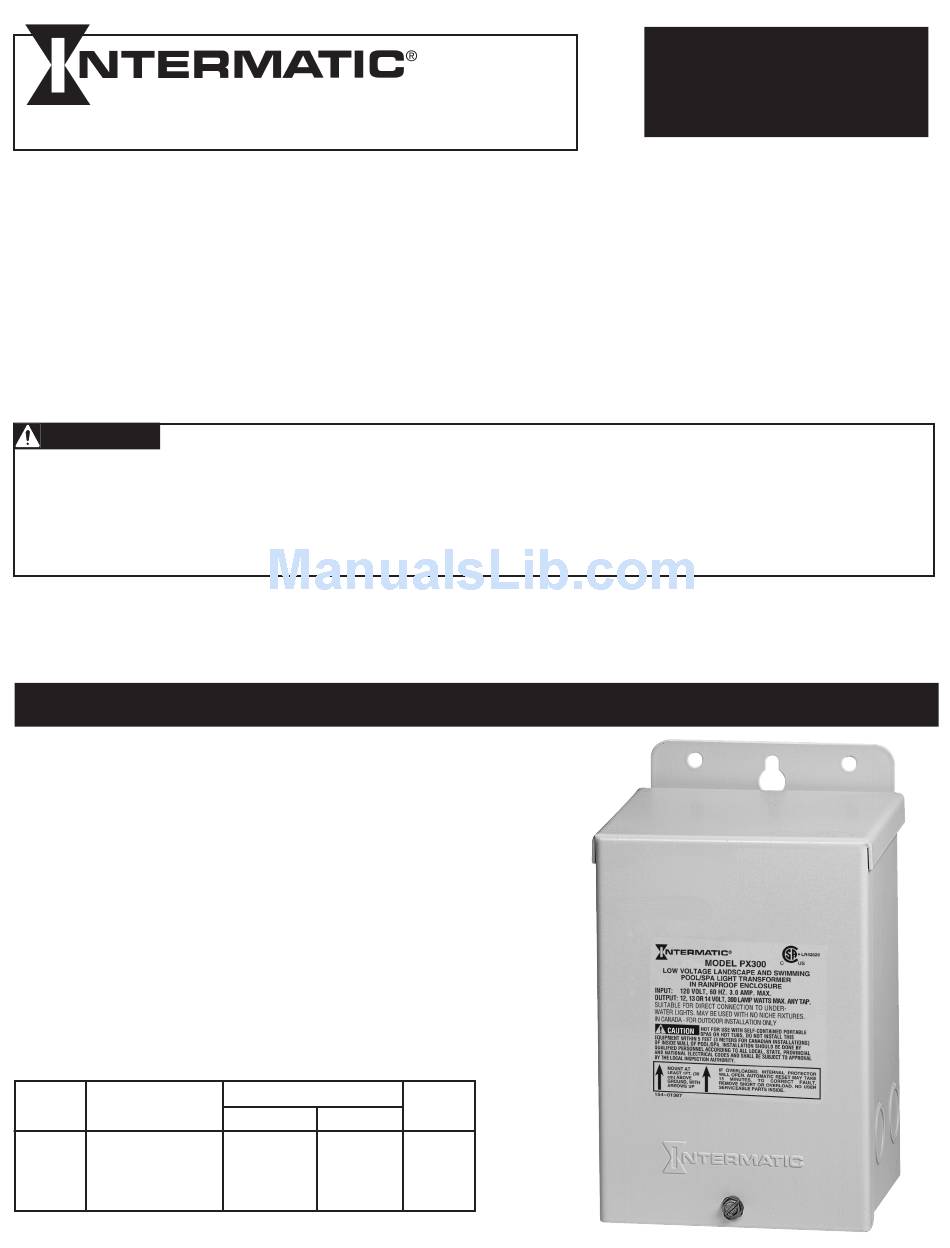

PX SERIES LOW VOLTAGE
LANDSCAPE AND SWIMMING
POOL/SPA LIGHT TRANSFORMERS
Model: PX100 and PX100S - 100 W Transformers
INPUT: 120 VAC, OUTPUT: 12 VAC or 13 VAC
Model: PX300 and PX300S - 300 W Transformers
INPUT: 120 VAC, OUTPUT: 12 VAC, 13 VAC or 14 VAC
Suitable for direct connection to underwater lights and for Indoor/Outdoor installations except in CANADA - Low
Voltage Landscape Lighting installation - Outdoor only.
Read and follow the safety instructions listed below and other basic safety precautions before installation or
operation of this transformer and other associated equipment.
WARNING
Risk of Fire or Electrical Shock
• If installation involves running wire through a building structure, special wiring methods are needed.
• Do Not submerge transformer.
• Do Not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
• Select cable for each secondary output in accordance with tables in this manual.
• Select power source by combining bulb wattage.
• For landscape lighting appliances, low voltage cable shall be buried a maximum of 6 inches (15.2 cm) in order to connect to the
main low voltage cable.
These Safety Transformers are specifically designed to
supply 12 volts to pool/spa lights, submersible fixtures
and outdoor garden lights. The built-in circuit protection will
disconnect power to the transformer in case of defect or
overload. These transformers are suitable for direct
connection to underwater Pool and Spa lights.
SPECIFICATIONS
Enclosure Size: 7
/
1
x 4
/
" (11.4 cm) deep. Mounting brackets top and bottom.
1
2
Enclosure Type: (A) 0.048" corrosion resistant steel with
electrostatically applied beige coating. (B) 0.036" stainless
steel.
Knockouts: Total of ten
(4) bottom, (2) right side, (2) left side, (2) back.
Model
Input
60 Hz.
PX100
120 VAC 1 A Max.
PX100S
120 VAC 1 A Max.
PX300
120 VAC 3 A Max.
PX300S
120 VAC 3 A Max.
* Any combination of bulbs, any tap.
GENERAL INFORMATION
" (19.4 cm) high x 5
4
/
"-
/
" combination.
1
3
2
4
Secondary Output
Voltage (VAC)
Lamp Watts(W)*
100 Max.
12 or 13
100 Max.
12 or 13
300 Max.
12, 13 or 14
300 Max.
12, 13 or 14
/
" (13.3 cm) wide
1
4
Enclosure
Type
A
B
A
B
1
INSTALLATION
OPERATION &
SERVICE MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intermatic PX100
Summary of Contents for Intermatic PX100
- Page 1 SERVICE MANUAL LANDSCAPE AND SWIMMING POOL/SPA LIGHT TRANSFORMERS Model: PX100 and PX100S - 100 W Transformers INPUT: 120 VAC, OUTPUT: 12 VAC or 13 VAC Model: PX300 and PX300S - 300 W Transformers INPUT: 120 VAC, OUTPUT: 12 VAC, 13 VAC or 14 VAC Suitable for direct connection to underwater lights and for Indoor/Outdoor installations except in CANADA - Low Voltage Landscape Lighting installation - Outdoor only.
- Page 2 LIMITED ONE-YEAR WARRANTY If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use;...
- Page 3 PAYSAGER ET DE PISCINE/SPA D’ENTRETIEN BASSE TENSION SÉRIE PX Modèle : PX100 et PX100S - Transformateurs 100 W ENTRÉE : 120 V c.a., SORTIE : 12 V c.a. ou 13 V c.a. Modèle : PX300 et PX300S - Transformateurs 300 W ENTRÉE : 120 V c.a., SORTIE : 12 V c.a., 13 V c.a. ou 14 V c.a.
- Page 4 à la garantie, aller à : http://www.intermatic.com ou composer le 815-675-7000. En raison de son attachement constant à la recherche et à l’amélioration de ses produits, Intermatic, Inc. se réserve le droit de modifier sans préavis les caractéristiques et le contenu de la présente documentation et décline toute responsabilité...
Need help?
Do you have a question about the PX100 and is the answer not in the manual?
Questions and answers
How do you get the lights to change color in my pool
You change the light colors with the Intermatic PX100 by switching the light switch on and off. The transformer itself does not have a switch for changing colors.
This answer is automatically generated
Normal that system does not work after 10 years? Is it a matter of burnt out litht bulb? How do we change it?
