Winkhaus FM.A Operating Instructions Manual

Wireless Contact FM.A
Operating instructions

1. Product description

The FM.A wireless contact is a visible,
energy self-sufficient radio contact, which
is fixed to the window. It is visibly installed
on the window frame, enabling detection
of opening and closing procedures of a
window in combination with a magnet
attached to the sash. After the teaching
process the signal is wirelessly transmitted
to a subsequent EnOcean-compatible
component or a subsequent EnOcean-
compatible smart home system, using an
EnOcean radio protocol.
A possible application of the sensor is
heating control.
suitable heater actuators it is possible to
turn the heating down and hence to save
energy when the window is open. Further
solutions include the connection of a relay,
e. g. to activate or deactivate air con-
ditioners or ventilation systems. It is also
possible to control the window by means
of appropriate alarm sensors and control
centres.

2. Scope of delivery

1 x Wireless contact FM.A
2 x Contactor FM.A
2 x Adhesive pad for radio contact FM.A
2 x Adhsesive pad for contactor FM.A
1 x Operating instructions

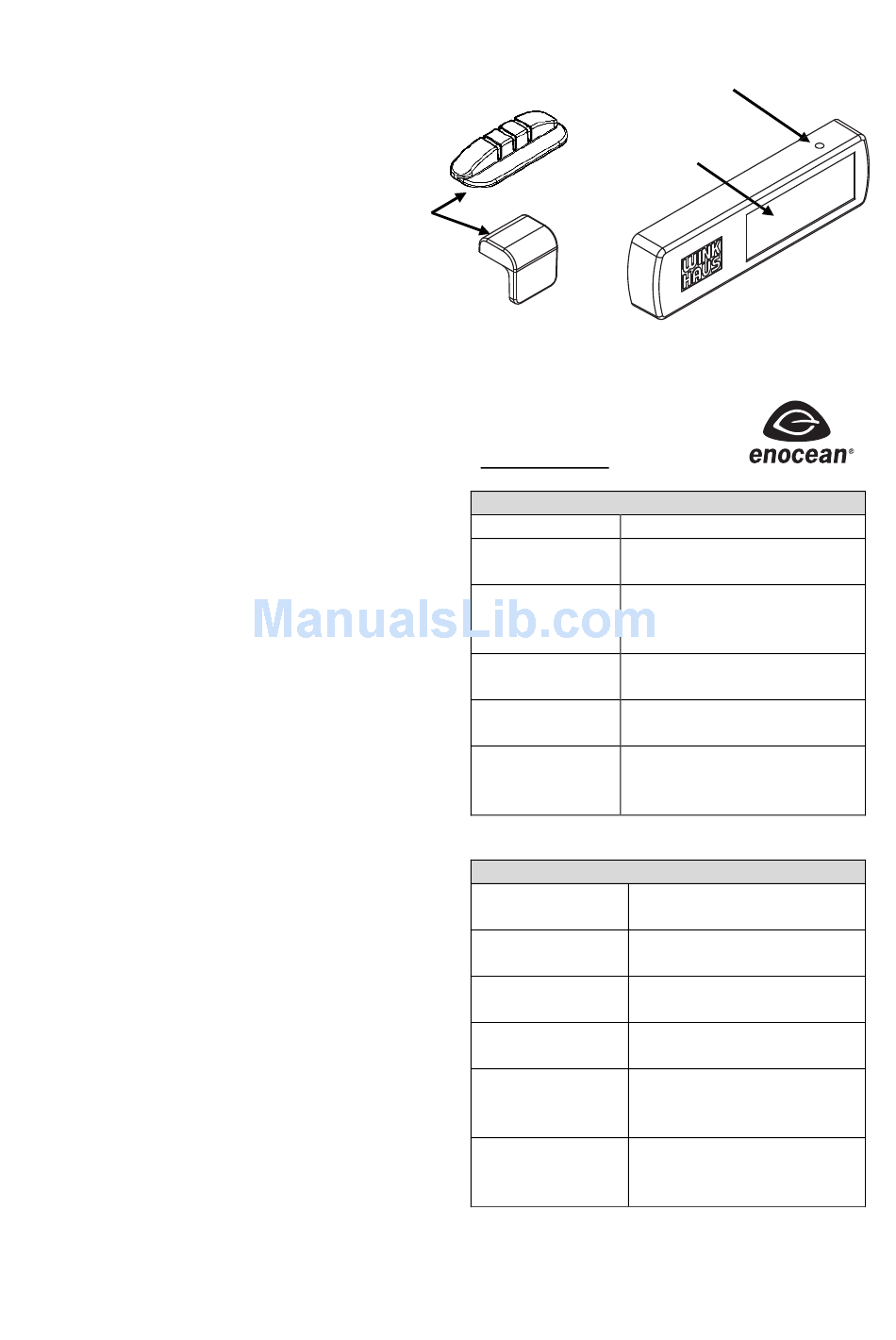

Magnets
In combination with
Teaching
button
Solar module

3. Product information

Technical data

General data
Designation Wireless contact FM.A
Operating 0 °C up to +60 °C
temperature
Suitable for Windows and doors
made of PVC-U, timber
or aluminium
Air moisture 0 % – 93 % relative
humidity, non-condensing
Protection IP 30
type
Storage and +10 °C up to +30 °C,
transport < 60 % relative humidity,
conditions non-condensing
Mechanical data
Dimensions 70 x 9 x 20 mm
sensor W/H/D
Universal 14 x 5.0 x 15 mm
magnet W/H/D 32 x 5.2 x 11 mm
Material Polyamide
(housing)
Fixing type Adhesive bonding to
plane surface
Max. distance approx. 5 mm
of magnet to
radio contact
Fixing place Window or door frame in
well-lit places
