PRYME Radio Product BT-500-H8 User Manual

Connecting the Adapter to Radio
STEP ONE: Connecting to a Two-Way Radio
To connect your PRYMEBLU adapter to a two-way radio, follow these steps:
*Always turn o your two-way radio before connecting or disconnecting your PRYMEBLU adapter.
* Plug the PRYMEBLU adapter into the audio accessory jack of your two-way radio.
* Tighten the retaining screw at the bottom of the adapter to ensure that the PRYMEBLU adapter remains attached
to the radio. DO NOT over tighten.
* You can secure the PRYMEBLU Adapter to your two-way radio or clothing using the Velcro fastener or belt clip.
* Turn on your two-way radio and verify that the radio transmits and receives with the adapter attached.
* Because no wireless audio accessory will yet be paired to the PRYMEBLU Adapter, received signals should be heard over
the radio's internal speaker and transmitted signals will be sent using the radio's internal microphone.
* The Talk button on the PRYMEBLU Adapter will not function as a Push-to-Talk button for your two-way radio until a wireless
audio accessory is successfully paired to the adapter.
3

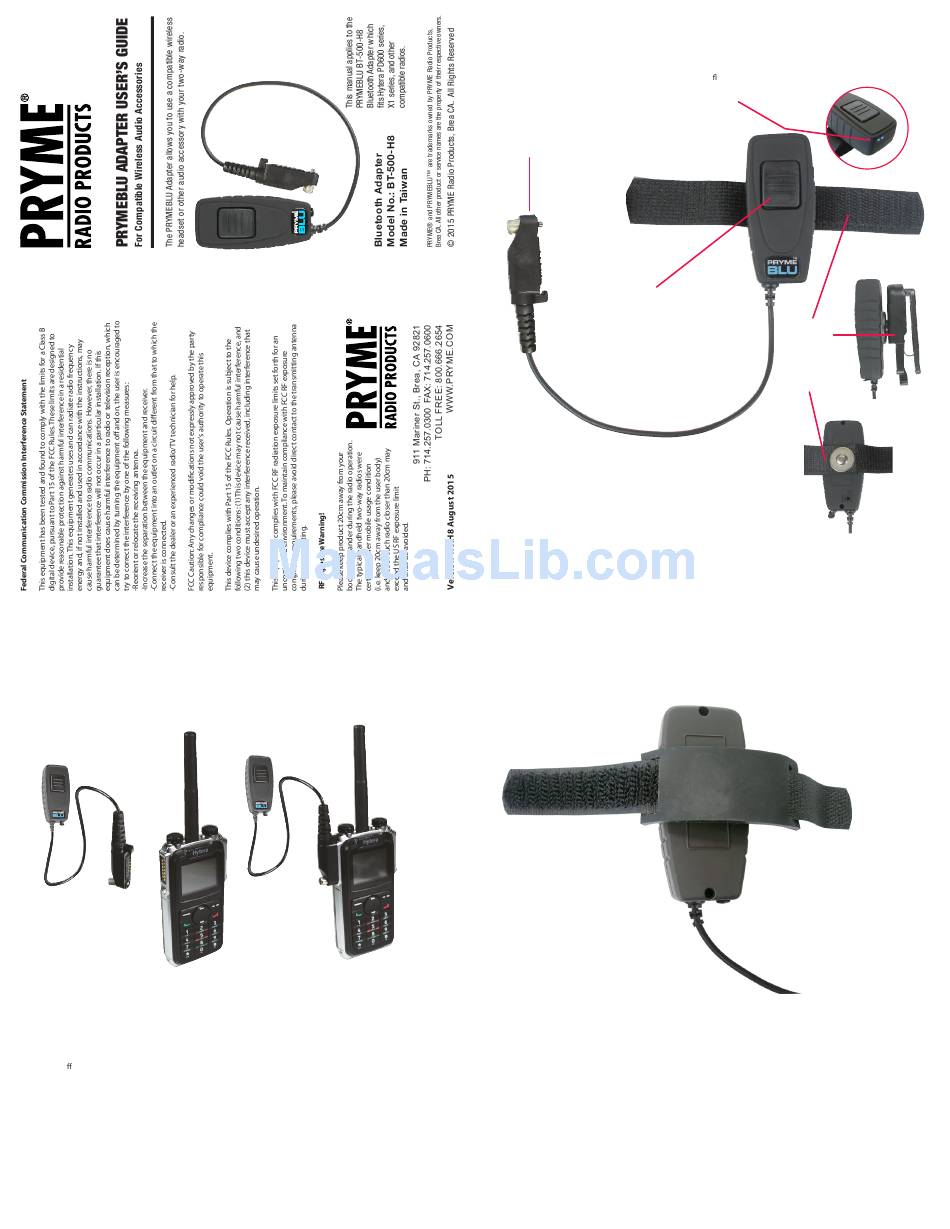

Controls and Connection
Radio Connector
Plugs into the 2-way
radio's Mic/Speaker jack.
Multifunction Talk Switch
Used to place the PRYMEBLU
Adapter in pairing mode.
Once paired with an audio
accessory, this switch is used
to activate the Push-To-Talk
function of the 2-way radio

QUICK START

1. Connect the PRYMEBLU adapter to a compatible 2-way radio.
2. Pair the PRYMEBLU adapter with a compatible wireless audio accessory.
3. Test and use.
Connecting the Adapter to Radio
USING THE FRICTION PAD (Velcro version)
The PRYMEBLU adapter is supplied with a rubber Friction Pad. This pad provides additional protection
and stability when using the Velcro Fastener to attach the adapter to a radio or other location.
To install the rubber Friction Pad do the following:
1. Open the Velcro Fastener on the back of the PRYMEBLU adapter so that the two straps are separated.
2. Align the Friction Pad so that it is centered over the Velcro Fastener on the back of the adapter.
3. Slide one strap of the Velcro Fastener into one of the slots in the Friction Pad and pull the strap through.
4. Slide the other Velcro Fastener strap through the other slot in the Friction Pad.
5. Place the PRYMEBLU adapter in the position you wish to mount it and close the Velcro Fastener.
Status LED
The LED ashes messages that
let the user know the current
status of the PRYMEBLU Adapter
Belt Clip Version
Velcro Fastener
or Belt Clip
Used to attach
the PRYMEBLU
adapter to the
2-way radio
or to the user's
belt or lapel
2
4
Velcro Fastener
Version
