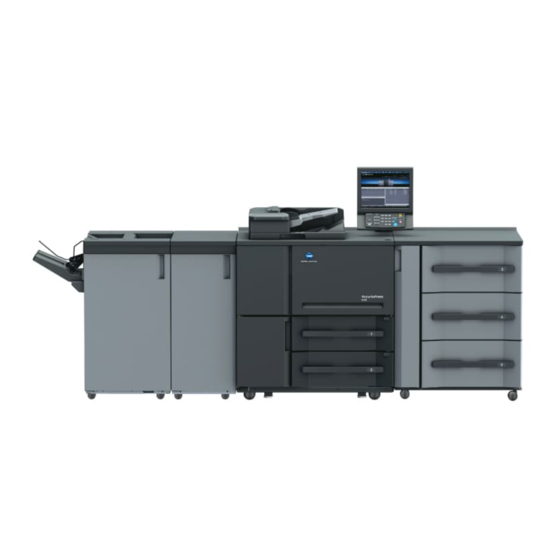

Copy/Print Operation Loading Envelopes in the Tray....................... 4-2 4.1.1 Loading Envelopes in the Tray 4 of Paper Feeder Unit PF-710 ............4-3 Copy Operation ..........................4-4 Print Operation ..........................4-9 Specifications Specifications of Fusing Unit EF-105 .................... 5-2 AccurioPress 6136/6136P/6120 Contents-1... -
Page 3: Introduction
Introduction... -
Page 4: Introduction
To perform replacement tasks safely and reliably, keep this User's Guide and do not lose them. If you lose the document, please contact your service representative. Registered Trademarks KONICA MINOLTA, the KONICA MINOLTA logo, and the symbol are registered trademarks or trademarks of KONICA MINOLTA, INC. AccurioPress/AccurioPrint are registered trademarks or trademarks of KONICA MINOLTA, INC. -
Page 5: Safety Precautions
These are some of major exemplary graphical symbols. Graphic Description Graphic Description Graphic Description symbols symbols symbols Do not General Do not touch Prohibited disassemble Unplug from Instructions Ground/Earth outlet High General Electrical precaution temperature shock hazard AccurioPress 6136/6136P/6120... -
Page 6: Precautions When Replacing Units
It could drop or fall and may cause personal injury. Please pay careful attention to the surroundings when placing the unit removed in the replacement tasks. Protruding portions, cords or wires of the unit may cause falling or personal injury. AccurioPress 6136/6136P/6120... -
Page 7: Power Plug
When checking the inside of the unit for a unit replacement and others, do not touch the locations (around the fusing unit, etc.) which are indicated by a "Caution HOT" cau- tion label. A burn could result. AccurioPress 6136/6136P/6120... -
Page 8: Warning And Caution Labels
DO NOT put your hands or arms in between the main body and the fixing conveyance unit. Touching connecting terminals of electric parts may damage the machine or cause unex- pected trouble. Please do not try to work yourself, but contact your service representative. AccurioPress 6136/6136P/6120... - Page 9 Safety Precautions AccurioPress 6136/6136P/6120...
- Page 10 Installing Fusing Unit EF-105...
-
Page 11: Installing Fusing Unit Ef-105
This bag is not a toy. Replacement Parts Name Shape Q’ty Fusing Unit EF-105 Side auxiliary guide * Positioning screw * *: Packaged together with the Paper Feeder Unit PF-710. AccurioPress 6136/6136P/6120... -
Page 12: Installation Procedures
[1] to the left, then turn the lever M4 [2] to the right. Pull out the ADU drawer [3]. % When the machine is not powered, the lever M4 cannot be turned unless its lock is released. Open the reversal output part [1]. AccurioPress 6136/6136P/6120... - Page 13 Fusing Unit EF-105 [3] to the correct position. Slide the Fusing Unit EF-105 in the direction of the arrow un- til it reaches to the rear end. Push the lock screw (purple) [1], then tighten by rotating in the direction of the arrow. AccurioPress 6136/6136P/6120...
- Page 14 M4 [2] in the direction of the arrow. Close the front door. Store the removed fusing unit in the empty packaging of Fusing Unit EF-103. 7CAUTION Please wait until the fusing unit gets cold before storing it in the packaging. AccurioPress 6136/6136P/6120...
-
Page 15: Installing Parts In The Tray (When Paper Feeder Unit Pf-710 Is Installed)
Pull out tray 4. Move the 2 small size guides (2 pieces) to the positions in the picture and remove the 4 screws (2 screws for each position). Install the positioning screws (2 screws for each posi- tion). AccurioPress 6136/6136P/6120... - Page 16 % If the auxiliary guides are installed on the side guides, pull them up to remove them. The positioning screws (4 pieces) installed on the side guides are not required to be removed. Push in tray 4 until it locks into place. AccurioPress 6136/6136P/6120...
- Page 17 Removing Fusing Unit EF-105...
-
Page 18: Removing Fusing Unit Ef-105
NOTICE Trays cannot be withdrawn when the machine is not powered. Plug the power cord of the machine into the outlet, turn on the main power switch, then the sub power switch before removing parts from the tray. AccurioPress 6136/6136P/6120... -
Page 19: Copy/Print Operation
Copy/Print Operation... -
Page 20: Loading Envelopes In The Tray
It is recommended to use L-seam or side seam envelopes; the print results may be blurred if tabs overlap with the print side. Reference For details on how to load paper in the tray, refer to the HTML user's guide. AccurioPress 6136/6136P/6120... -
Page 21: Loading Envelopes In The Tray 4 Of Paper Feeder Unit Pf-710
Align the side guides and rear guide to the edge of the envelopes. NOTICE Do not apply excessive force when moving the side guides. Otherwise, the guides may be damaged. Push in tray 4 until it locks into place. AccurioPress 6136/6136P/6120... -
Page 22: Copy Operation
5-2. The print side is automatically limited to simplex, and the output side to Face Up. Press [Paper Setting] on the Machine Screen. Select the [Tray4], and then press [Recall]. AccurioPress 6136/6136P/6120... - Page 23 % Enter the width and length of the envelopes. Press [(1)], then enter the width (size in crosswise di- rection) of the envelopes loaded in the tray. Similarly, press [(2)] and enter the length (size in feeding direction) of the envelopes. AccurioPress 6136/6136P/6120...
- Page 24 % Make other paper settings as necessary. When all the setting is completed, press [OK] . % Press [Close] to return to the Machine Screen. Place the original on the original glass or ADF. Press the [COPY] tab to display the Copy Screen. Select the [Tray4]. Choose the Simplex/Duplex setting. AccurioPress 6136/6136P/6120...
- Page 25 % The items automatically set for Face/Order vary depending on whether the original is placed on the original glass or ADF. In either case, select [Face Up] for Face and [1 to N] for Order. Press [OK] on the Output Setting Screen to return to the Copy Screen. Make other copy settings as necessary. AccurioPress 6136/6136P/6120...
- Page 26 Copy Operation % If the size of the original is custom, make the custom size setting in the Original Setting. For details on the setting, refer to the HTML user's guide. Press Start on the. control panel. AccurioPress 6136/6136P/6120...
-
Page 27: Print Operation
Click [Custom Size...] for the paper size and enter the size of the envelope. % Provide all the necessary information, and then click [OK]. % For details of the envelope size, see Section 5 "Specifications.” Click [OK] at the bottom of the window to start printing. AccurioPress 6136/6136P/6120... - Page 28 % For details of the envelope size, see Section 5 "Specifications.” Select [1-Sided] for "Print Type". Select [Face Up] for [Output Order]. Click [OK] at the bottom of the Advanced Options window. Click [OK] at the bottom of the Printing Preferences window to start printing. AccurioPress 6136/6136P/6120 4-10...
- Page 29 Click [Custom Size...] for the paper size and enter the size of the envelope. % Provide all the necessary information, and then click [OK]. % For details of the envelope size, see Section 5 "Specifications." Click [OK] at the bottom of the window to start printing. AccurioPress 6136/6136P/6120 4-11...
-
Page 30: Specifications
Specifications... -
Page 31: Specifications Of Fusing Unit Ef-105
For other output options, please contact your service representative. Dimensions 170 (W) e 613 (D) e 225 (H) mm (Fusing unit: excluding projection portions) Weight 17 kg Power source 200VAC, 5 VDC (supplied from the main body) Power consumption 2,700 W AccurioPress 6136/6136P/6120... - Page 32 http://konicaminolta.com A9JT-EF-E-00 2018. 1 © 2018...
