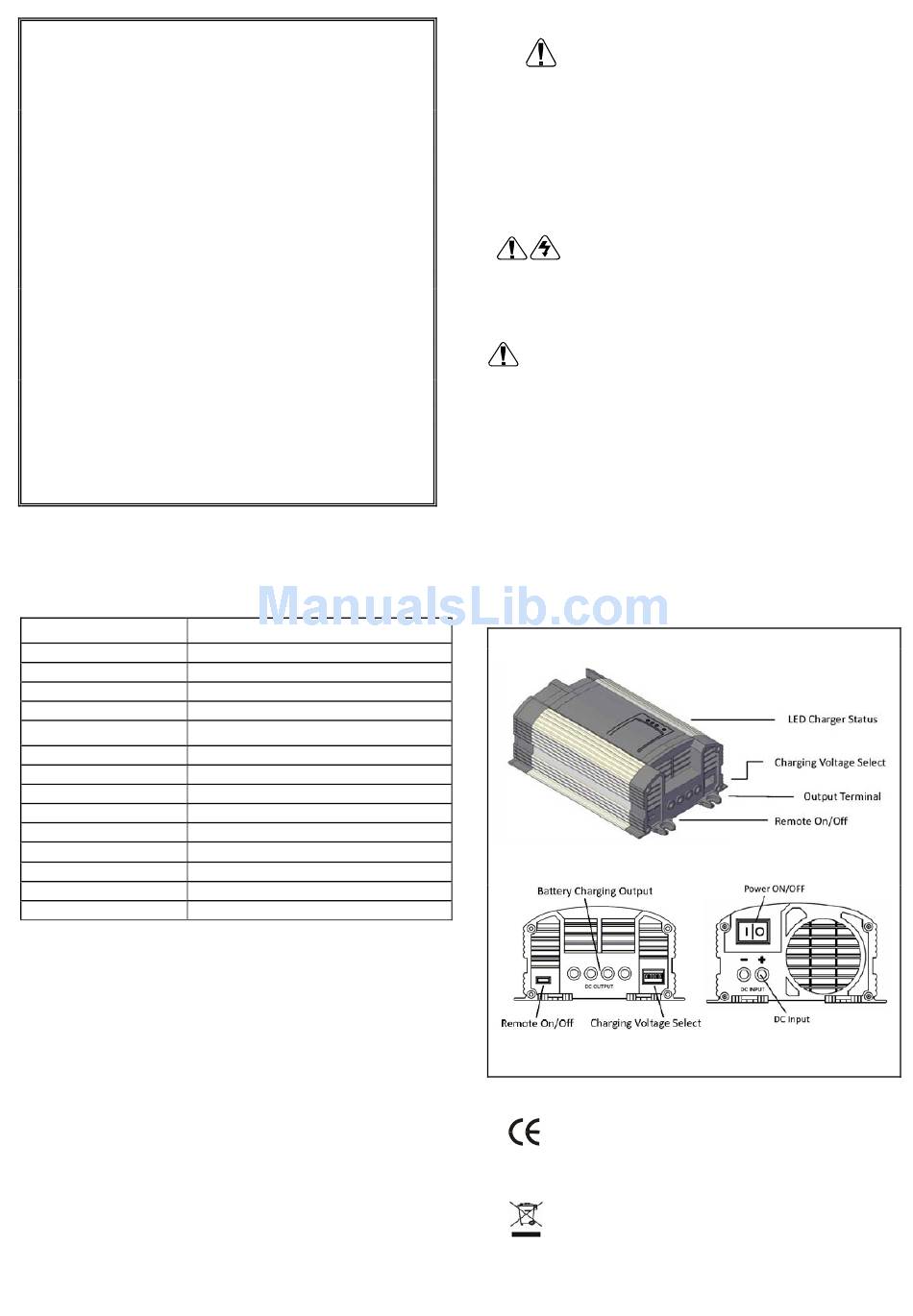

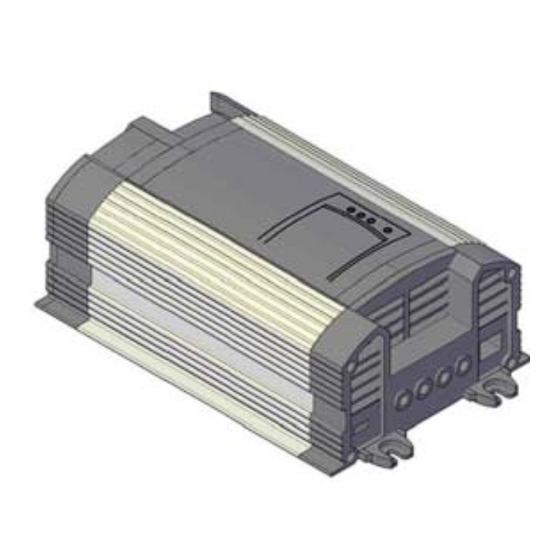

Motormate SDC-1130A Instruction Manual

DC-DC Isolated
4-stage
Boost Charger
SDC-1130A

INSTRUCTION MANUAL

Please read this instruction manual carefully
before operating the device.
Specification
MODEL
Input Voltage
Bulk / Absorption Charging
Float Charging
Power Supply
Max. DC output current
Efficiency up to
Output short circuit
Battery reverse polarity
Input to output fully isolated.
Output terminal
Operation temperature
Ventilation
Weight (kg)
Dimensions (mm)
Specifications subject to change without notice.
SDC-1130A
12VDC (10 ~ 15.5VDC operative)
14.2V / 14.6V / 14.8V
13.2V / 13.5V / 13.8V
13.2V / 13.5V / 13.8V
30A
90%
Yes
DC fuse
Yes
2
0°C to 40°C
Cooling Fan, thermal controlled
1.3
230 x 140 x 80

Important Information!

Thank you for purchasing the DC-DC 4 stage boost
charger.
Please read this instruction manual carefully before
operating the device. Keep this manual in a safe place for
future reference. This instruction manual is part of the
product. It must be handed over along with the device if it
is passed on to a third party.
WARNING! Risk of Electric Shock!
Do not open the device if it has been connected to the
battery or DC power source.
Warranty only covers the cost of parts and labor for
the repair service within the warranty period. Warranty will
not apply where the device has been misused, altered,
neglected, improperly installed, or physically damaged,
either internally or externally or damaged from improper
use or use in an unsuitable environment. We shall not be
liable for damages, whether direct, incidental, special, or
consequential, or economic loss even though caused by
negligence, or other fault. If the device requires warranty
service, please return it to the place of purchase along
with a copy of the receipt with purchasing date.
This device has been CE tested and
conforms to the applicable directives and
standards.
Disposal
When the device has become unusable, dispose of
it in accordance with the applicable disposal
regulations.
