SkylinkHome TC-318-7 User Manual

7-Button Remote
10-Button Remote
14-Button Remote

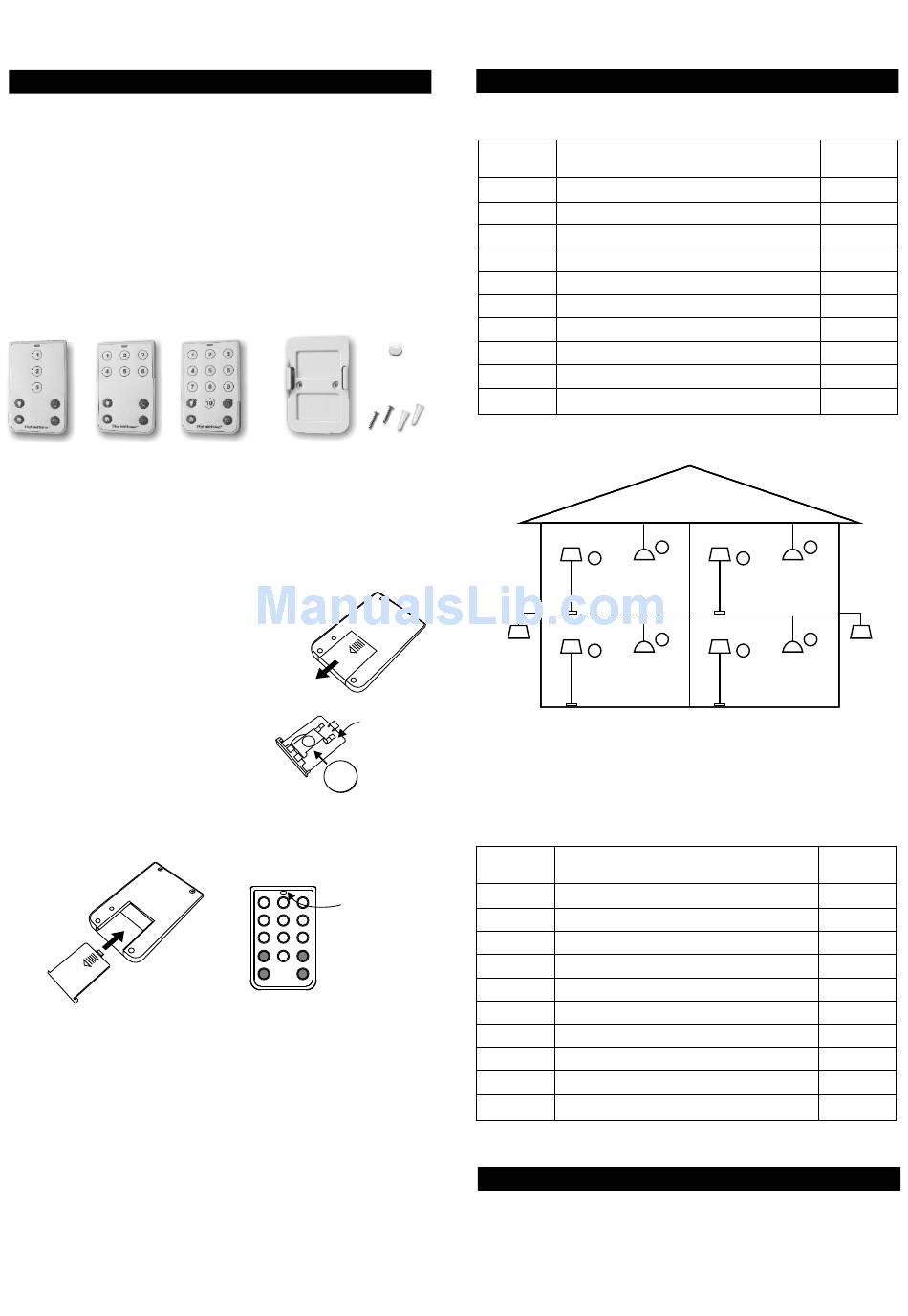

1. INTRODUCTION
Thank you for your purchase of a SkylinkHome , Deluxe Remote,
Model TC-318-7 / TC-318-10 / TC-318-10 / TC-318-14. This transmitter
which is also called transmitter in this document allows you to wirelessly
operate SkylinkHome receiver modules. TM
All wireless signal communications within the SkylinkHome
based on rolling code technology to ensure highest security is used.
The following items are included in this package:
- One of TC Series Remotes
- Mounting Bracket and Accessories
- Lithium Battery CR-2032
- User's Instructions
7-Button 10-Button
Remote Remote
TC-318-7 TC-318-10
Installing Battery
The transmitter is powered by a lithium battery CR-2032. Follow the
instructions below to install the battery to the transmitter.
1. Slide out the battery door from the unit.
2. Insert the CR-2032 lithium battery to the
battery holder. Positive side facing up.
3. Insert the battery door to the transmitter.
The red LED on the front of the unit will
be on for 1 second.
Insert battery
door with battery
Before you can control the lights (or small appliances, etc.) with the trans-
mitter, you may need to program different buttons on the transmitter to
various receiver modules. It is a lot easier if you plan in advance of how
to setup your system. For example, you may list out the lights and their
locations with zone grouping that you plan to include in your lighting system.
The Deluxe Transmitter can transmit 3 types of command:
1) Individual Operation - Operates one light only, i.e. the ceiling light in
the family room
2) Zone Operation - Operates one specific zone or area, which consists
of multiple lights, i.e. all lights in the kitchen
3) All On / All Off - Operates all lights in the premises, i.e. all lights in the
house connected with SkylinkHome lighting modules.
Model TC-318-7
Model TC-318-10
Model TC-318-14
TM
TM
14-Button Mounting
Remote Bracket
TC-318-14
Slide out
battery door
+
+
CR2032
LED on for
1 second
TM
Example :
Number
Button
system are
1
2
3
4
5
6
7
8
Lithium
9
battery
10
Screws and
anchors
Front Yard
Zone 5
Battery door
with holder
You may use the following table to fill in the lights or small appliances
Positive
you would like to control and their zone numbers, this will give you a
side up
clear direction during the programming process.
Number
Button
2. PROGRAMMING TRANSMITTERS TO RECEIVER MODULE
In order to operate the receiver module remotely with a transmitter, it
must be programmed to the receiver module. Follow the instructions
below.
1. INTRODUCTION (CONT)
Light
Family Room Floor Light
Family Room Ceiling Light
Kitchen Floor Light
Kitchen Ceiling Light
Bedroom Floor Light
Bedroom Ceiling Light
Master Bedroom Floor Light
Master Bedroom Ceiling Light
Front Yard Light
Back Yard Light
6
5 7
Bedroom Master Bedroom
Zone 3
2
1 3
Family Room
Zone 1
Light
Zone
Zone 1
Zone 1
Zone 2
Zone 2
Zone 3
Zone 3
Zone 4
Zone 4
Zone 5
Zone 5
8
Zone 4
4
Back Yard
Zone 5
Kitchen
Zone 2
Zone
