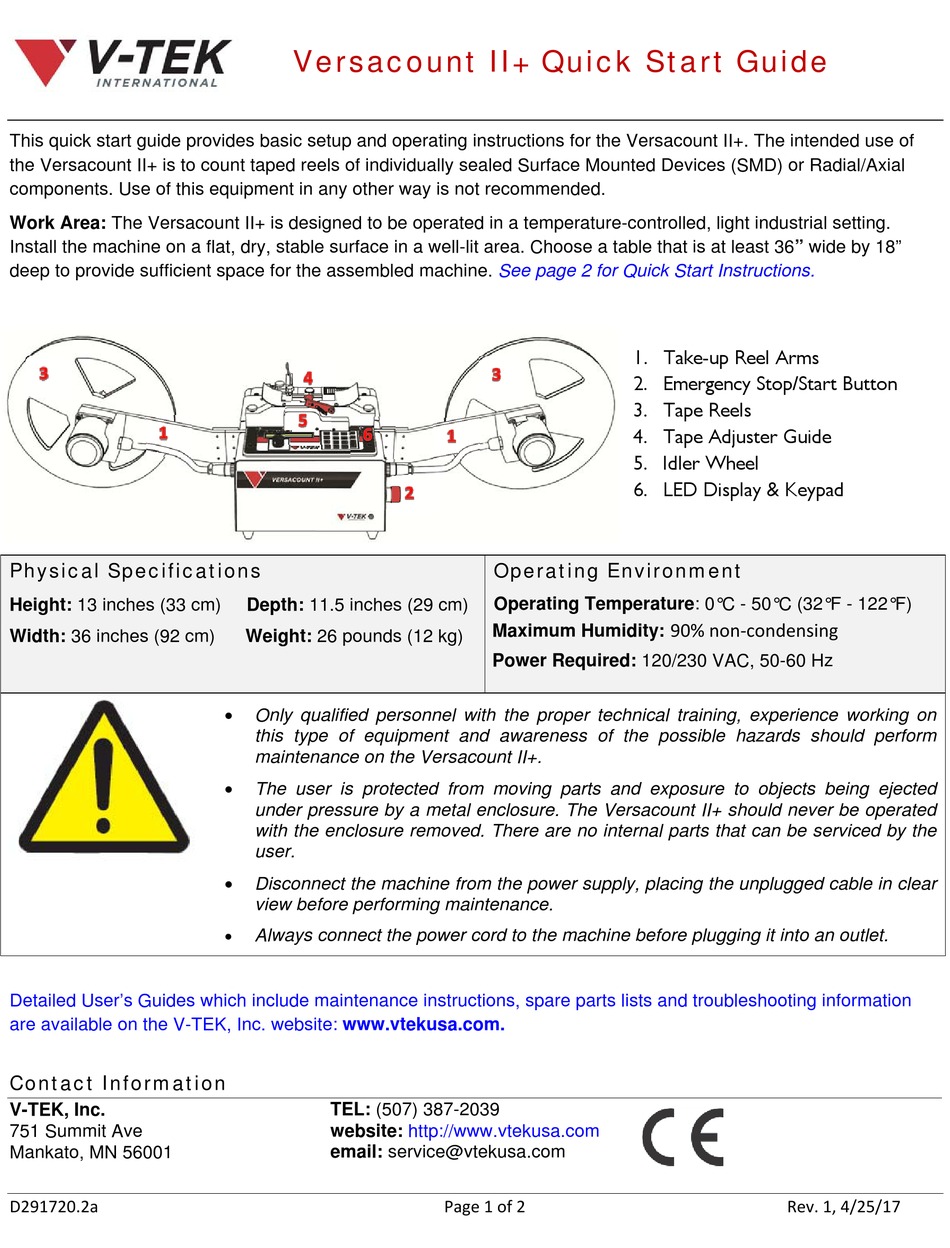

V-TEK Versacount II+ Quick Start Manual

This quick start guide provides basic setup and operating instructions for the Versacount II+. The intended use of
the Versacount II+ is to count taped reels of individually sealed Surface Mounted Devices (SMD) or Radial/Axial
components. Use of this equipment in any other way is not recommended.
Work Area: The Versacount II+ is designed to be operated in a temperature-controlled, light industrial setting.
Install the machine on a flat, dry, stable surface in a well-lit area. Choose a table that is at least 36" wide by 18"
deep to provide sufficient space for the assembled machine.
Physical Specifications
Height: 13 inches (33 cm)
Width: 36 inches (92 cm)
Detailed User's Guides which include maintenance instructions, spare parts lists and troubleshooting information
are available on the V-TEK, Inc. website: www.vtekusa.com.
Contact Information
V-TEK, Inc.
751 Summit Ave
Mankato, MN 56001
D291720.2a
Versacount II+ Quick Start Guide
Depth: 11.5 inches (29 cm)
Weight: 26 pounds (12 kg)

Only qualified personnel with the proper technical training, experience working on
this type of equipment and awareness of the possible hazards should perform
maintenance on the Versacount II+.

The user is protected from moving parts and exposure to objects being ejected
under pressure by a metal enclosure. The Versacount II+ should never be operated
with the enclosure removed. There are no internal parts that can be serviced by the
user.

Disconnect the machine from the power supply, placing the unplugged cable in clear
view before performing maintenance.

Always connect the power cord to the machine before plugging it into an outlet.
TEL: (507) 387-2039
website:
email: service@vtekusa.com
See page 2 for Quick Start Instructions.
Operating Environment
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Maximum Humidity:
Power Required: 120/230 VAC, 50-60 Hz
http://www.vtekusa.com
Page 1 of 2
1. Take-up Reel Arms
2. Emergency Stop/Start Button
3. Tape Reels
4. Tape Adjuster Guide
5. Idler Wheel
6. LED Display & Keypad
90% non‐condensing
