Summary of Contents for Rompa Sound to Sight Showtime

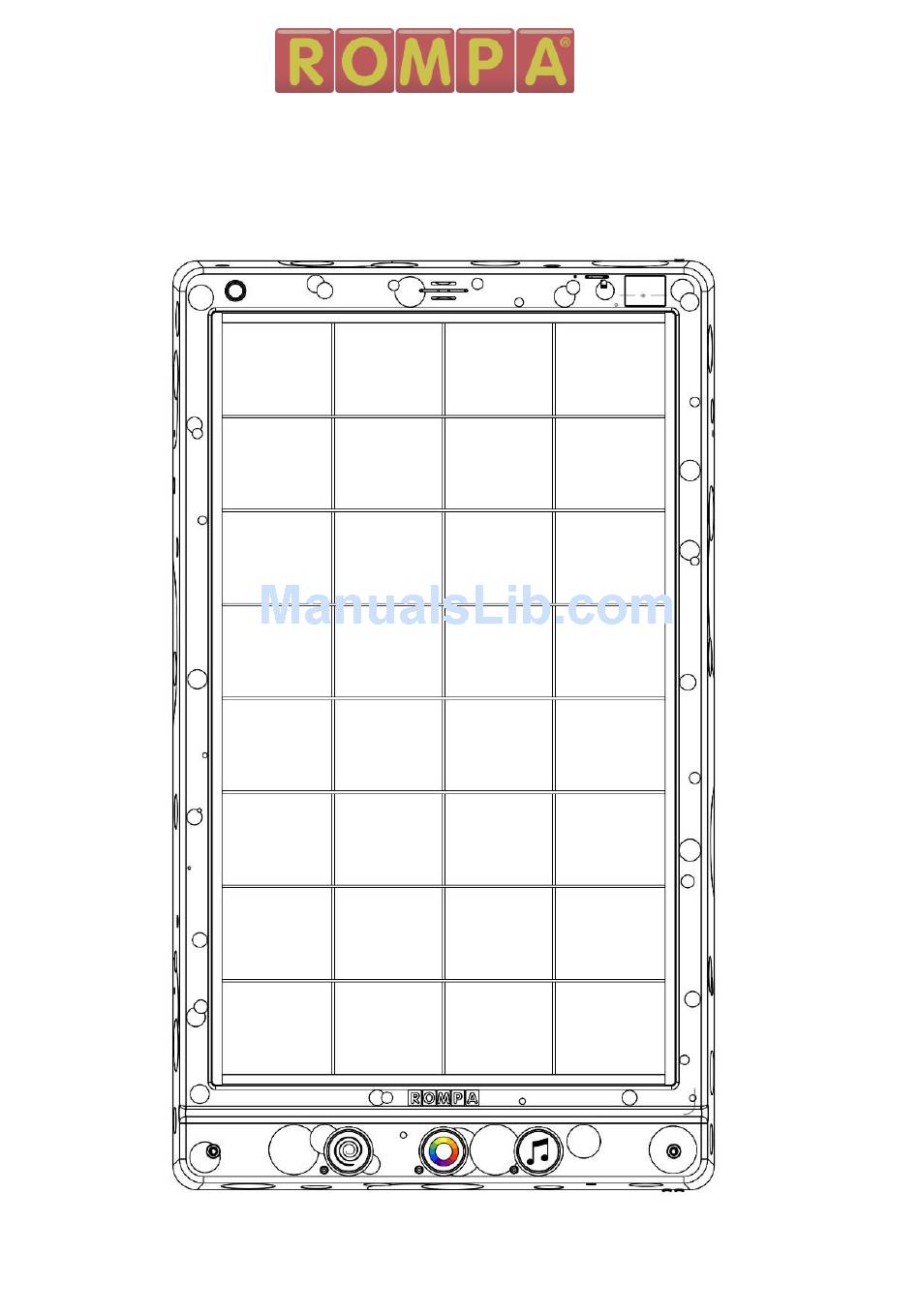

- Page 1 Sound to Sight Showtime™ Instruction Manual Sound to Sight Showtime™ 22870, March 2018 Copyright ROMPA®Ltd...
-
Page 2: Table Of Contents
Contents At a Glance Panel Overview Colour Description Contents Technical Specification What’s in the Box Compatible Rompa® Products Operation Modes Touch Screen Illuminated Push Buttons External Switches Microphone Input Shapes, Patterns and Colours Rompa® Wireless Operation Installation Installing Wall Mount Brackets &... -
Page 3: At A Glance
At a Glance Panel Overview... -
Page 4: Colour
Colour The Panel is available in 4 colours: Black, White, Cream and Blue... -
Page 5: Description
Description Sounds are turned into dazzling shows of light, colour and movement. The panel responds to both changes in pitch and volume to create an ever changing sensory experience. Engaging, interactive and rewarding. Encourages learning, exploration and fosters a feeling of empowerment. Why not try whistling humming or clapping? Technical Specification Weight:... - Page 6 Dimensions (All dimensions in mm)
- Page 7 Contents x1 Sound to Sight Showtime™ x2 High Quality Microphone x2 Wall Mounting Bracket x4 M4 Screws x1 UK Mains Lead x1 US Mains Lead x1 EU Mains Lead Compatible Rompa® Products 20848 Sensory Magic® 21098 Sensory Magic Portable® 19847 Deluxe 8 Colour Wirefree Controller...
-
Page 8: Operation
Operation Modes The mode dictates how the panel behaves. The Sound to Sight Showtime™ has 4 modes which can be selected via the touch screen or by plugging in a microphone into the ¼” microphone input: Mode 1: Amplitude and Frequency The panel reacts to both the amplitude and frequency of a sound. -
Page 9: Touch Screen
each microphone respectively. This allows users to race or do a call and response game. Touch Screen The touch screen is intended for the supervisor of the session not the primary user of the panel. The touch screen allows you to control in detail how the panel behaves as well as view statistics of panel usage. - Page 10 Volume Pressing the ‘+’ will increase the volume and pressing ‘-‘ will reduce the volume. Press the Red forward or back buttons to cycle through the other menu options. Media Pressing the ‘play/ pause’ button to play or pause music. Press the ‘skip forward’...
- Page 11 Wireless on or off. With Wireless turned on the panel will respond to other Rompa® compatible wireless products. With wireless turned off it will ignore Rompa® compatible wireless products. Press the Red forward or back buttons to cycle through the other menu...
-
Page 12: Illuminated Push Buttons
Illuminated Push Buttons The Sound to Sight Showtime™ has 3 illuminated push buttons so the user can control the visual and audio effects the panel produces. When pressed each button will flash and a unique sound effect will be triggered. -
Page 13: External Switches
Pattern The panel has 8 patterns which can be selected via the ‘Pattern’ illuminated push button or an external switch plugged into the ‘Colour’ input jack. Colour The panel has 11 colours which can be selected via the ‘Colour’ illuminated push button or an external switch plugged into the ‘Colour’... -
Page 14: Microphone Input
Microphone Input The panel has 2 microphone inputs. To use a microphone with the panel simply plug a microphone into one of the ¼” jack located in the bottom left and bottom right of the panel. When a microphone is inserted the panel will automatically detect its presence and turn to ‘Microphone Mode’. - Page 15 Patterns, Colours and Sound Effects Patterns When selecting a pattern a pre-animation is displayed so you know which pattern is selected and what to expect when using it. Equaliser Vertical – Solid Bar Vertical bars of light move up and down the panel in response to sounds detected.
- Page 16 *This mode is not frequency dependant and will respond in the same way regardless of mode. Random Sound Fill A random sized block of the screen is illuminated each time a sound is detected. When the screen is completely illuminated an auditory and visual reward is given. The blocks then fade out and the pattern resets.
- Page 17 Yellow Orange Pink Purple White Sound Effect Cartoon Twisting Referee Whistle Cartoon Jump Power Down Knock Arpeggio Harp Organ Clapping Bubbles...
-
Page 18: Rompa® Wireless Operation
Selecting a colour turns the panel the corresponding colour selected. The panel will remain this colour unless a new colour is selected via the panel or a Rompa® wireless controller or the panel is in a passive mode where it continue cycling through colours and patterns after 60... -
Page 19: Installation Installing Wall Mount Brackets & Panel
Installation Installing Wall Mount Brackets & Panel Due to the size of the product it is recommended that two people are required to install the product. Recommended Tools Drill Spirit Level Pencil Tape Measure Appropriate Fixings (All dimensions in mm) - Page 20 1. Unscrew the 4x M4 screws which secure the 2x brackets to the panels. The brackets are secured to avoid any damage during transit. Be sure to place the 4x M4 screws in a safe place as they will be required later.
- Page 21 2. Remove the brackets from the panel by sliding the bracket down and then lift them out of panel. Place the brackets safely to one side as they will be required later.
- Page 22 3. Hold the panel where you would like it to be mounted ensuring it is level. Whilst in position mark where the centre of the bracket mounting holes are on the wall. Do this for all 4x bracket mounting holes. Place the panel safety to the side.
- Page 23 4. Secure both brackets to the wall ensuring the centre of the bracket mounting holes line up with the marks just made ensure the bracket it level when mounting it to the wall. The top bracket mounting holes should line up with the top 2x marks and the bottom bracket mounting holes should line up with the bottom 2x marks.
- Page 24 Please ensure the correct fasteners are used dependant on the construction of wall in question. 5. Clean the wall and brackets from any dust and debris which may have been created whilst mounting the brackets. Place the panel on brackets. To do this have the panel slightly higher than its final resting position.
-
Page 25: Safety
If the product generates abnormal sounds, burning smell or smoke disconnect immediately and contact Rompa® customer services. Do not press and hold the panel push buttons for durations of longer than a minute. Over time this may reduce the life expectancy... -
Page 26: Care And Maintenance
Care and Maintenance Rompa® recommends a soft cloth for dusting and cleaning the panel. Slightly dampening the cloth or use of isopropyl alcohol is recommended for more stubborn stains. Ensure the panel does not become wet. Particular care should be taken around apertures in the chassis and any electronics (touch screen, power button, illuminated push buttons, external switch jacks and microphone input jack). - Page 27 2 and Sound Effects set to on. If troubleshooting does not solve the issue please contact Rompa® Customer Services +44 (0) 1246 211 777 Push Button(s) Ensure panel buttons are not locked via the touch Unresponsive screen.
- Page 28 Sound to Sight Showtime™ 22870, March 2018 Copyright ROMPA®Ltd...
