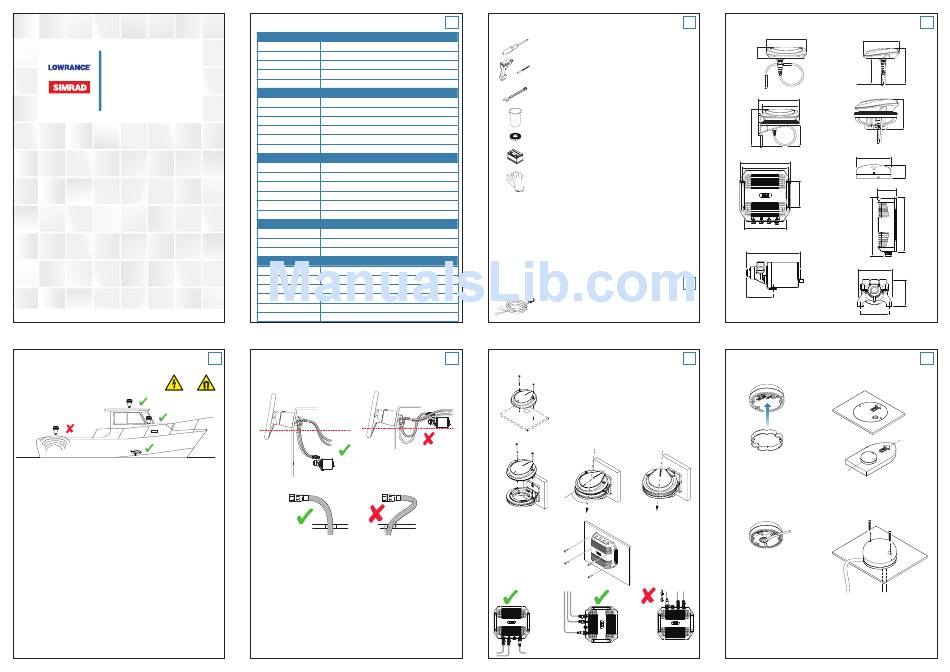

Simrad Pump-1 Installation Manual

Outboard and
DrivePilot
Installation Guide
ENGLISH
PLANNING: Point-1AP and Precision-9 Compass,
Mounting location
Point-1AP
Precision-9
Electromagnetic Interference
Point-1AP and Precision-9
The compasses contain a magnetic heading sensor and should not
be mounted close to any potential magnetic source, and as close
to the vessel's centre of roll and pitch as possible. Refer to technical
specifications.
Potential sources for magnetic/electromagnetic interference include:
Electrical Motors/Magnets/Moving Metal items
•
Outboard Engines
•
• High current electrical sources such as main power cables,
batteries, distribution panels etc.
The Point-1AP compass also comes with a GPS antenna and should
be mounted as far as possible away from disturbing magnetic/
electromagnetic interferences.
Technical specifications
NAC-1
Operating temperature -25 °C to +55 °C (13 °F to 131 °F)
Splashproof, IPx5
Protection
Weight 0.6 kg (1.3 lbs)
Power supply/Load 9-16 V DC/140 mA + drive unit load
Drive: 8 A cont., 16 A for 1 s
Performance
Pump-1
Operating temperature -15 °C to +75 °C (5 °F to 167 °F)
Splashproof, IPx5
Protection
Weight 2.2 kg (4.9 lbs)
Hydraulic thread size 1/4 NPT
Load 5 A at 8 bar (116 psi), 7 A at 24 bar (350 psi)
Performance 0.8 l/min at 24 bar (350 psi)
Point-1AP
Operating temperature -25 °C to +60 °C (13 °F to 140 °F)
Watertight, IPx7
Protection
Weight 0.14 kg (0.31 lbs)
Power supply/Load 9-16 V DC/<100 mA @ 12 V DC
Performance Heading: +/- 3°, Horiz. accuracy: 3 m (9.8 ft)
1 m (3.3 ft)
Compass safe distance
Auto/Stby Button
Operating temperature -25 °C to +55 °C (13 °F to 131 °F)
Splashproof, IPx5
Protection
Weight 0.04 kg (0.09 lbs) (including cable)
Precision-9
-25 to + 65 °C (-13 to + 149 °F)
Operating temperature
Protection IPx7
Weight 165 g (5.8 oz) + 130 g (4.6 oz) (Bracket)
8-16 V/1.4 W
Power supply/Load
Accuracy ± 2 degrees after calibration
Compass safe distance 0.5 m (1.7 ft)
PLANNING: Pump-1, Mounting location
5
FLUID LEVEL
Compatibility information
The hydraulic kit comes with both 1/4 NPT 9/16 UNF fittings and ORB
fittings which make them ideally suited for the following steering
systems:
Teleflex SeaStar HC5345, HC5347, HC5348, HC5358.
•
Teleflex BayStar HC4600, HC4645, HC4647, HC4648, HC4658.
•
• Hynautic K6 Steering Rams
Steering rams from Vetus, Uflex, and Lecomble & Schmitt can also
•
be used.
Note: Newer SeaStar/BayStar helm pumps require the use of ORB
¼
fittings (supplied in the kit).
PLANNING: Tools needed
1
Screwdriver
Drill
Wrench
Cup or can
Tape
Tools to connect power cables to the battery
Gloves (disposable type)
Check the contents
NAC-1 Autopilot computer
•
Point-1AP or Precision-9 Compass
•
Auto/Stby Button
•
NMEA 2000 Network kit
•
• Pump-1
Pump fitting kit
•
PLANNING: Cable lengths
Refer to "WIRING: Wiring diagram" (point 9) to find the
various cable lengths.
MOUNTING: Precision-9
6
Without bracket
With bracket
CORRECT
1 2
MOUNTING: NAC-1
PLANNING: Dimensions
2
119 mm (4.69")
36 mm
(1.42")
133 mm (5.23")
119 mm (4.69")
126 mm
(4.96")
72 mm
(2.83")
204 mm (8.1")
183 mm (7.2")
91 mm
(3.6")
169 mm (6.63")
155 mm (6.1")
3
76 mm (3.0")
MOUNTING: Point-1AP
7
A 1
3
3
C
4
119 mm (4.69")
126 mm
90 mm
(4.96")
(3.54")
90 mm
(3.54")
ø 90 mm (3.5")
38 mm
(1.5")
57 mm
(2.2")
190 mm 180 mm
(7.5") (7.1")
100 mm (4.0")
85 mm
(3.4")
85 mm (3.4")
8
2
B 1 * Ø 19 mm (0.75")
2 * Ø 3 mm (0.12")
Note the mounting
direction!
4
D
