CE870™ Instant Issuance System
Quick Install Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CE870 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DataCard CE870

Summary of Contents for DataCard CE870

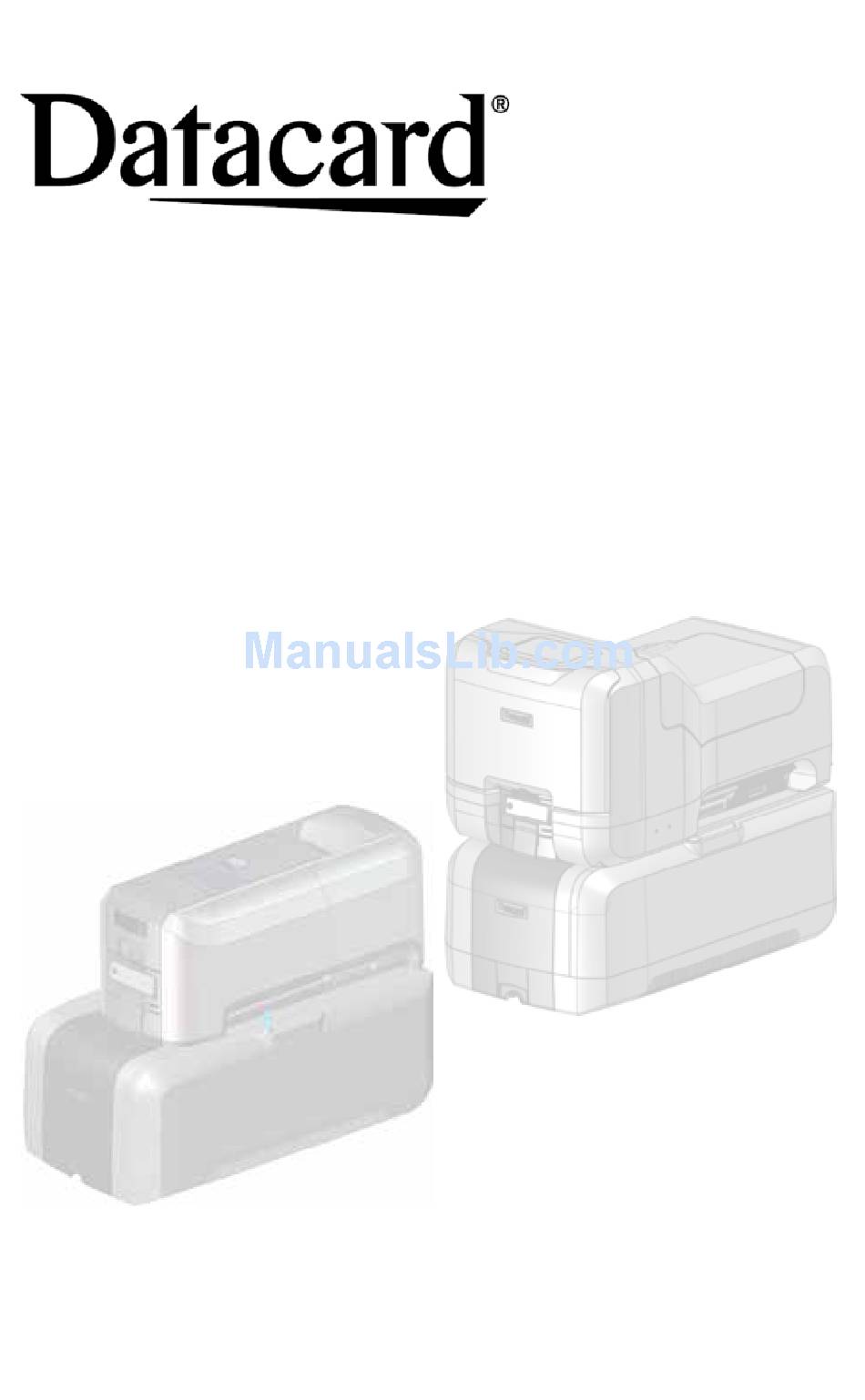

  • Page 1 CE870™ Instant Issuance System Quick Install Guide...

  • Page 2: Select A Location For The Printer

    CE870 Instant Issuance System Quick Install Guide Refer to your printer’s Installation and Administrator’s Guide, found on the Owner’s Library CD, for detailed installation instructions. 1. Select a Location for the Printer • Install the printer in a location that is clean and well ventilated, free of vibration or shock.

  • Page 3: Unpack The System

    CE870 Instant Issuance System Quick Install Guide 2. Unpack the System Remove the printer and the embosser from their shipping cartons. Single-Hopper Printer Multi-Hopper Printer CE870 Instant Issuance System...
  • Page 4 CE870 Instant Issuance System Quick Install Guide Embosser 3. Remove Shipping Items a. (Multi-hopper printer only): Unlock the printer and open the printer supplies access door and the multi-hopper cover. b. Remove the packing material inserted behind the hopper and inside the cover.
  • Page 5 CE870 Instant Issuance System Quick Install Guide c. Unlock the embosser and remove the indent ribbon and topping foil cartridges. d. Remove the foam “T” and block inserts used to secure the embosser topping and transport mechanisms during shipping. CE870 Instant Issuance System...
  • Page 6 CE870 Instant Issuance System Quick Install Guide 4. Secure the System a. Secure the embosser to the work surface (if required). Refer to the printer’s Installation and Administrator’s Guide for detailed installation instructions and measurements. Bolt Washer Lock Nut Work...
  • Page 7 CE870 Instant Issuance System Quick Install Guide 5. Assemble the Printer and Embosser a. Locate the interconnect cable in the cable routing area of the embosser, and make sure that it remains accessible. b. Slide the printer locking lever inside the embosser to the left to move the mounting lock to the unlocked position.
  • Page 8 CE870 Instant Issuance System Quick Install Guide d. Press down carefully, but firmly, on the printer to position it. e. Push the printer locking lever to the right to lock the printer to the embosser. Make sure that the printer is locked securely to the embosser.

  • Page 9: Connect The Power Cords

    CE870 Instant Issuance System Quick Install Guide 6. Connect the Power Cords a. Connect the printer power cord into the printer and into the power supply. b. Connect the power supply cord into the power outlet. c. Connect the embosser power cord into the embosser and power supply.

  • Page 10: Load Supplies

    CE870 Instant Issuance System Quick Install Guide 7. Load Supplies Supplies are ordered separately. a. Load the indent ribbon onto the cartridge. Do not separate CE870 Instant Issuance System...
  • Page 11 CE870 Instant Issuance System Quick Install Guide b. Load the topping foil onto the cartridge. CE870 Instant Issuance System...
  • Page 12 CE870 Instant Issuance System Quick Install Guide c. Replace the cartridges in the embosser. d. Remove the print ribbon cartridge. CE870 Instant Issuance System...
  • Page 13 CE870 Instant Issuance System Quick Install Guide e. Load the cleaning sleeve onto the cartridge. If your printer is equipped with the optional printhead, load the print ribbon onto the cartridge. g. Install the print ribbon cartridge in the printer.
  • Page 14 CE870 Instant Issuance System Quick Install Guide h. Load the cards in the input hopper. Refer to the diagram inside the hoppers for the correct orientation. Single Hopper Multi-Hopper Close and lock all printer and embosser doors. CE870 Instant Issuance System...

  • Page 15: Power On The System

    CE870 Instant Issuance System Quick Install Guide 8. Power On the System a. Press the power button on the front panel to power on the system. b. Wait until the system has powered up and Print queue is deactivated displays on the LCD panel.
  • Page 16 CE870 Instant Issuance System Quick Install Guide 9. Activate the System Through the Front Panel a. Before you start the activation process, call Datacard Technical Support at 1-800-328-3996 to obtain the activation code. b. Have the printer and embosser serial numbers ready when you call.
  • Page 17 CE870 Instant Issuance System Quick Install Guide c. Enter the activation code. CE870 Instant Issuance System...

  • Page 18: Set A Static Ip Address

    CE870 Instant Issuance System Quick Install Guide 10. Connect the Network Data Cable The cable is ordered separately. 11. Set a Static IP Address Datacard CardWizard issuance software requires the ® ® printer to have the same IP address at all times.
  • Page 19 CE870 Instant Issuance System Quick Install Guide b. Use the front panel menu system to enter the IP address information. CE870 Instant Issuance System...
  • Page 20 CE870 Instant Issuance System Quick Install Guide c. Follow the same process to set the subnet mask and gateway address. CE870 Instant Issuance System...
  • Page 21 CE870 Instant Issuance System Quick Install Guide 12. Print a Test Card (Optional) a. Using an internet browser, enter https://xxx.xxx.xxx.xxx, where xxx.xxx.xxx.xxx is the printer IP address. b. Log on to Printer Manager as WebAdmin. c. Select Troubleshooting >Test Card.
  • Page 22 CE870 Instant Issuance System Quick Install Guide d. Select the Emboss test card option and the test card to run. Each test card tests the position and quality of embossed and indented characters. Refer to the printer’s Installation and Administrator’s Guide for a description of the test cards.

  • Page 23: Next Steps

    CE870 Instant Issuance System Quick Install Guide 13. Next Steps • Define the printer to CardWizard software. Refer to the CardWizard and Card Printer Setup Guide for information. • Contact your system administrator to set up the rest of the system.
  • Page 24 952.933.1223 • 952.933.7971 Fax www.datacard.com/id Datacard is a registered trademark and service mark of Entrust Datacard Corporation, and Entrust is a registered trademark and service mark, in the United States and other countries. All other trademarks are the property of their respective owners.
