Owner's Manual
Thank you, and congratulations on your choice of the Roland PM-30 Personal Monitor.
Before using this unit, carefully read the sections entitled
•IMPORTANT SAFETY INSTRUCTIONS (page 2)
•USING THE UNIT SAFELY (page 3–5)
•IMPORTANT NOTES (page 5)
Additionally, in order to feel assured that you have gained a good grasp of every
feature provided by your new unit, Owner's manual should be read in its entirety.
The manual should be saved and kept on hand as a convenient reference.

Main Features

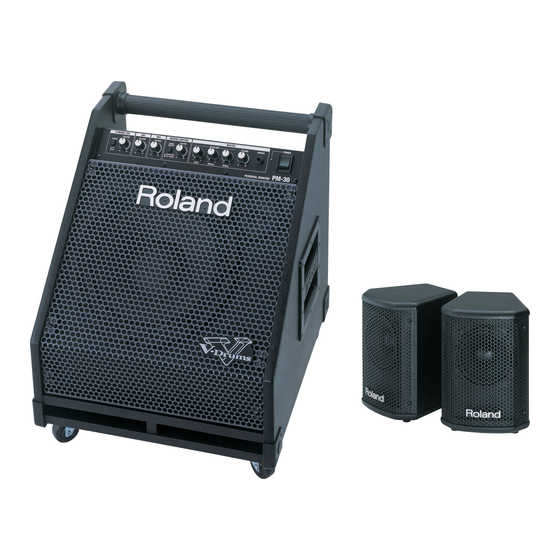

• The PM-30 is a high-quality stereo monitor amplifier designed especially for use
with Roland's V-Drums.
This 2.1-channel system features a total output of 200 watts to provide a drum
sound with amazing presence.
• Main Unit features 12-inches (30-cm) woofer plus tweeter.
The wedge-shaped design makes monitoring easier and provides both a sense of
power along with great monitor performance.
Additionally, the PM-30 features switchable "SUBWOOFER" and "FULL
RANGE" playback modes (ranges), as well as a woofer control function that
allows you to balance the volume level with the satellite speakers.
• Each satellite speaker includes a high-quality 4-inches (10-cm) full-range speaker.
Featuring authentic wood cabinets, these units provide clear, natural stereo sound.
In addition, they come with specialized mounting stands, enabling the units to be
set up in a variety of ways.
• The system includes dedicated channels designed to reproduce all of the V-Drums
sound.
Along with superior basic performance, the V-Drums channels also provide great
additional features, such as a PUNCH switch, which produces an even more
powerful drum sound, and a V-Drums input, which enables connection to a V-
Drums sound module using only a single stereo (TRS) cable coming from the V-
Drums headphones output.
• The unit comes equipped with a three-channel stereo mixer function for superior
system expandability.
In addition to a V-Drums sound module, you can also connect and simultaneously
monitor multiple devices, such as additional sound modules and CD players, MP3
players, or any other external audio sources.
Also included is a three-band equalizer to further shape the sound and a LINE
OUT jack useful for expanding the system.
• Includes handle and casters for easy portability.
Copyright © 2006 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of ROLAND CORPORATION.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM-30 and is the answer not in the manual?

Questions and answers

Related Manuals for Roland PM-30

Summary of Contents for Roland PM-30

  • Page 1: Main Features

    Owner’s Manual Thank you, and congratulations on your choice of the Roland PM-30 Personal Monitor. Before using this unit, carefully read the sections entitled •IMPORTANT SAFETY INSTRUCTIONS (page 2) •USING THE UNIT SAFELY (page 3–5) •IMPORTANT NOTES (page 5) Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner’s manual should be read in its entirety.

  • Page 2: Important Safety Instructions

    WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION : RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3 • Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.
  • Page 4 101d • The included mount bars intended for use only with PM-30. Use with other apparatus is capable of resulting in instability causing possible injury. 102a • Always grasp only the plug on the power-supply cord when plugging into, or unplugging from an outlet.

  • Page 5: Important Notes

    (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials. • Use a cable from Roland to make the connection. If using some other make of connection cable, please note the following precautions.

  • Page 6: Checking The Package Contents

    Checking the Package Contents The PM-30 comes with the following items. After opening the package, please check all items. If any items are missing, please contact the retailer from whom this product was purchased. ❏ Main Unit ❏ Satellite Speaker x 2 ❏...
  • Page 7 Attaching the Mount Bars and Clamps 1. As shown in the figure, turn the satellite speakers over and place them on the floor, then screw in the mount bars. * To protect the satellite speakers cosmetic appearance, place cloth or paper between the speakers and the floor surface when attaching mount bars.

  • Page 8: Panel Descriptions

    * This does not affect the sounds output from the SPEAKER OUT, headphones, and LINE OUT outputs. * No sound is output from the PM-30's speakers when the WOOFER CONTROL VOLUME knob is set to 0. MASTER EQUALIZER 7.

  • Page 9: Speaker Out

    Main Unit: Rear Panel V-DRUMS/CH1 13. V-DRUMS Input Jack Use a single stereo cable (sold separately) to connect the output from the V-Drums sound module’s PHONES OUT to this input jack. For more detailed information with examples of using V- DRUMS input, refer to “Connections”...
  • Page 10 1. Make sure that all volume controls on the PM-30 and connected devices are set to 0. 2. Turn on all the devices connected to the PM-30 ’s input jacks. 3. Turn on the PM-30.
  • Page 11 Setup Examples 2 (When Using the PM-30 as a Stage Monitor) This example shows how you can enjoy the fullest use of the PM-30’s array of input and output connections when using the unit as a stage monitor. You can monitor the V-Drums sounds and sounds from other sources, all simultaneously.

  • Page 12: Setup Examples

    V-Drums sound module. The PM-30 is not merely a monitor for use with V-Drums, but also can be used as a monitor with a variety of other devices, and can even be used as a simple PA in smaller venues.
  • Page 13 You can remove the mount bars from the satellite speakers and place these speakers on a desk or table. This allows you to use the PM-30 as a 2.1-channel monitor with greater spread when playing synthesizers or other such instruments.

  • Page 14: Block Diagram

    Block Diagram Main Unit V-DRUMS V-DRUMS/CH1 L/MONO LINE IN VOLUME L/MONO LINE IN VOLUME L/MONO LINE IN VOLUME LINE IN Troubleshooting No sound from the main unit speaker ❏ Could the WOOFER CONTROL VOLUME knob be set to 0? → Turn the WOOFER CONTROL VOLUME knob to raise the volume. PUNCH WOOFER CONTROL LEVEL...

  • Page 15: Main Specifications

    Main Specifications ● Rated Power Output 200 W (Main Unit 100 W + Satellite Speaker 50W x 2) ● Nominal Input Level (1 kHz) INPUT CHANNEL1 (V-DRUMS): -10–+4 dBu (LINE IN): -20–+4 dBu CHANNEL2 (LINE IN): -10–+4 dBu CHANNEL3 (LINE IN): -10–+4 dBu ●...

  • Page 16: Federal Communications Commission

    This product complies with the requirements of European Directives EMC 89/336/EEC and LVD 73/23/EEC. FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
