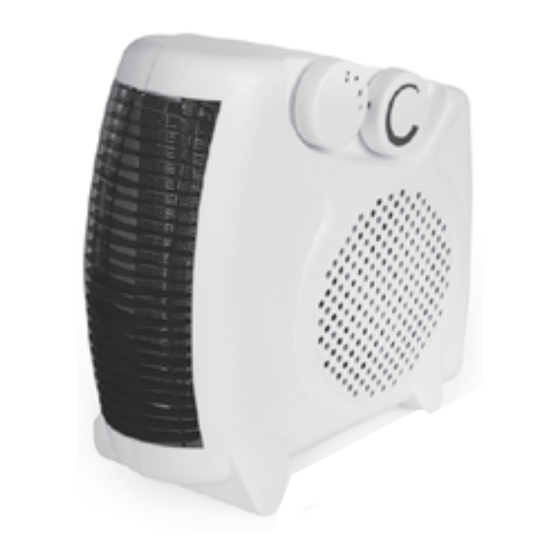

Rhino 2kw domestic fan heater

Advertisement

Quick Links

Insert the BLUE (neutral) core into the terminal to the bottom left of the live
terminal and finger tighten screw.
5.
Ensure all copper wire is fully inserted into correct terminal positions before fully
tightening all terminal screws.
6.
Clamp the strain relief over the outer insulation of the power cord (leaving at least
3mm of insulation above the strain relief on the exposed two cores side) and fix in
place with the two screws.
7.
Push the plug rear cover together with plug housing and fully tightened the
single centre screw.
If requirement is for a 240V 16Amp or 32Amp Blue Plug, ensure conformity to BS
60309. For wiring instructions, please follow plug manufacturers wiring instructions.
TROUBLE SHOOTING
FAULT DESCRIPTION
SUGGESTED SOLUTION
HEATER DOES
Check power supply.
NOT OPERATE
Check elements for damage or misalignment.
Check all wiring connections.
OTHERS
Consult a qualified electrician or contact
RHINO (contact details below).
SPECIFICATION DATA
PART NUMBER
????
POWER REQUIREMENT
230-240V~, 50Hz
POWER CORD LENGTH
1.2 Metres
PLUG
250V - 13A UK 3 pin - Kite Marked
(BS 1363) with 13A fuse (BS 1362)
POWER CORD
240V - White 2G 0.75mm² - H05 VV-F
DIMENSIONS (LxWxH )
255mm x 125mm x 255mm
WEIGHT
1.3kg
OPERATING TEMPERATURE
-20ºC to +40ºC
RHINO
BIRCH PARK
PARK LODGE ROAD
GILTBROOK
NOTTINGHAM
NG16 2AR
Tel: +44 (0)115 9389000
Fax: +44 (0)115 9389010

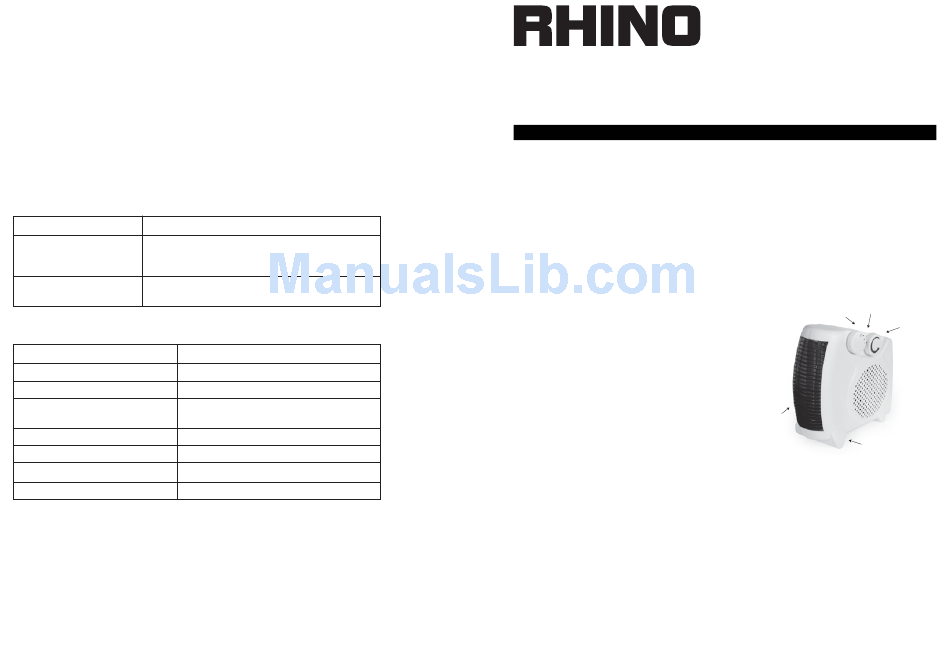

2KW Domestic Fan Heater
Instruction Booklet
IMPORTANT SAFETY INSTRUCTIONS
This instruction booklet contains vital information for the safe use and efficient operation
of the RHINO Fan Heater. Carefully read and understand all instructions before operat-
ing, maintaining or cleaning the heater. Failure to adhere to the instructions could result
in fire, electric shock, serious personal injury or property damage.
Please Note : Due to the nature of the product you may experience a slight odour when
the unit is first switched on. The odour is non-hazardous. This is perfectly normal and
the odour will disappear after a short period of operation.
KEEP THIS BOOKLET FOR FUTURE REFERENCE.
HEATER IDENTIFICATION
1)
Thermostat dial
2)
Function Selector
3)
Safety Guard
4)
Floor Stand
5)
Mains in neon
GENERAL SAFETY INFORMATION
1.
Ensure all instructions are read before using the fan heater.
2.
Ensure power supply is correct voltage for heater be checking the rating label on
the body of the heater
3.
Ensure the heater is switched OFF before leaving it unattended.
4.
Ensure combustible material such as furniture, cushions, bedding, paper, clothes,
curtains etc are kept at-least 100cm away from the Fan Heater
5.
Replace damaged power cord immediately.
6.
Refer all servicing of electrical parts to a qualified electrician.
7.
Protect power cord from contact with sharp objects, chemicals or hot surfaces.
8.
This product is designed for indoor use only and should not be used outdoors,
near or immersed in water.
9.
Keep the heater clean. Do not allow any objects to enter any ventilation or
exhaust opening as this may cause electric shock, or fire or damage to the heater.
10. Do not allow children to play with the appliance.
5.
2.
1.
3.
4.
