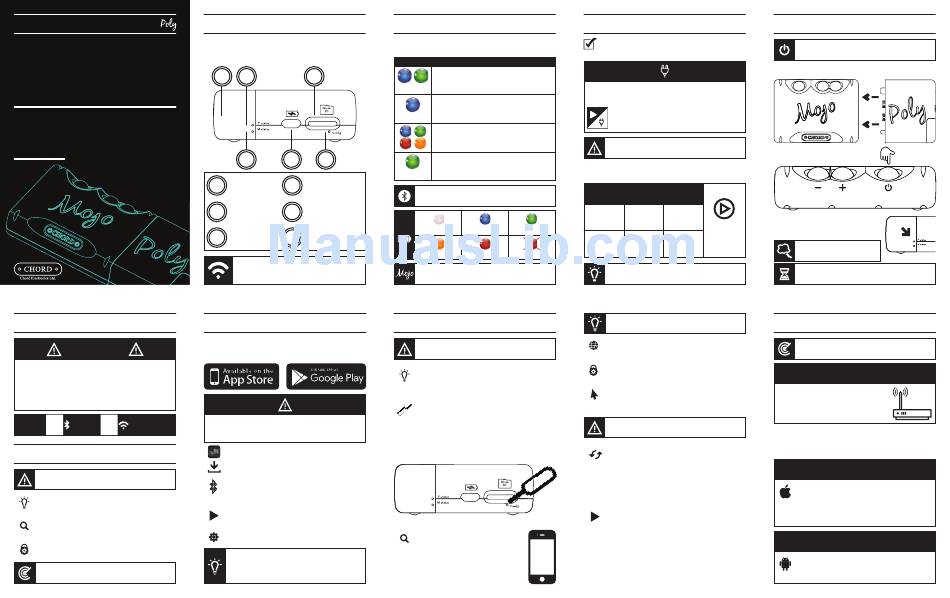

Chord Poly User Manual

User Manual
Poly
Wireless streaming
module
05 Connection priority
IMPORTANT
Poly prioritises Bluetooth connections over Wi-Fi for 'on-
the-go' convenience. If a Wi-Fi connection is established
you may interrupt this connection by selecting Poly as
the output from your device. Poly will only be able to re-
engage Wi-Fi connectivity once the Bluetooth connection
is disconnected.
1 2
INPUT
ALWAYS WHEN BLUETOOTH
PRIORITY PRIORITISED DISCONNECTED
06 Connecting via Bluetooth
Bluetooth is a lossy means of transmitting audio
data. For best results, use Wi-Fi wherever possible.
1
Make sure that Poly is connected to a
switched-on Mojo
2
In your device's Bluetooth settings search for
devices
3
Locate Poly and when prompted, input the
code: 0000
Poly has a maximum Bluetooth range of fi ve
metres, distortion may occur beyond this.
01 Getting to know Poly

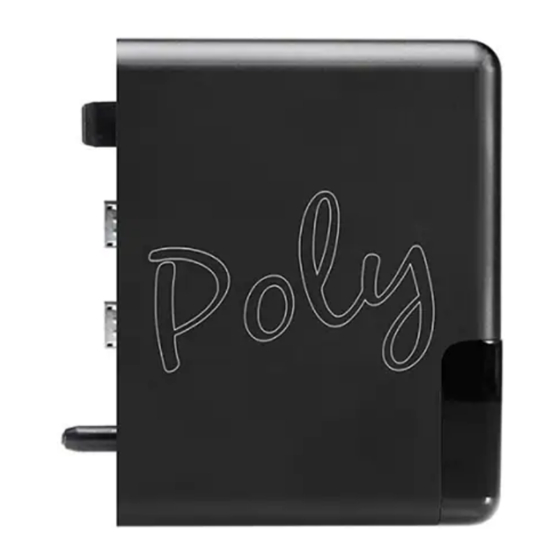

Welcome to Poly, the wireless streaming module with SD
card playback for Mojo. Please take a moment to familiarise
yourself with your device.
1 2 3
4 5 6
Wi-Fi and Poly status: network
1 2
Bluetooth signal and battery life
window
Micro SD card Mojo status:
3 4
input battery life
Micro USB Confi guration button
5 6
charging input (use pin to access)
Wireless signals like to be free. For optimal
performance please keep the acrylic signal
window clear of obstacles.
06 Configure using the GoFigure App
A free app to confi gure your Poly is available for iOS and
Android devices. GoFigure allows you to confi gure your
networks, change playback modes, and more
Confi guring your Poly using the GoFigure app is
recommended, rather than confi guring via WiFi which is
covered in section 07 of this manual.
1
To download GoFigure search the Google
Play and/or App Store for 'Chord Electronics'
or 'GoFigure'
2
GoFigure communicates with Poly via
Bluetooth. Whilst downloading, enter your
device's settings menu and turn on Bluetooth
3
Turn on Mojo, connect Poly and wait for Poly
to initialise
4
Open GoFigure
For devices that are unable to create a personal
hotspot, the GoFigure app will allow Poly to create
its own local hotspot that you can connect to. For
more information see section 08 of this manual.
02 Charging
Poly provides feedback via the P-status LED. Below you can
discover the connection and charge status.
Poly is in access point mode - connect to
Poly's unsecured Wi-Fi and enter your valid
Wi-Fi network details to allow Poly to connect
Flashing
Poly is searching for a known Wi-Fi network
Flashing
Poly has successfully connected to a known
network - battery status will now be shown*
Poly has successfully read the inserted
Micro SD card
Flashing
When Bluetooth input is operational, only charge
status will be indicated window clear of obstacles.
* Charging 75% - 100% 50% - 75%
25% - 50% 5% - 25% 0% - 5%
All Mojo battery status indicators remain the same
via the M-status.
07 Configure via Wi-Fi
(without the GoFigure app)
Wi-Fi is typically lossless & offers the best means
of transmitting audio data. Use whenever possible.
1
Make sure that Poly is connected to a
switched on Mojo, if active, the P-status
LED will illuminate
2
Poly must be placed in Access Point mode.
To add a new network use the included pin
to press the 'Confi g' button for fi ve seconds
When Access Point mode is established,
Poly's P-status LED will fl ash green and
then blue, repeating the sequence. Poly's IP
address will also be played through Mojo
3
Open the Wi-Fi settings on
any device and select Poly to
connect to the unsecured Wi-Fi
network
03 Understanding Poly's status
Before using Poly for the fi rst time, we recommend
that you fully charge your device for six hours.
To charge Poly on its own you must use a charger capable
of delivering at least 1amp of current.
You can simultaneously charge Poly and Mojo
whilst playing back audio. To do this you must use a
charger capable of delivering 2 Amps.
Using a 1amp charger when Poly and Mojo are
connected will result in only Mojo being charged.
Below are average charging and playback times for Mojo
and Poly when connected together.
Poly charge Mojo charge
Charger
time time
2 4 4
9
amps hours hours
4 8
hr
PLAY
Playback
&
(average)
CHARGE hours hours
When charging, Poly's P-status LED will show a
steady solid white glow.
We recommend attaching the included pin to your
keyring for safekeeping.
4
Open a web browser window, Poly's internal
webpage will now be displayed for confi guration
5
Enter the SSID of your network followed by
the network password
6
Select 'playback mode'. If you are using
Roon then you must select 'Roon mode', for
everything else select 'Other'. Then click 'Save'
If you wish to switch between Roon and other you
must manually engage this before each session.
7
When a new network is added, Poly will
reboot. Allow ten seconds for this sequence
to complete. When Poly switches back on, it
will search for your network, indicated by the
P-status LED fl ashing blue. Once connected
will display a solid colour - battery status will
now be indicated
8
With your device connected on the same
network as Poly, you can now use your
chosen apps for playback including; AirPlay
(iOS), DLNA, and Roon
04 Switching on Poly
Poly features an auto-on circuit that wakes the
device upon connection to a switched on Mojo.
1
Connect Poly to Mojo, making sure to not use
excessive force and consider using a fl at surface
2
Turn Mojo on and wait until
switch-on sequence completes
3
Wait ten seconds for Poly to
register connection. Poly's P-status
LED will now become active
To protect the connection we
advise purchasing the Poly case.
If Poly does not wake upon connection, disconnect
from Mojo and connect to a charger for one hour.
08 Confi guration/Wi-Fi help
Poly communicates only via 2.4GHz networks and
has a maximum range of 10m.
Locating router SSID and password
The SSID of your network is the name
that your network broadcasts. You can
usually fi nd this and your password by
looking at the bottom of your router.
If connecting Poly to a mobile device you will need to
activate your personal hotspot. During transmission, Poly
will not consume any data.
Locating Apple iOS SSID and password
To view your SSID go to the Settings menu >
General > About > Name - this is your SSID.
To connect Poly to your iOS device, engage your
personal hotspot and view password via: Settings
> Personal Hotspot.
Locating Android SSID and password
To view your SSID, password and engage personal
hotspot, go to the Settings menu > Wireless &
Networks > More > Tethering & Portable Hotspot.
