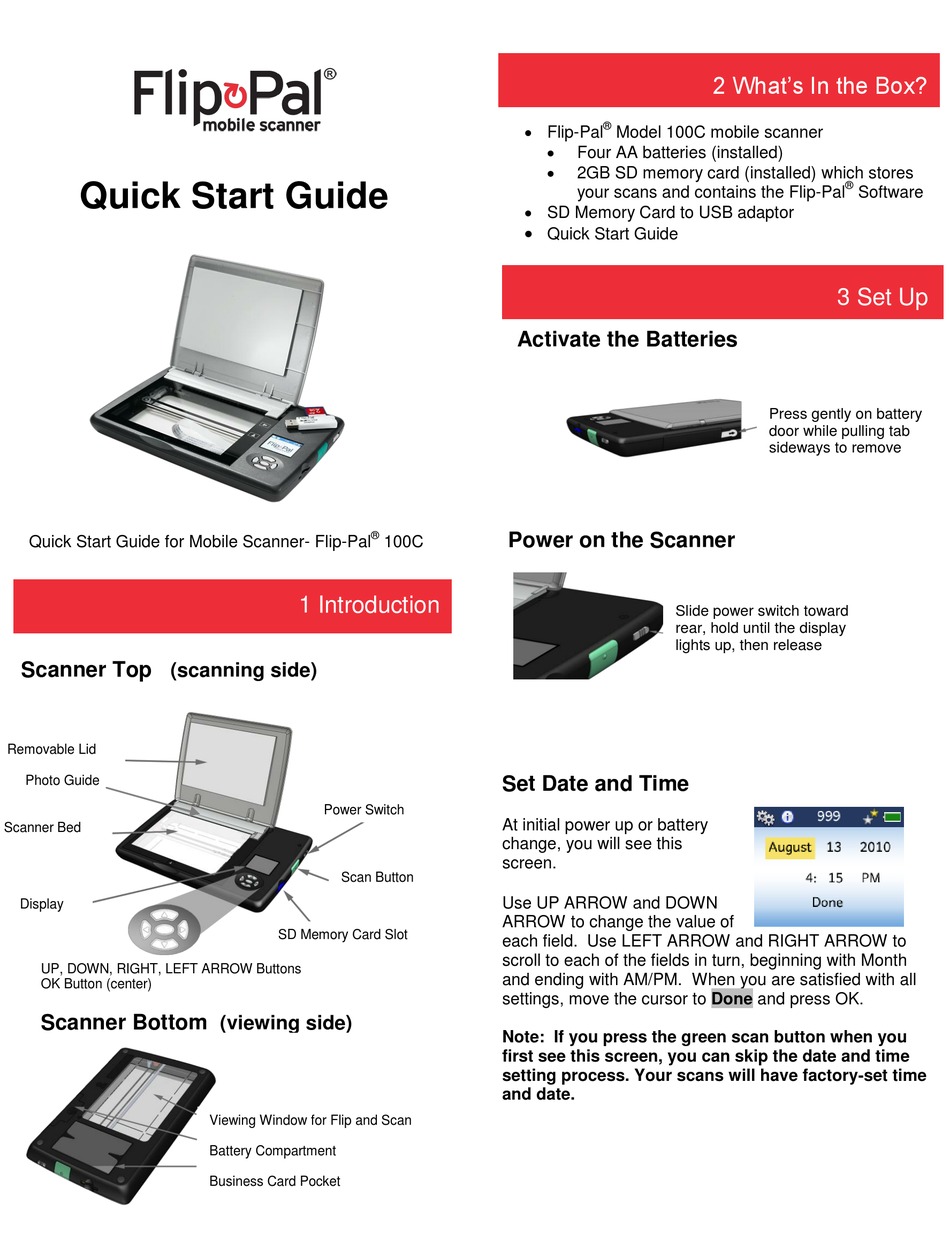

Quick Start Guide
Quick Start Guide for Mobile Scanner- Flip-Pal
Scanner Top
(scanning side)
Removable Lid
Photo Guide
Scanner Bed
Display
UP, DOWN, RIGHT, LEFT ARROW Buttons
OK Button (center)
Scanner Bottom
®
100C
1 Introduction
Power Switch
Scan Button
SD Memory Card Slot
(viewing side)
Viewing Window for Flip and Scan
Battery Compartment
Business Card Pocket
Flip-Pal
®
Model 100C mobile scanner
Four AA batteries (installed)
2GB SD memory card (installed) which stores
your scans and contains the Flip-Pal
SD Memory Card to USB adaptor
Quick Start Guide
Activate the Batteries
Power on the Scanner
Slide power switch toward
rear, hold until the display
lights up, then release
Set Date and Time
At initial power up or battery
change, you will see this
screen.
Use UP ARROW and DOWN
ARROW to change the value of
each field. Use LEFT ARROW and RIGHT ARROW to
scroll to each of the fields in turn, beginning with Month
and ending with AM/PM. When you are satisfied with all
settings, move the cursor to Done and press OK.
Note: If you press the green scan button when you
first see this screen, you can skip the date and time
setting process. Your scans will have factory-set time
and date.
2 What's In the Box?
®
Software
3 Set Up
Press gently on battery
door while pulling tab
sideways to remove
