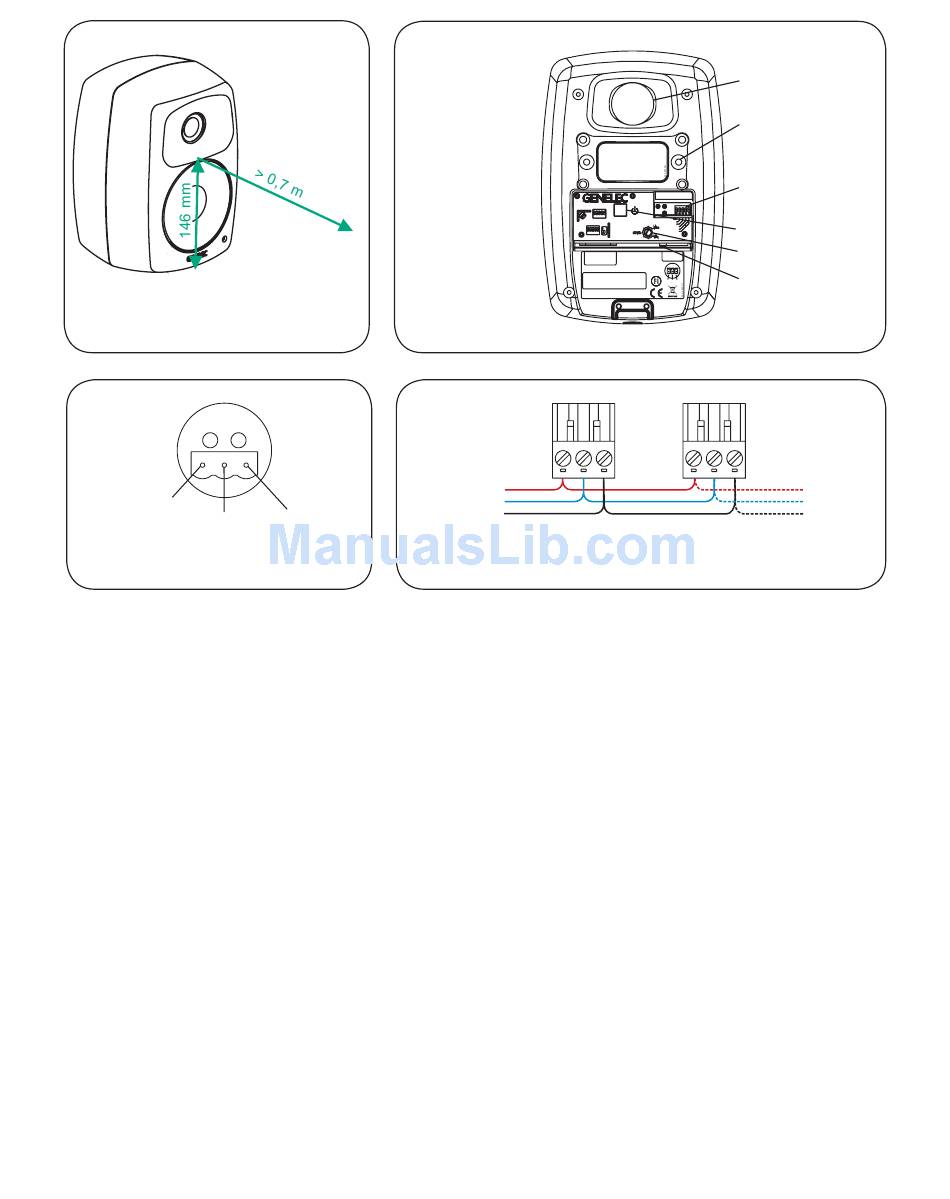

Figure 1: Location of the acoustic
axis
+
–
NON-
INVERTING INVERTING
Figure 2: Audio input pin sequence

Level control

The input sensitivity of the loudspeaker can be
matched to the output of the signal source by ad-
justing the level control on the rear panel.
Setting the tone controls
The frequency response of the Genelec 4020C
can be adjusted to match the acoustic environ-
ment by setting the tone control switches on the
rear panel. The controls are "Treble Tilt", "Bass
Tilt" and "Bass Roll-Off". An acoustic measuring
system such as WinMLS or comparable is recom-
mended for analyzing the effects of the adjust-
ments, however, careful listening with suitable
test recordings can also lead to good results if a
test system is not available. Table 1 shows some
examples of typical settings in various situations.
ACOUSTIC
AXIS
Figure 3:
Control and
connector
layout.
GND
GROUND
Figure 4: Cable connection for daisy-chaining speakers
