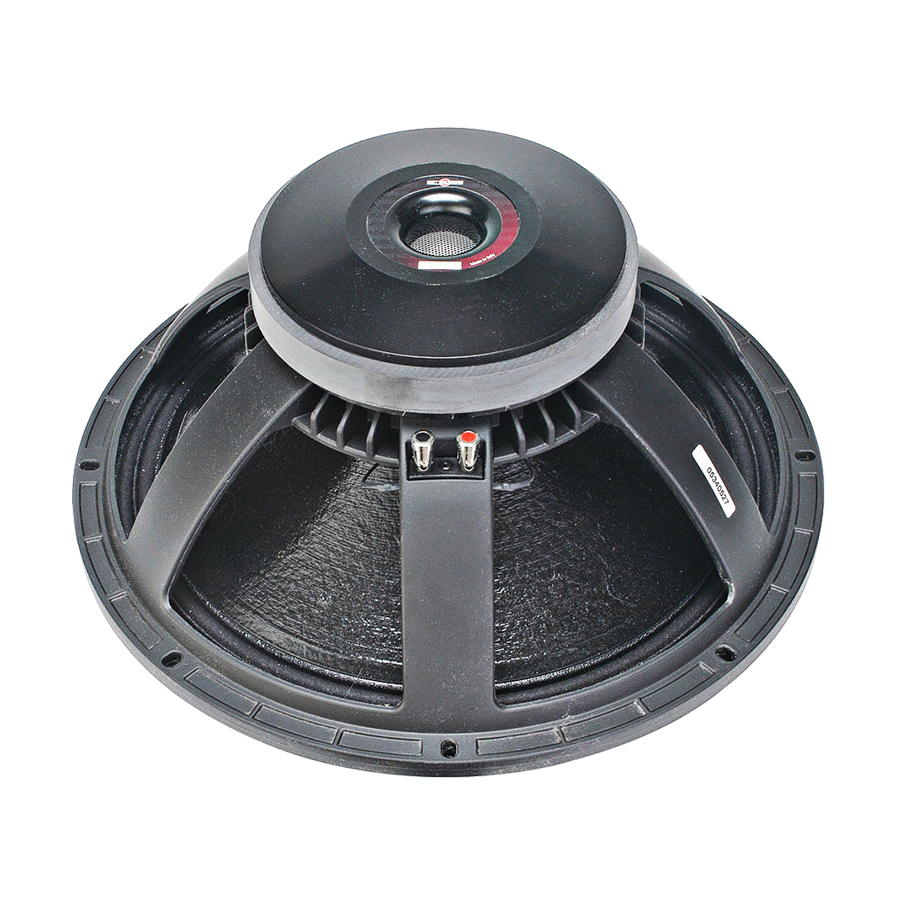

B&C Speakers 18PZB100 Specification

18PZB100
Subwoofer
1400 W continuous program power capacity
Double silicone spider with optimized compliance
100 mm (4 in) copper voice coil
40 – 2000 Hz response
97 dB sensitivity
Specification
Nominal Diameter 460 (18) mm (in)
Nominal Impedance (1)
Minimum Impedence
Nominal Power Handling (2)
Continuous Power Handling (3)
Sensitivity (1W/1m) (4)
Frequency Range 40 - 2000 Hz
Voice Coil Diameter 100 (4) mm (in)
Winding Material
Former Material
Winding Depth 21 (0.83) mm (in)
Magnetic Gap Depth 8 (5/16) mm (in)
Flux Density
Thiele & Small Parameters
Fs
Re
Qes
Qms
Qts
Vas 297 (10.5) dm3 (ft3)
Sd 1134 (175.8) cm2 (in2)
Eta Zero
Xmax
Xvar
Mms
Bl
Le
Mounting and Shipping Info
Overall Diameter 460 mm (18 in)
Bolt Circle Diameter 440 mm (17.3 in)
Baffle Cutout Diameter 422 mm (16.6 in)
Depth 202 mm (7.95 in)
Flange and Gasket Thickness 16 mm (5/8 in)
Net Weight 12.1 kg (26.6 lb)
Shipping Weight 14 kg (30.8 lb)
Shipping Box 520x520x240 mm
(20.5x20.5x9.4 in)
1 For different impedances, please ask.
2 2 hours test made with continuous pink noise signal (6 dB crest factor).
Power calculated on rated minimum impedance.
3 Power on Continuous Program is defined as 3 dB greater than the
Nominal rating.
4 Applied RMS Voltage is set to 2.83V for 8 ohms or 2.0V for 4 ohms
Nominal Impedance
8 Ohm
6.5 Ohm
700 W
1400 W
97 dB
Copper
Glass Fibre
1.15 T
30 Hz
5.3 Ohm
0.25
8.8
0.24
3.1 %
+/- 8 mm
+/- 8 mm
170 g
26 Txm
2.1 mH
