Co2meter RAD-0102-6 Operating Instructions Manual

CO2 Monitor Operating Instructions

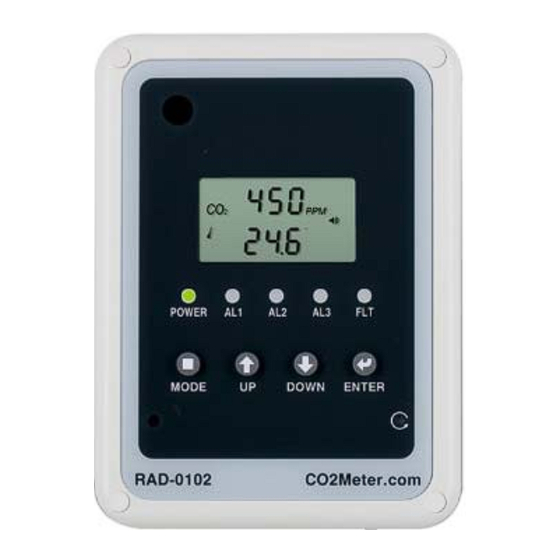

Model: RAD-0102-6 Remote CO2 Storage Safety System
1. Product Overview
Thank you for selecting the RAD-0102-6 CO2 Storage Safety
Alarm. This monitor is designed to detect Carbon Dioxide
levels in the ambient air to protect employees and
customers. CO2 monitors are required in most jurisdictions by
code. High concentrations of CO2 in confined spaces are
dangerous, and may lead to health problems ranging from
headaches and fatigue to asphyxiation and death. This
monitor has 3 audible and visual alarm levels with relays that
are triggered at 5,000 ppm TWA, 15,000 ppm, and 30,000
ppm and can control a ventilation fan or signal the fire panel
to send an alarm to the fire department or monitoring
company. These standards meet IFC, NFPA, and NBIC
requirements for monitoring.
RAD-0102-6 CO2 Monitor is cost-effective and includes these features:
1.) Multiple RDU's can be connected for additional alarm points.
2.) Large digital LCD display clearly indicates the ambient CO2 concentration,
relative humidity, and temperature.
3.) 3 independent relay outputs can automatically control vent fan or be wired to the fire alarm
panel.
4.) Audible and visual alarm indications.
5.) Automatic altitude compensation (can be turned on/off).
6.) 4-20 mA output for offsite monitoring.
7.) 100% clean look by burying all cables in the wall.
8.) Allows for field upgrades with strobe package at a later date.

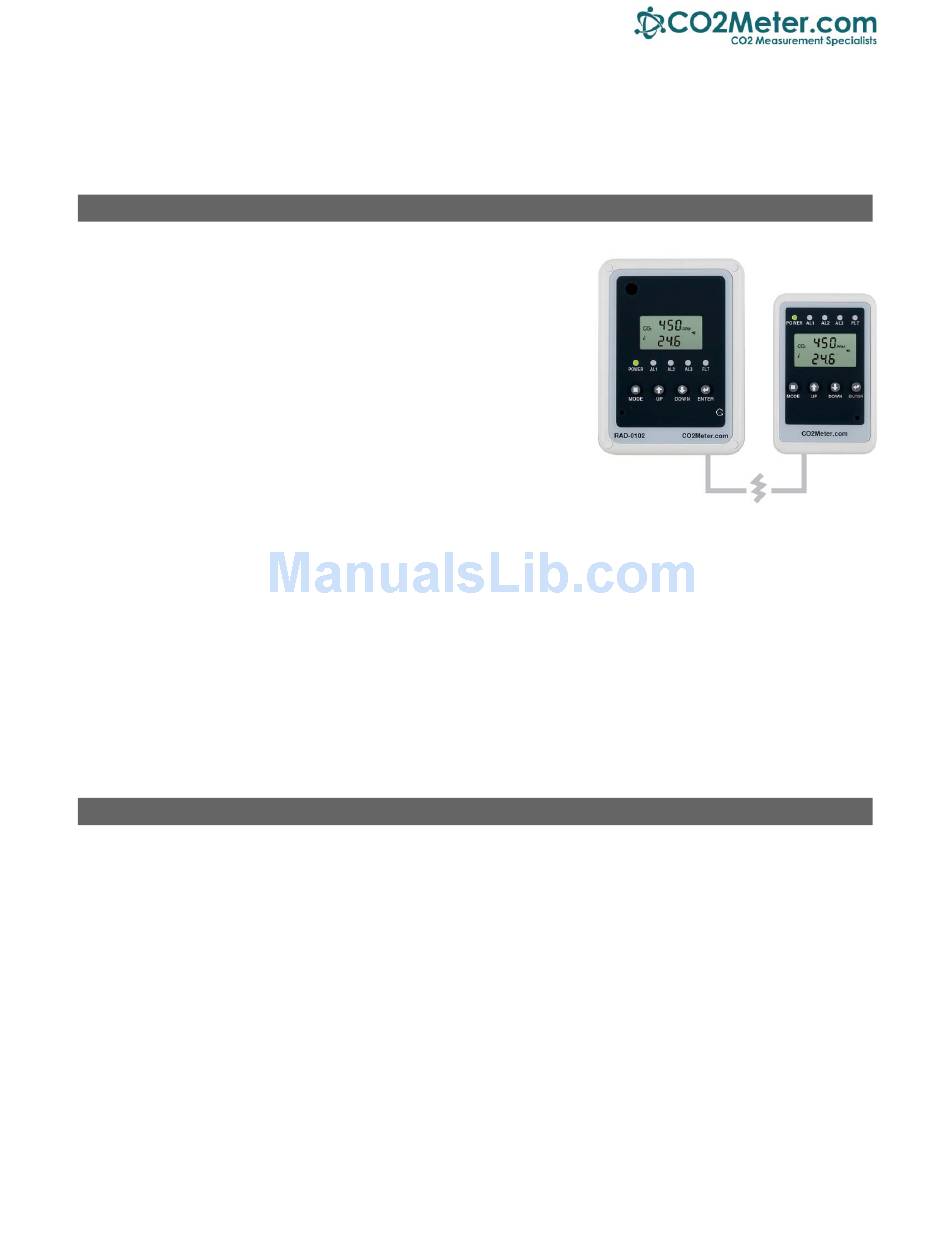

2. Package Content & Unit Layout
The RAD-0102-6 package comprises the following parts:

SEU (Main Unit),

RDU (Remote Unit)

CAT 5 Communication Cable (1 piece)

Relay Cables (3 pieces)

Wall Plug Safety Strap (1 piece)

Mounting Brackets (2 pieces)

Screws (13 pieces), Wall Anchors (12 pieces), Cable Clips (10 pieces)

Power Supply (1 Piece), International Power Adaptors (3 pieces)

Warning Signs (6 pieces)

User Manual (1 piece).
