TH-1149 Series Electric Thermostat
Product Overview
The TH-1149 series thermostats are for
control the commercial or residential heating
and cooling systems. The thermostats come in
a sleek and contemporary design that blends
with any interior decoration.
A number of configurable parameters enable
the TH-1149 thermostats effectively and
efficiently control the room temperature.
TH-1149 is ideal for application in single-stage
heating and cooling systems, gas or electric
heater, Hydronic, forced air and air
conditioner.
Model Descriptions
Characteristics
Mechanical/Quick Knob
Digital Display
On/Off Switch
System Switch Heat/Off/Cool
Temperature Control Range
Standby mode
PI & Cycle Rate Selection
Wireless Capability
Compatible Receiver
Content in the package
TH-1149 thermostat: 1 unit
User Guide: 1 set
Screws & Anchors: 1 set
User Manual: TH-1149

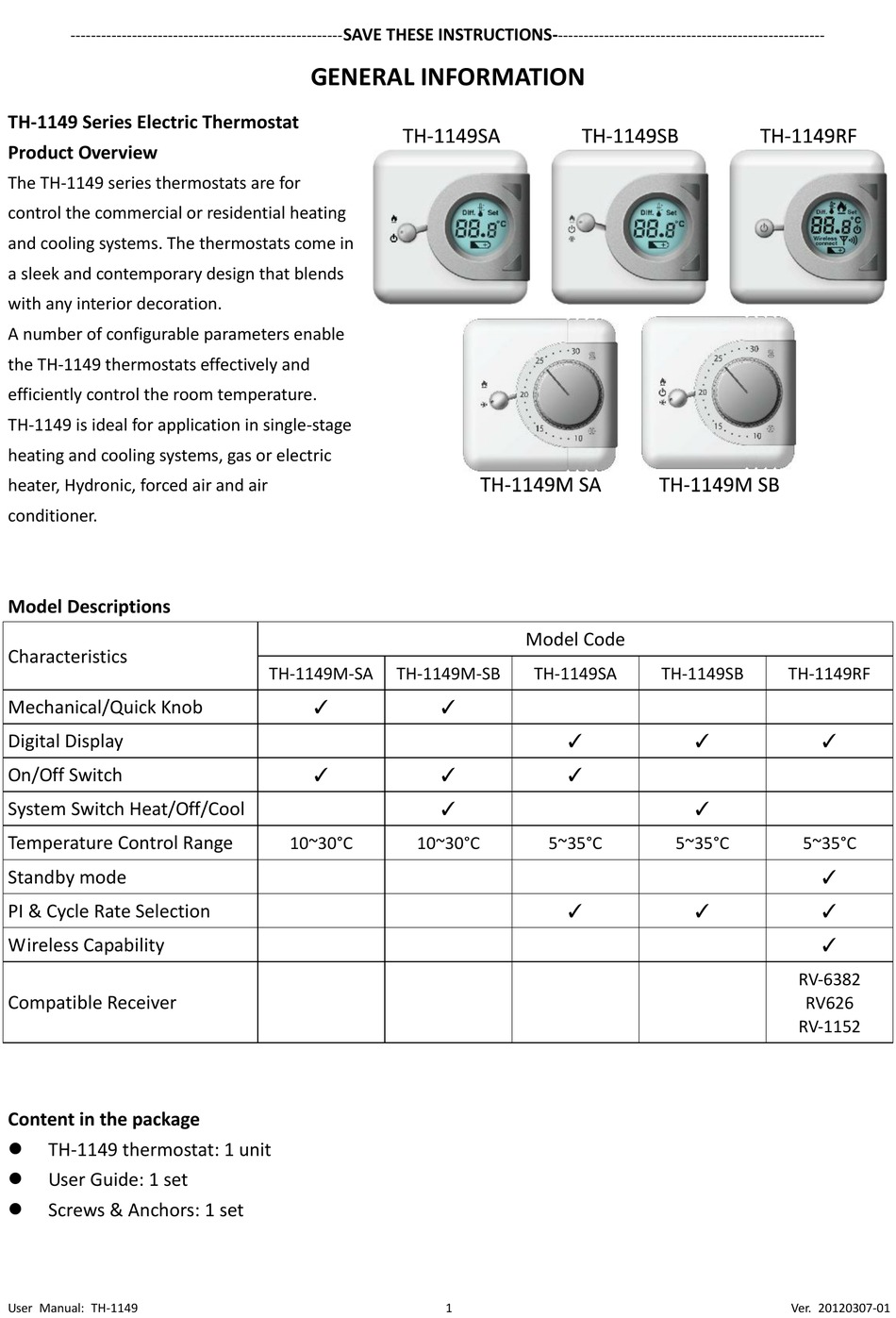

SAVE THESE INSTRUCTIONS-
GENERAL INFORMATION
TH-1149M-SA
TH-1149M-SB
✓
✓
✓
✓
✓
10~30°C
10~30°C
----------------------------------------------------
Model Code
TH-1149SA
✓
✓
5~35°C
✓
1
TH-1149SB
TH-1149RF
✓
✓
✓
5~35°C
5~35°C
✓
✓
✓
✓
RV-6382
RV626
RV-1152
Ver. 20120307-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Coronado TH-1149M-SA
Summary of Contents for Coronado TH-1149M-SA
-
Page 1: General Information
TH-1149 is ideal for application in single-stage heating and cooling systems, gas or electric heater, Hydronic, forced air and air conditioner. Model Descriptions Model Code Characteristics TH-1149M-SA TH-1149M-SB TH-1149SA TH-1149SB TH-1149RF ✓ ✓ Mechanical/Quick Knob Digital Display ✓... - Page 2 INSTALLATION AND MAINTENANCE Guide to batteries replacement & Wiring Proposed application (Wiring) Under normal operation, users require to replace TH-1149M-SA/TH1149M-SB batteries once every year, to avoid unnecessary damage that might occur while changing batteries or newly installation of this thermostat.
- Page 3 Anti-Freeze Protection: 5°C Temperature Sensor: NTC 10K Ohm @ 25°C Operation Instruction TH-1149M-SA/TH01149-SB 1. Turn the knob to set the temperature of the setpoint. When the room temperature reaches the desired setting, the unit will function to maintain the set temperature.
