Coronado CCRC30F-KIT Owner's Manual

Wireless Thermostat
CCRC30F-KIT
OWNER'S MANUAL
+ / ON - / OFF
CCRC30F-KIT
FEATURES:
Current Temperature

Target Temperature

Automatic ON/OFF

Always ON/OFF

°C/°F Switchable

Low Battery Warning

Low Temperature Warning

High Temperature Warning

Memory Settings

Room Thermostat

433 Mhz RF technology

 Multi-Channels
13A,3250W

 250V,50HZ

1. INTRODUCTION

Congratulations on your purchase of this
Wireless Thermostat, CCRC30F-KIT
Please take the time to read and understand
this manual so you can begin to enjoy the
convenience and features this product brings to you.
The wireless thermostat is suitable for many kinds of
heating device and protect some home appliances.
It will automatically turn on/off heating device as
the ambient temperature changing,in order to maintain
a constant room temperature.

4. AUTO CODING

Thermostat controal is always in transmitting status,when
RC30F-PLUG is plugged into home electricity for the first
time,the red LED indicator will be flashing, this means
it is in auto coding status:
If can't search any transmite signal from thermsotat control unit
It will flash 2 minutes and then exit the coding progress.
If can search transmite signal, it will be back to normal.
It means coding sucessful.
Memory Function:
All the settings will be memoried even if cut off power
It includes code pairing method, target temperature settings.
Low Battery Warning:
This product can be with 2pcs*1.5VAA battery,
symbol will be flashing when the battery is lower
C/
than 2.7V,

7. ALWAYS ON

Users can manually change the work mode to Always ON
or Always OFF whatever the thermostat is in ON or OFF status:
Always ON Mode:
Hold and press more than 3 seconds
Wireless thermostat will be change to
Always ON status, the connected heater
will be always heating.
And the Target temperature will be disappeared
from the LCD, LCD part shows ON,all the
connected socket is kept ON status,shows in Fig 3.
It will be back to auto operaion just by keep pressing
more than 3 seconds

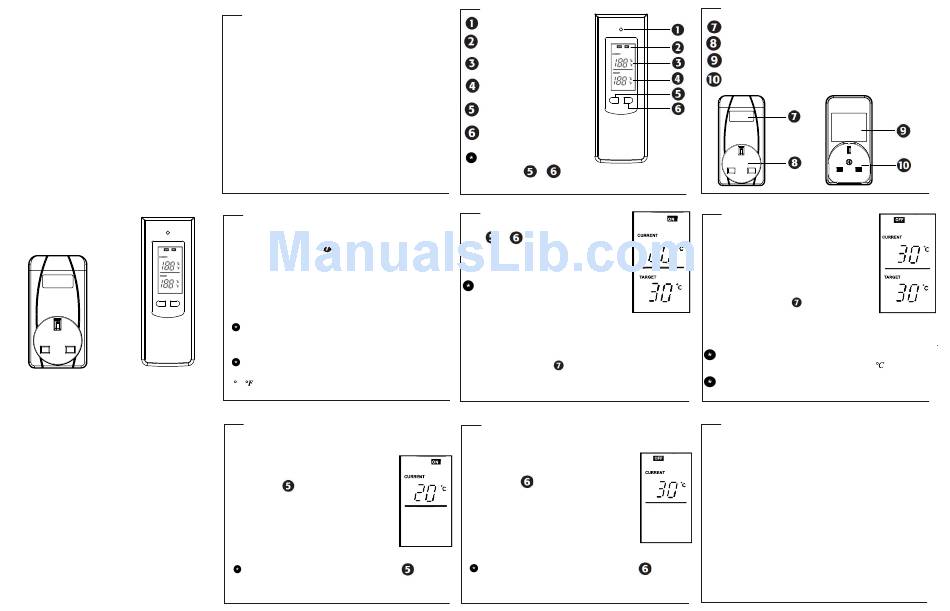

2. DESCRIPTION

Green LED indicator
LCD part: Display wireless thermostat
ON or OFFstatus
LCD part: Display the CURRENT
temperature in °C/°F
LCD part: Display the TARGET
temperature in °C/°F
LEFT button: Set the target
+ / ON,
temperature/Always ON
RIGHT button: Set the target
- / OFF,
temperature/Always OFF
°C/ °F Switchable:
Hold and press & at the same time
about 3 seconds, then it will swtich between °C/ °F

5. AUTO OPERATION

Press or to choose the target temperature:
° F
Resolution:±1 °C or
± 1
*
When the TARGET temperature is higher
than the CURRENT temperature:
1. In Figure 1, CURRENT(20 )<TARGET(30
°C
2. The wireless thermostat sends commands to all the
sockets to turn ON the connected heating device.
3. LCD display ON symbol
4. The red LED indicator is ON
5. The connected heating device will be in working
status to warm the house.

8. ALWAYS OFF

Always OFF Mode:
Hold and press more than 3 seconds.
Wireless thermostat will be change to
Always OFF status,the connected heater
will be always OFF.
And the Target temperature will be disappear
from the LCD, LCD part shows OFF,all the
connected socket is kept OFF status,shows in Fig 4.
Fig.3
It will be back to auto operaion just by keep pressing
once again
more than 3 seconds

3. DESCRIPTION

Red LED indicator and LOGO Label
The child protection Plug,UK Type
Rating Label
The child protection Socket,UK Type
+ / ON - / OFF

6. AUTO OPERATION

As the heating device working, the CURRENT
temperature will be increasing and approach the
same as the TARGET temperature:
1. In Figure 2,CURRENT(30
2. The wireless thermostat sends commands to all
the sockets to turn OFF CCRC30F-PLUG.
3. LCD display OFF symbol
4. The red LED indicator
5. All the sockets remain OFF status until the
Fig.1
temperature drops 1 °C
)
°C
in this case the ON command is sent to
all the sockets, turn ON the connected heating device once again.
So the room temperature will automatically remain:
Target Temp. ≥ Room Temp. ≥Target Temp.-1
Thermostat control will detect temperature and transmit signal
every 20 seconds, so there are some time delay in auto operation.

9. SPECIFICAITON

CCWT450RCF, Remote thermostat control:
CURRENT temp. range: 0°C~60°C or 32°F~140°F

TARGET temp. range: 0°C~ 60°C or 32°F~140°F

Temperature Resolution : ±1°C or ±1°F

Each Press of LEFT/RIGHT Button: ±1°C or ±1°F

 2pcs*1.5V AA battery
Wall Mount Holder & Table Stand

CCRC30F-PLUG , Plug in Socket:
Connection: 250 V ~ 50 Hz

Fig.4
Transmission frequency: 433.92 MHz

Maximum Rating: 3250W,13 A

once again
Maximum range: 40 meters in open area

EU,French,UK,Italy,Swiss,USA plug/socket optional

°C ≥ ) TARGET(30 )
= ° C
is OFF
.)
(TARGET - 1 °C
Fig.2
.
