Summary of Contents for Applied Data Systems Bitsy
- Page 1 Bitsy User’s Manual ADS document # 110111-1003A Applied Data Systems www.applieddata.net 9140 Guilford Road Columbia MD 21046 301-490-4007 © 2001 ADS...
-
Page 3: About The Cover Photo

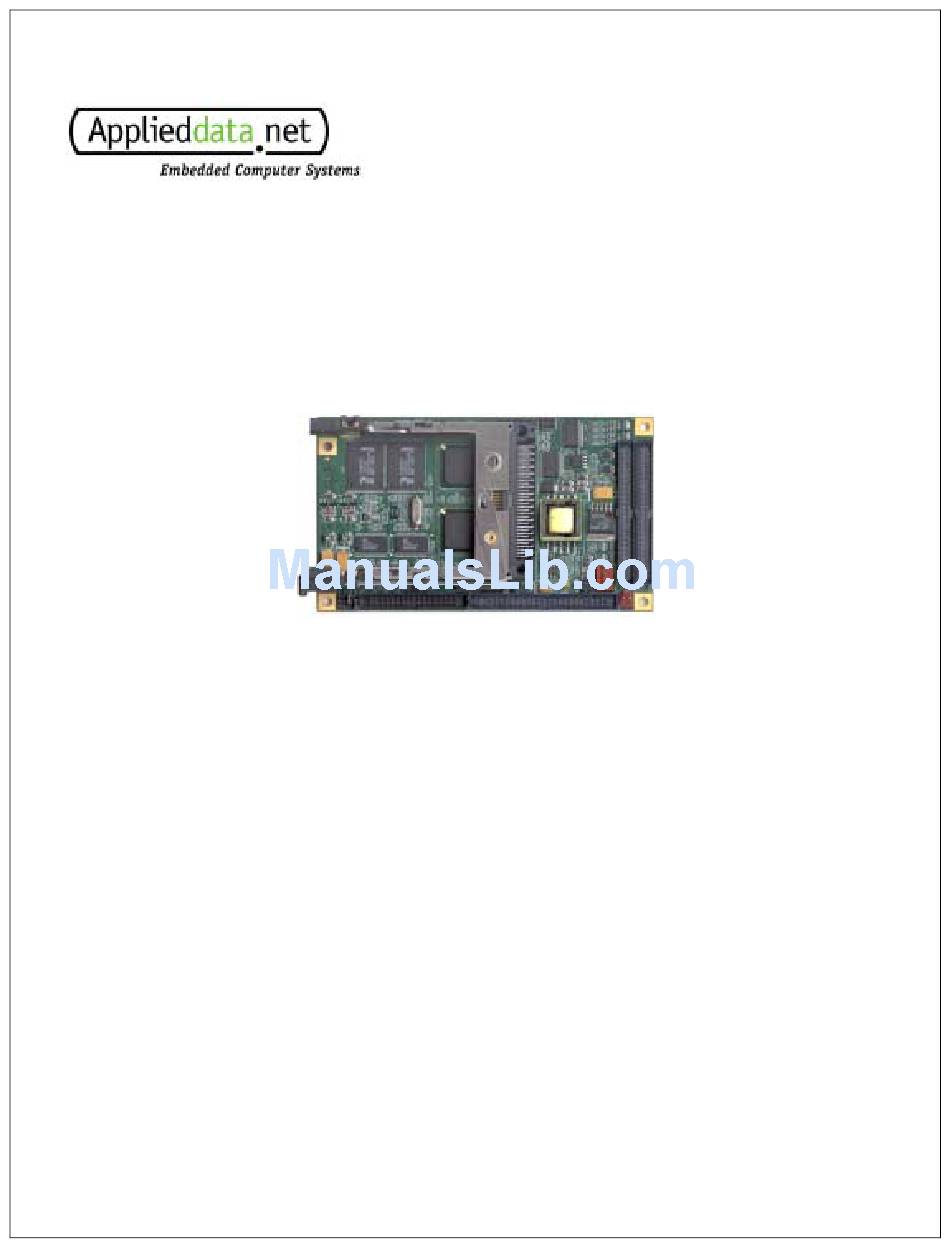

Added information to 4.8.1 Analog Inputs Added SA1111 information 5.1.2: Corrected Rev B description to 12V About the Cover Photo The cover photo shows a fully populated Rev B Bitsy with 16MB of onboard flash. ADS document # 110111-1003A Page i... - Page 4 Bitsy User’s Manual (This page intentionally blank) Page ii ADS document # 110111-1003A...
-
Page 5: Table Of Contents
Bitsy User’s Manual Table of Contents Revision History..............................i About the Cover Photo ............................i Table of Contents ..............................iii Introduction ............................1 Overview ..........................1 Features........................... 1 1.2.1 Processor ........................1 1.2.2 Power Supply........................ 1 1.2.3 Memory ........................1 1.2.4... - Page 6 4.1.2 Electrical Tips......................15 4.1.3 Utilizing the Compact Flash Interface ................ 15 4.1.4 Using the USB Interface..................... 15 4.1.5 Bitsy Power Supply ....................15 Mechanical Specifications ....................16 4.2.1 Mechanical Drawing....................16 4.2.2 Mounting Holes ......................16 4.2.3 Clearances ........................17 Input Power Requirements....................
-
Page 7: Introduction
Bitsy User’s Manual Introduction 1.1 Overview The Bitsy is a full-featured single board computer using the SA-1110 StrongARM RISC microprocessor. The Bitsy is designed to meet the needs of embedded and graphical systems developers. 1.2 Features 1.2.1 Processor • SA-1110 32-bit StrongARM •... -
Page 8: I/O
Bitsy User’s Manual 1.2.6 I/O • ADSmartIO configurable for digital I/O, PWM and A/D inputs • Up to eight analog inputs • Up to 25 Digital I/O • Backlight control signals for intensity and on/off • Passive LCD contrast control •... -
Page 9: Block Diagram
Bitsy User’s Manual 1.3 Block Diagram The following diagram illustrates the system organization of the Bitsy. BITSY 4 Wire Analog +3.3V Touch Screen BATTERY 5-12VDC Power CHARGER +1.75V Supply 12V BL Microphone 1 Speaker 1 PS2 Keyboard CODEC Regulator UCB1200 +3.3VCONT... - Page 10 Bitsy User’s Manual (This page intentionally blank) Page 4 ADS document # 110111-1003A...
-
Page 11: Getting Started
Bitsy User’s Manual 2 Getting Started 2.1 Evaluation Systems Bitsy boards are shipped as evaluation systems designed to get the developer up and running quickly. To use the system, simply plug power supply into the mini DIN-8 receptacle on the system. -
Page 12: Organization Of This Manual
Q: Is there online support? A: Yes. Information about the Bitsy hardware (such as this manual) is available on the ADS product page. ADS has operating-system-specific sites to support its customers. You should have received information about ADS's developers' web site for the operating system you have selected. -
Page 13: Hardware Reference
3.5 Jumper Settings Jumpers on the Bitsy select a variety of operational options. All use 2mm shorting blocks (shunts) to select settings. Make sure power is turned off to the Bitsy when changing the position of a shunt. 3.5.1 JP1, JP2: VEE Contrast Voltage Control... -
Page 14: Jp3: Flat Panel Voltage Select
3.6 Connector Pinouts The following tables describe connector pinouts and the type of connector. At least one pin of every connector is labeled on the Bitsy. Double-row headers on the board are 2 4 6 8... all numbered as shown in the figure to the right. -
Page 15: J1: Lcd Panel Interface Connector
Bitsy User’s Manual 3.6.1 J1: LCD Panel Interface Connector Board Connector: Samtec #STMM-117-02-T-D-SM Recommended Mating Cable: Samtec TCSD Series SA-1110 Pin Signal name Description Name PNL_VEE (contrast); see JP1, J2 PNL_GND Ground PNL_PIXCLK Pixel Clock L-PCLK PNL_HSYNC Horizontal Sync. L-LCLK PNL_VSYNC Vertical Sync. -
Page 16: J2: Pcmcia
Bitsy User’s Manual 3.6.2 J2: PCMCIA Production option: Mating ejector Amp #146019-1 The 68-pin PCMCIA socket conforms to the PCMCIA standard for 3.3V and 5V Type II cards. It will supply up to 500 mA of 5V current. The socket is normally de-energized; the operating system is responsible for turning on the socket when a card is inserted and turning it off when the card is removed. -
Page 17: J4: Manufacturing Test Connector
Bitsy User’s Manual Name Description Number +30V_GND Connection to 30V Ground SMTIO2 Smart IO Digital I/O Bit 2 (Port C6) Not Connected SMTIO3 Smart IO Digital I/O Bit 2 (Port C7) VBATT_POS External Battery Positive Input Not Connected VBATT_NEG External Battery Negative Input... -
Page 18: J9: High Density External Compact Flash Signal Connector
Bitsy User’s Manual 3.6.8 J9: High Density External Compact Flash Signal Connector: Board Connector : Samtec #STMM-125-02-T-D-SM Recommended Mating Connector: Samtec # TCSD Series Pin Number Name Description Ground Ground Connection /CARDBDET2 External Compact Flash Card Detect 2 PCBD10 External Compact Flash Data... -
Page 19: J10: High Density Io Connector
Bitsy User’s Manual Pin Number Name Description PCBD3 External Compact Flash Data /CARDBDET1 External Compact Flash Card Detect 1 /CARDBON_3P3V External Compact Flash 3.3V Power Control 3.6.9 J10: High Density IO connector: Board Connector : Samtec #STMM-125-02-T-D-SM Recommended Mating Connector: Samtec # TCSD Series... -
Page 20: Functions Of Sa1110 Gpios
Bitsy User’s Manual Pin Number Name Description RTS1 COM1 RTS Control Output (RS232) ANIN3 Analog Input to UCB1200 MIC1_IN Stereo Microphone Input VREF Analog Input to UCB1200Reference Voltage MIC2_IN Stereo Microphone Input /RESET_IN External Reset Input /SHDN_RS232 External RS232 Buffer Disable Input +3.3V... -
Page 21: System Integration
The Bitsy has an on-board switching power supply which regulates from input voltage ranges between 5-12V. The input to this supply can come from Bitsy pins DC_IN or VBATT to support dual supply inputs. Should the unit be required to operate from a single supply, it is recommended to utilize the VBATT input. -
Page 22: Mechanical Specifications
Bitsy User’s Manual The Bitsy supply outputs 5V, +3.3V, 30V (LCD VEE), and 1.75V (CPU Core). It is possible to regulate these voltages externally, and supply them through connector pins. See section 4.3 for more information. 4.2 Mechanical Specifications The Bitsy is 3 by 5 inches in size. This section describes the component dimensions and mounting of the board. -
Page 23: Clearances
Bitsy User’s Manual 4.2.3 Clearances The Bitsy has a low profile. It can fit in an enclosure as thin as 0.744-in I.D. Key clearances are as follows: • Highest component: 0.425 inches • Minimum clearance under board: 0.207 inches •... -
Page 24: Emi/Rfi And Transient Suppression
J9, pin 23 and J10, pin 47 4.5 Power Consumption The Bitsy has been designed to use a minimum of power. When not active, the SA-1110 can be put into Idle or Sleep modes, further reducing power consumption. The following measurements were made using production boards running Windows CE and driving an Active TFT display. -
Page 25: Emi/Rfi And Esd Protection
Bitsy User’s Manual 4.7 EMI/RFI and ESD Protection The Bitsy board incorporates a number of industry-leading features that protect it from electrostatic discharge (ESD) and suppress electromagnetic and radio-frequency interference (EMI/RFI). Transient voltage suppressors, EMI fences, filters on I/O lines and termination of high-frequency signals are included standard on all systems. -
Page 26: Lcd Panel
Bitsy User’s Manual 4.8.3 LCD Panel LCD display panels have a wide range of voltage and data requirements. The Bitsy has a number of adjustable voltages to support these requirements. PNL_PWR: Voltage is 3.3 or 5V, depending on setting of JP3. -
Page 27: Board Revision History
Bitsy User’s Manual 5 Board Revision History 5.1.1 Identifying the board revision The product revision number of the Bitsy is etched on the underside of the printed circuit board. That number is 170111-1000x, where "x" is the board revision. 5.1.2 Revision History The following are the most significant changes that have occurred. - Page 28 Bitsy User’s Manual (This page intentionally blank) Page 22 ADS document # 110111-1003A...
