Summary of Contents for Fiberplex FOI-6010

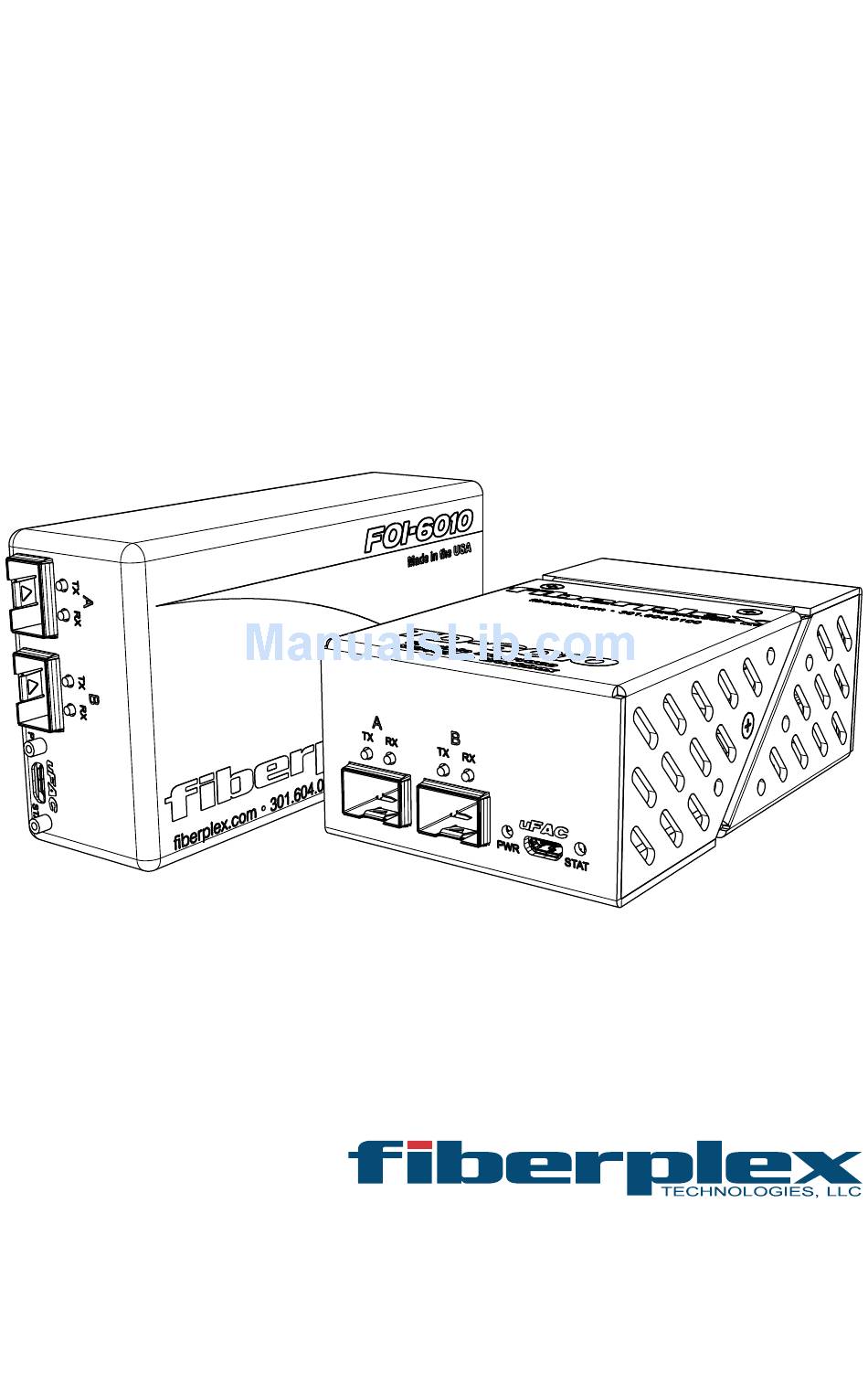

- Page 1 USER MANUAL Flexible Interface SFP/SFP+ Transceiver Workbox FOI-6010 / TD-6010...
-
Page 3: General Installation Instructions
Ambient Temperature Units and systems by FiberPlex are generally designed for an ambient temperature range (i.e. temperature of the incoming air) of 5 °C to 40 °C (41 °F to 104 °F). When rack mounting the units, the following facts must be considered: The permissible ambient temperature range for operation of the semiconductor components is 0 °C to +70 °C (32 °F to 158 °F) - Page 4 The information in this document has been carefully checked and is believed to be accurate at the time of publication. However, no liability is assumed by FiberPlex for inaccuracies, errors, or omissions, nor for loss or damage resulting either directly or indirectly from use of the information contained herein.
-
Page 5: Key Features
Functionally, the FOI-6010 and TD-6010 are identical. The only differences are the packaging and power supply. The FOI-6010 is part of the FOI line of products designed for ruggedized mil applications. It is housed in the familiar FOI shielded can enclosure. For standalone applications it can be powered by adding a PSQ-4909 AC supply or a PSQ-4920 DC power supply (not included). -
Page 6: Getting Started
If the shipment is incomplete, if there is mechanical damage, or if the unit fails to operate notify FiberPlex and make the shipping materials available for the carrier's inspection. - Page 7 Front Indicators/Connections Figure 1 TD-6010 (left) and FOI-6010 (right) Front Face SFP Port A – Install SFPs in this slot. These slots conform to the SFP MSA (INF-8074i more information later in this manual) as well as non-MSA pinouts. They will only support transceiver SFPs. Any standard MSA or non-MSA complaint SFP can be used in these slots including but not limited to optical modules with data rates in the range of 155Mbps to 12.5 Gbps, Ethernet copper modules, video copper modules, copper quadrax SFP...
- Page 8 Figure 2 TD-6010 (left) and FOI-6010 (right) Rear Face Circular DC Power Connection – DC power entry for the unit. On the FOI-6010 this is a Lemo connector designed to interface with either a PSQ power module or RMC chassis. On the TD-6010 this is a standard DC connection for use with the included DC wall power supply.
- Page 9 Flexible mounting allows the FOI-6010 to be chassis mounted or standalone configuration. Any combination of 8 FiberPlex FOI units can be mounted in a RMC-3101 using CMA-2001 chassis mount adapters. The RMC-3101 can accommodate hot swapped redundant power. Alternately, the FOI-6010 can be used in a standalone application when paired with a PSQ-4909 for full range AC operation or the PSQ-4920 for 12-48VDC operation.
-
Page 10: Handling Warnings
Identify the Latch Type of the SFP Module SFP Modules have various latching mechanisms to secure them into the SFP Cage of a device. The FiberPlex WDM can support a host of manufacturers and brands of SFP Modules so the user may encounter any number of different latches. - Page 11 Inserting a Module Attach an ESD-preventative wrist or ankle strap, following its instructions for use. Disconnect and remove all interface cables from SFP Module. If the SFP Module has a Bail Clasp , close the Bail Clasp before inserting the SFP Module.
-
Page 12: Other Considerations
Although power can be supplied across the port, it is recommended that the appropriate external supply for the TD/FOI-6010 be used. Power supplied through the USB port itself is not sufficient to power the device with SFPs installed. - Page 13 SFP MSA Compliance The SFP Multi-Source Agreement (MSA) is an agreement that was drafted among competing manufacturers of SFP optical modules. The SFF Committee was formed to oversee the creation and maintenance of these agreements including the SFP MSA designated as INF-8074i. This agreement describes a mutually agreed upon standard for the form and function of SFP modules.
-
Page 14: Specifications
Specifications 2.56 4.50 [65.1] [114.3] [10.6] Figure 7 FOI-6010 Dimensions... - Page 15 2 SFP+ MSA (SFF-8431, SFF-8432, SFF-8433) compliant slots, data rate 0 – 12.5 gigabits PHYSICAL SPECIFICATIONS Case Dimensions Length Width Height Weight FOI-6010 Size 4 4.5 in (114 mm) 1.453 in (37 mm) 2.56 in (65 mm) 2.0 lb (0.9 kg) TD-6010 4.5 in (114 mm)
- Page 16 18040-412 Guilford Rd. • Annapolis Junction, MD 20701 fiberplex.com • clients@fiberplex.com • 301.604.0100 6010UM-1607...
