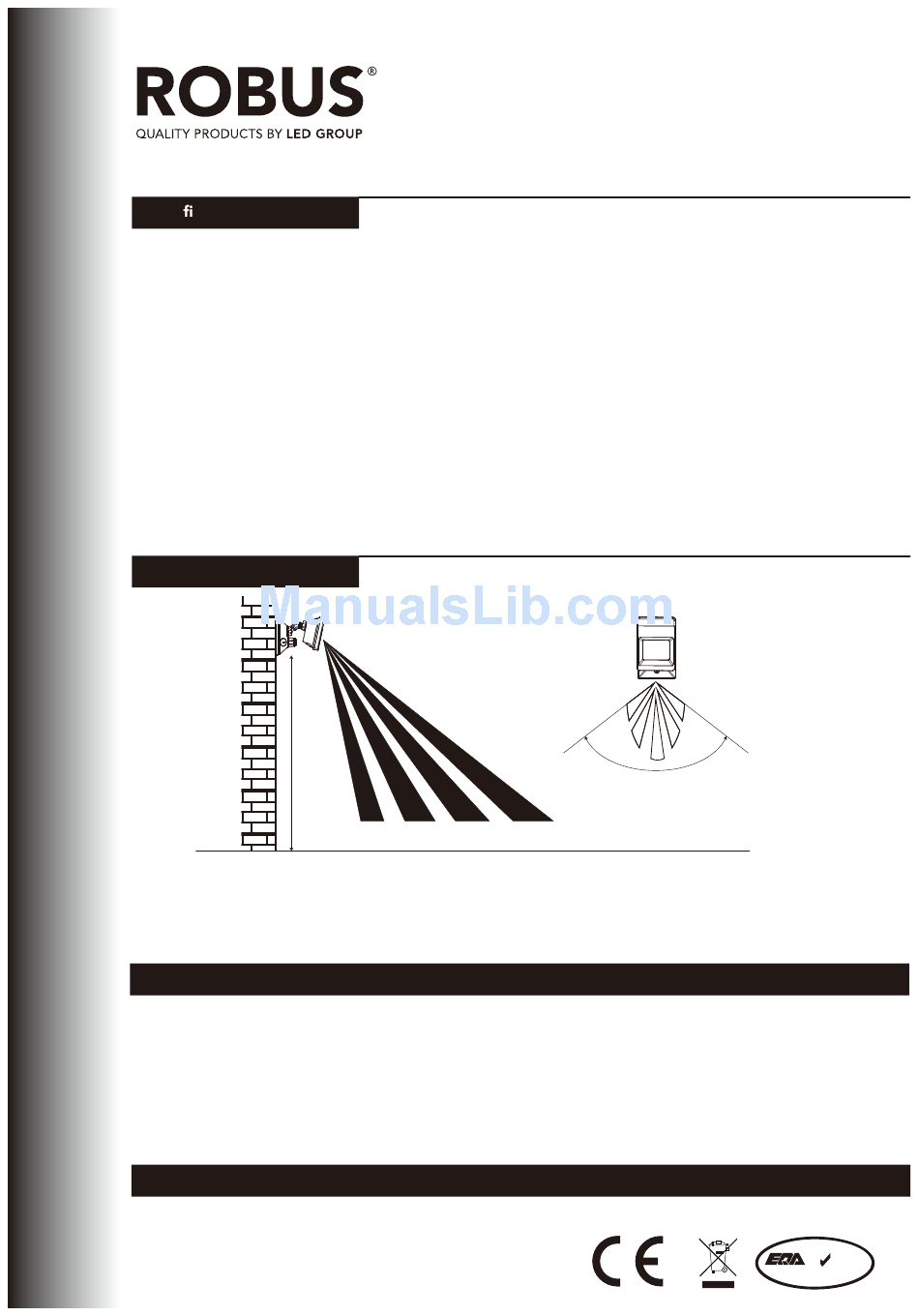

Robus R110PIR3W-24 User Manual

Speci cation:

Features:

2.5m
Installation considerations:
1 Mount luminaire on solid surface.
2 Optimal mounting height is 1.8 to 2.5 meters (6 to 8ft) above ground level.
3 Before selecting mounting location please note that movement across the sensor is more
effective than movement directly toward or away from the sensor
4 To avoid nuisance triggering, the sensor should be directed away from heat sources.
5 Do not aim the sensor towards the sun or reflective surfaces
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household
waste (WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a
collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are
purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly.
It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal
household waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 090414
IP66 110
WIRE
R110PIR3W-24
Please read instruction before commencing installation and retain for future
reference.
A PIR (Passive Infra Red) sensing device which continuously scans a preset operating
zone and immediately switches the lamp on when it detects movement in that area.
Supply:
Electrical Protection:
Output load:
Operating Temp:
Dimensions(mm):
Weight:
Detection range:
Time Delay:
Light Level Adjustment:
IP:
Warranty:
Terminals suitable for cable sizes from 0.75mm2 to 1.5mm2.
Suitable for mounting on normally flammable surface
Note:
Product technical information and specification may change over time without prior
notification. For the latest technical information please visit our web site
www.ledgrouprobus.com or www.robusdirect.com
1.2m 4m 8m
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
o

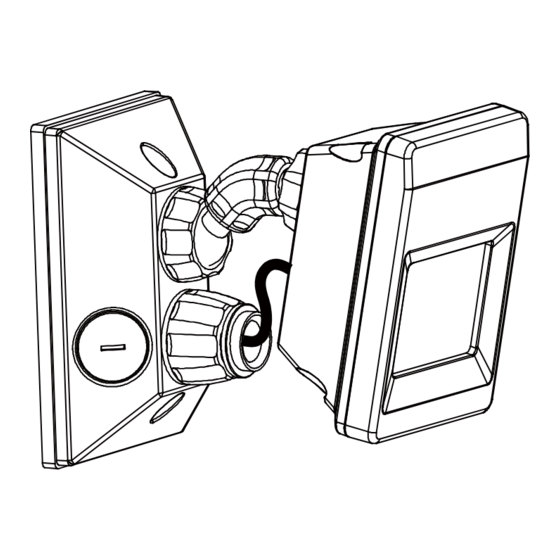

SQUARE PIR, 3
220-240V 50/60Hz
Class II
Max. 2000W incandescent lamp,500W fluorescent, 300W LED
-5°C < ta < 40°C
155(L) X 115(W) X 75(H)
0.3Kg
Approx.110º (horizontal), Max. 15 meters
adjustable and sensitivity adjustable
From (10±5) seconds to (20±3) minutes adjustable
Daylight to night adjustable
IP66
5 years
o
110
15m
ISO 9001:2008
