Summary of Contents for JBJ Picotope

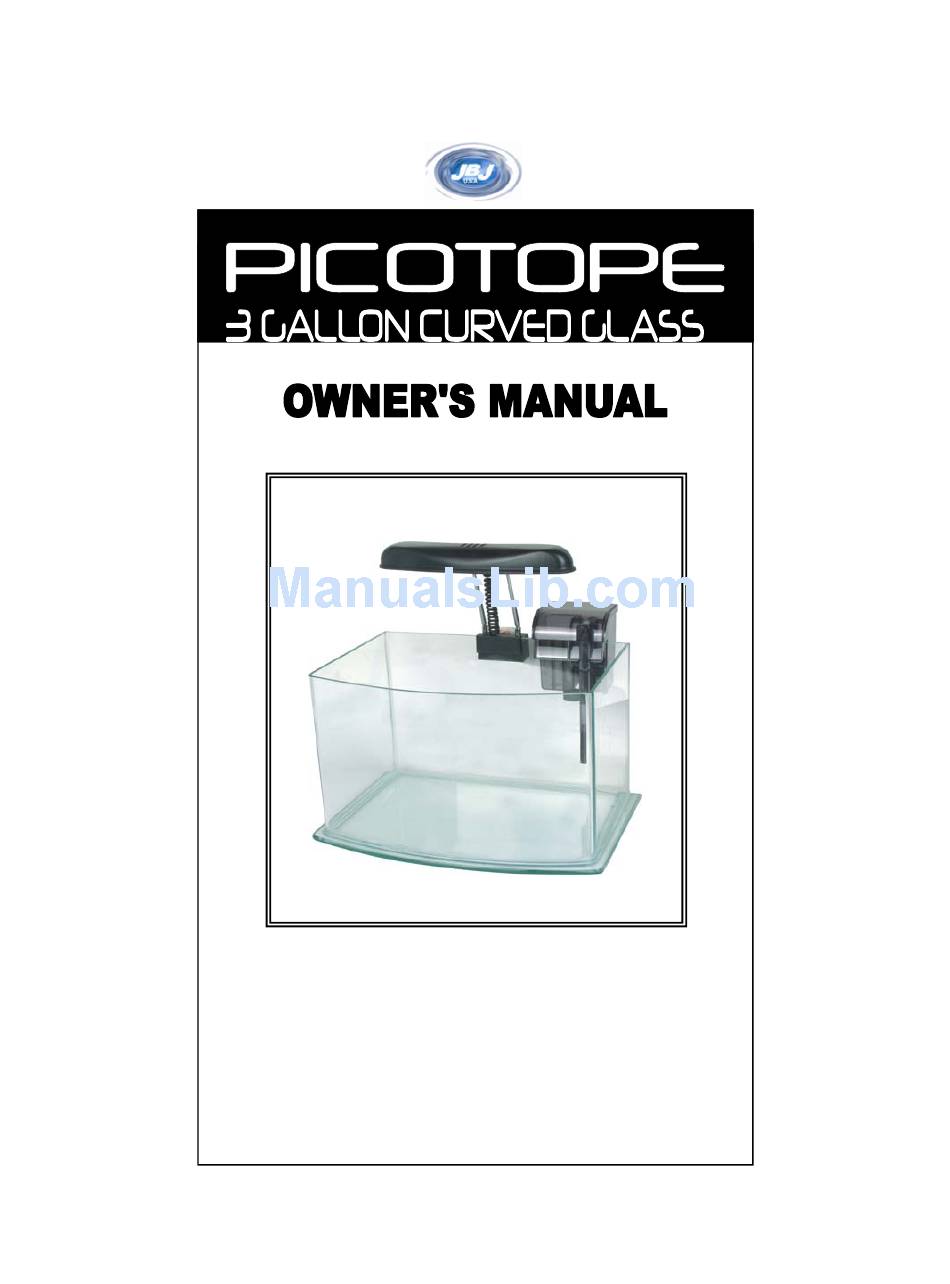

- Page 1 TRANSWORLD AQUATIC ENTERPRISES INC...
- Page 2 TABLE OF CONTENTS Important Safety Instructions 3—5 Picotope Parts View 6—9 Introduction 10—11 Getting Started Lighting Maintenance Procedures 14-15 Maintenance Log 16-18 Warranty Information Notes 20-21...
- Page 3 WARNING To guard against injury, basic safety precautions should be observed, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. DANGER To avoid possible electric shock, special care should be taken since wa- ter is employed in the use of aquarium equipment. For each of the following situations, do not attempt to repair yourself: return the appli- ance to an authorized service facility for service or discard the appli- ance.
- Page 4 E. Close supervision is necessary when any appliance is used by or near children. F. To avoid injury, do not contact moving parts or hot parts such as heaters, reflectors, lamp bulbs, and etc. G. Always unplug an appliance from the outlet when not in use, be- fore putting on or taking off parts, and before cleaning.
-
Page 5: Operation
CLEANING It is important to keep this appliance clean. Always unplug the appli- ance before performing maintenance or cleaning of the exterior of this hood. Wipe exposed surfaces carefully with a damp terrycloth to re- move any dust or mineral deposits which may collect over time. Make sure all surfaces are dry before re-plugging into an electrical outlet. - Page 6 PARTS EXPLODED VIEW & IDENTIFICATION 3 GALLON CURVED GLASS—STARTER TANK PARTS EXPLODED VIEW & IDENTIFICATION PICO FILTER...
- Page 7 3 GALLON CURVED GLASS REPLACEMENT PARTS LIST & DESCRIPTION PART Name MX-30- 0 Tank Only WF-2015 1 Filter Box Cover WF-2015 2 Mechanical Sponge WF-2015 3 Biological Sponge WF-2015 4 Flow Valve WF-2015 5 Intake Tube Elbow WF-2015 6 Filter Box WF-2015 7 Impeller / Magnet Assembly Motor...
- Page 8 PARTS EXPLODED VIEW & IDENTIFICATION LAMP FIXTURE...
- Page 9 REPLACEMENT PARTS LIST & DESCRIPTION PART Name CL-609 Light top Cover Aluminum Reflector CL-609 Lamp Clip CL-609 CL-609 CF Lamp Lamp Cover CL-609 Screws CL-609 CL-609 Telescoping Arms CL-609 Spiral Cord CL-609 Switch Cover CL-609 Switch Clamp Base CL-609 10 Clamp Base Bottom Cover CL-609 11 Magnetic Power Supply...
-
Page 10: Specifications
This beautiful glass desktop is an excellent starter tank that offers rounded glass corners for panoramic viewing, beveled glass bottom, a 9 watt 50/50 Clamp on Lamp, and Pico Powerfilter. The PICOTOPE is sure to add a touch of elegance and style to any room it enters! -
Page 11: Filter Specifications
CRYSTAL CLEAR CURVED GLASS The PICOTOPE starter aquarium offers panoramic viewing with smooth rounded corners for maximum viewing and enjoyment. PICO POWERFILTER The PICO Powerfilter is a revolutionary innova- tion that offers the same 3 stage filtration com- monly designed for larger filters in a space- saving hang-on design. -
Page 12: Handling Precautions
Rinse Activated Carbon which is located in the rear filter compartment under the sink for 30 seconds or until water runs clear. Fill the main body of the PICOTOPE until water reaches the bottom of the clamp for the light fixture. Once PICOTOPE is filled, plug PICO pow- erfilter power cord into an approved electrical outlet with a fuse or cir- cuit breaker. - Page 13 Telescoping Arms Light Switch TURNING ON YOUR LIGHTING SYSTEM Your PICOTOPE is pre-installed with a dual color lamp that offers day- light and blue actinic light in one compact design. A. Plugging the Remote Ballast 1. Plug power-cord from the remote ballast into an outlet strip that is properly approved and equipped with a fuse or circuit breaker.
- Page 14 Regular maintenance is the key to a successful thriving aquarium. Main- taining an aquarium can be very easy with a regular cleaning sched- ule. WATER CHANGES A. Water changes should be carried out on monthly to bi-monthly schedule depending on how much bio-load is kept. B.
-
Page 15: Changing The Lamp
SAFETY Always disconnect the power supply from the wall outlet when performing lamp changes CHANGING THE LAMP Your PICOTOPE is installed with the following: Model Bulb Item # Description Kelvin MX-30 B9-BW10K 9 Watt Com- Half 10K Day- 3 GALLON... - Page 16 DATE MAINTENANCE...
- Page 17 DATE MAINTENANCE...
- Page 18 DATE MAINTENANCE...
-
Page 19: Warranty Information
WARRANTY INFORMATION 6 Month Limited Warranty This Picotope aquarium is warranted to the original purchaser against defective material and workmanship for 6 months from the date of original purchase. This warranty is valid only under the following conditions: additions, modifications, or changes made to the product by the purchaser and not by the manufacturer shall void this warranty. - Page 24 Transworld Aquatic Ent., Inc 3730 West Century Blvd, Suite 3 Inglewood CA 90303 Phone: 310-672-0480 Fax: 310-672-7261 E-mail: sales@jbjlighting.com...
