Summary of Contents for JBJ 28g Nano Cube CF-QUAD

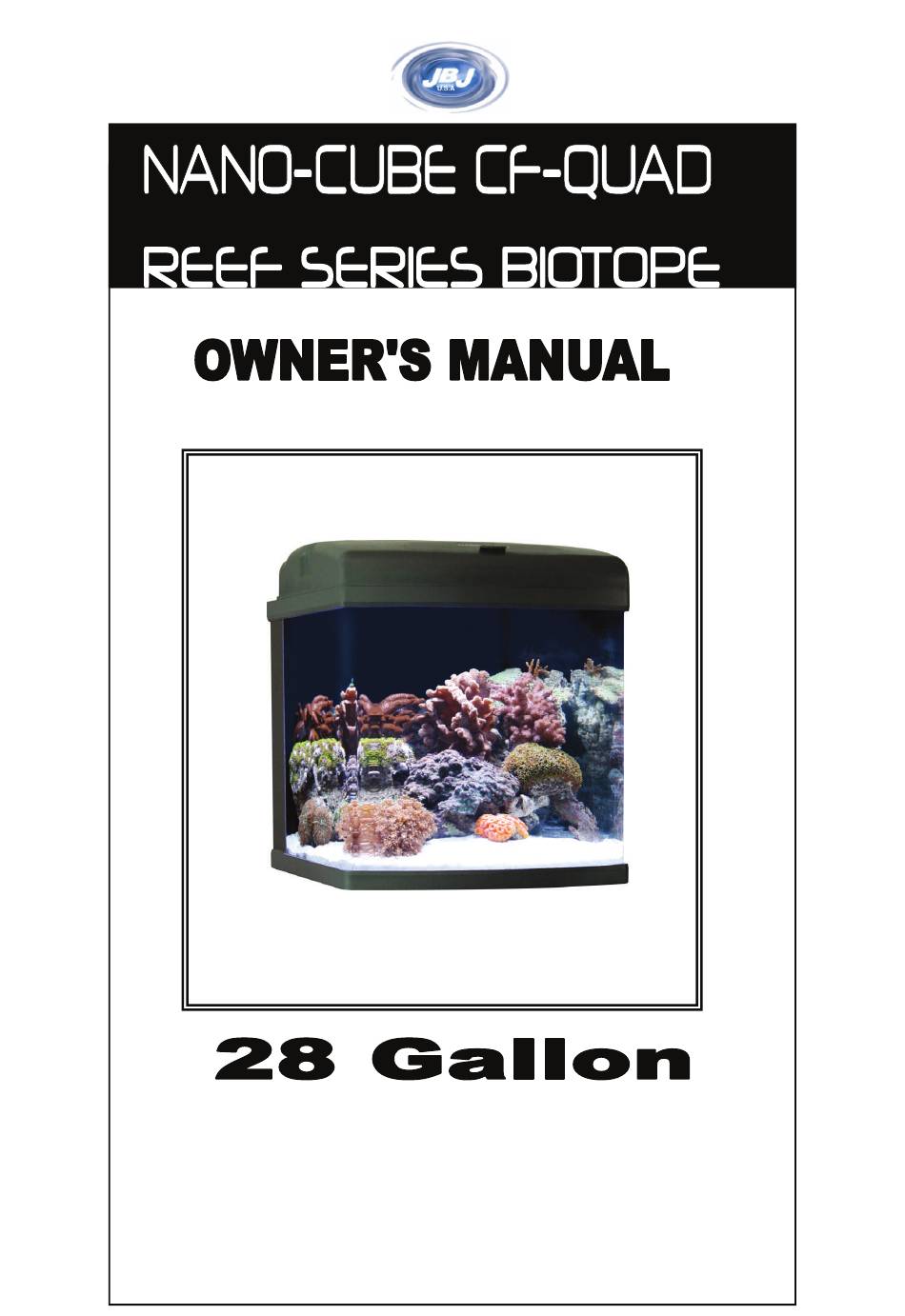

- Page 1 TRANSWORLD AQUATIC ENTERPRISES INC...
- Page 2 TABLE OF CONTENTS Important Safety Instructions 3—5 28 Gallon Nano Cube CF-QUAD - 6—7 PARTS PAGE Introduction 8—11 Getting Started Lighting Maintenance Procedures 14-15 Specifications 16-17 Maintenance Log 18-19 Maintenance Notes 20-21...
- Page 3 WARNING To guard against injury, basic safety precautions should be ob- served, including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. DANGER To avoid possible electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the following situations, do not attempt to repair your- self: return the appliance to an authorized service facility for ser- vice or discard the appliance.
- Page 4 (Continued from pg 3) If the plug or the receptacle do get wet, DON’T unplug the cord. Disconnect the fuse to the circuit breaker that supplies power to the appliance. Then unplug and examine for the pres- ence of water in the receptacle. Close supervision is necessary when any appliance is used by or near children.
-
Page 5: Operation
Make sure that the appliance is set on a level surface to pre- vent undue stress on the aquarium tank from stress and leaks. It is not recommended that this appliance is set upon coffee ta- bles, end tables, T.V. stands, or night stands unless the structure has been properly tested to within the weight limits of the aquarium. - Page 6 PARTS EXPLODED VIEW & IDENTIFICATION...
- Page 7 PART Name PART Name MT-60- 1 Feeding Lid MT-60- 26 Sliding Door MT-60- 2 Canopy MT-60- 27 Canopy Splash Guard MT-60- 3 Strain Relief Bushing MT-60- 28 Return Nozzle MT-60- 4 Strain Relief Bushing MT-60- 29 Canopy Clip MT-60- 5 CF-QUAD Cable MT-60- 30 Canopy Leg Stand...
-
Page 8: Illumination System

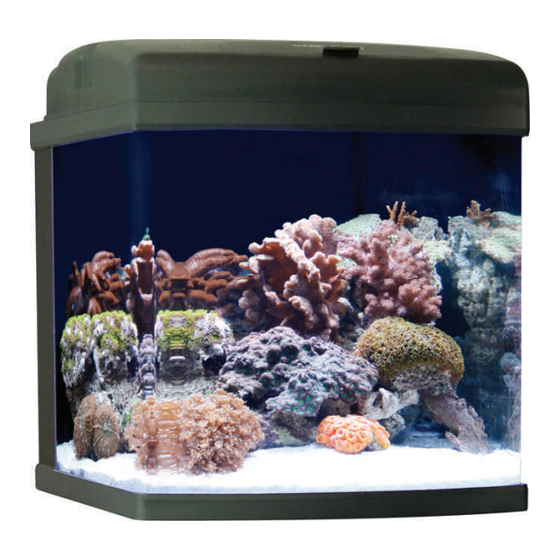

THE ULTIMATE REEF SERIES BIOTOPE Thank you for purchasing the 28g Nano Cube CF-QUAD —Reef Series Biotope. This MEGA powered “ALL-in-One” aquarium fea- tures many integrated high-tech equipment while still keeping the aesthetic appeal and contemporary look of a modern aquarium. - Page 9 CRYSTAL CLEAR CURVED GLASS All Nano-Cube Aquariums offer panoramic viewing with smooth rounded corners for maximum viewing and enjoyment. INTEGRATED 3 STAGE FILTRATION Our comprehensive 3 Stage Filtra- tion system keep aquariums spar- kling clean and is discreetly hidden behind a false wall to provide an uncluttered and professional look and feel.
- Page 10 3 STAGE FILTER Mechanical Filtration: Filter Sponge traps free floating particulate matter and debris. Chemical Filtration: Activated Carbon bag removes dissolved organics and odor. Biological Filtration: Ceramic Ring bag provides internal/external surface area for housing beneficial bacteria to oxidize harmful ammonia and nitrite that accumulate in the aquarium from fish wastes, over- feeding, and normal biological processes.
- Page 11 Heater Placement (not included) A submersible heater should be placed in the designated heater col- umn. This column ALWAYS has a con- stant water level to keep the heater submerged and to prevent breakage. Most tropical fish and corals prefer a range between 74-80F.
-
Page 12: Handling Precautions
HANDLING PRECAUTIONS Never attempt to move a full or partially full Nano-Cube. Never lift by grabbing the aquarium frame Never use cleaners that contain ammonia to clean the glass sur- faces. Always lift and carry the Nano-Cube from underneath giving support to the bottom at all times. CHOOSING A LOCATION A. - Page 13 (1) 105 CF-QUAD Combo (2) Cooling Fans (4) Nite-Vu LEDs (1) Integrated Electronic Ballast (1) Mirror Reflector (1) Auto-Shut Off Thermal Protector TURNING ON YOUR LIGHTING SYSTEM (Daytime) Your 28g Nano-Cube CF-QUAD is pre-installed with a dual illu- mination system that offers daylight and nightlight illumination. A.
- Page 14 Regular maintenance is the key to a successful thriving aquar- ium. Maintaining an aquarium can be very easy with a regular cleaning schedule. Changing filter media is fast and easy with our Removal Filter Media Basket. Simply, lift up on the handle and the water will drain out from the bottom.
-
Page 15: Changing The Lamps
SAFETY Always disconnect the power supply from the wall outlet when performing lamp changes CHANGING THE LAMPS Your 28g Nano-Cube CF-QUAD is installed with the following: Model Bulb Item # Description Kelvin 28g NanoCube B105-BW10K 105 Watt CF- Half 10K/Half CF-QUAD QUAD 7100K Actinic... - Page 16 28g NANOCUBE CF-QUAD- SPECS PRODUCT NAME: 28G NANOCUBE CF-QUAD ITEM CODE: MT-602-LED TANK VOLUME: 28 GALLONS GLASS THICKNESS: 6mm 105 Watt Compact Fluorescent Quad Lamp Kelvin: 10K Daylight/ 7100K Actinic Nite-Vu LED - (4) blue moonlights Accela Pumps (2) : 266 gph / 16 watt Cooling Fans (2) : 3000 RPM / Ball Bearing Type Ballast: Integrated Energy Efficient Electronic Customer Service Information...
- Page 17 Optional Stand: 18” x 22” x32” Item Code: MTS-60 Ventilated Side Cabinets • 32” high • Chiller Storage • Hardware Included •...
-
Page 18: Maintenance
DATE MAINTENANCE... - Page 20 Transworld Aquatic Ent., Inc 3730 West Century Blvd, Suite 3 Inglewood CA 90303 Phone: 310-672-0480 Fax: 310-672-7261...
