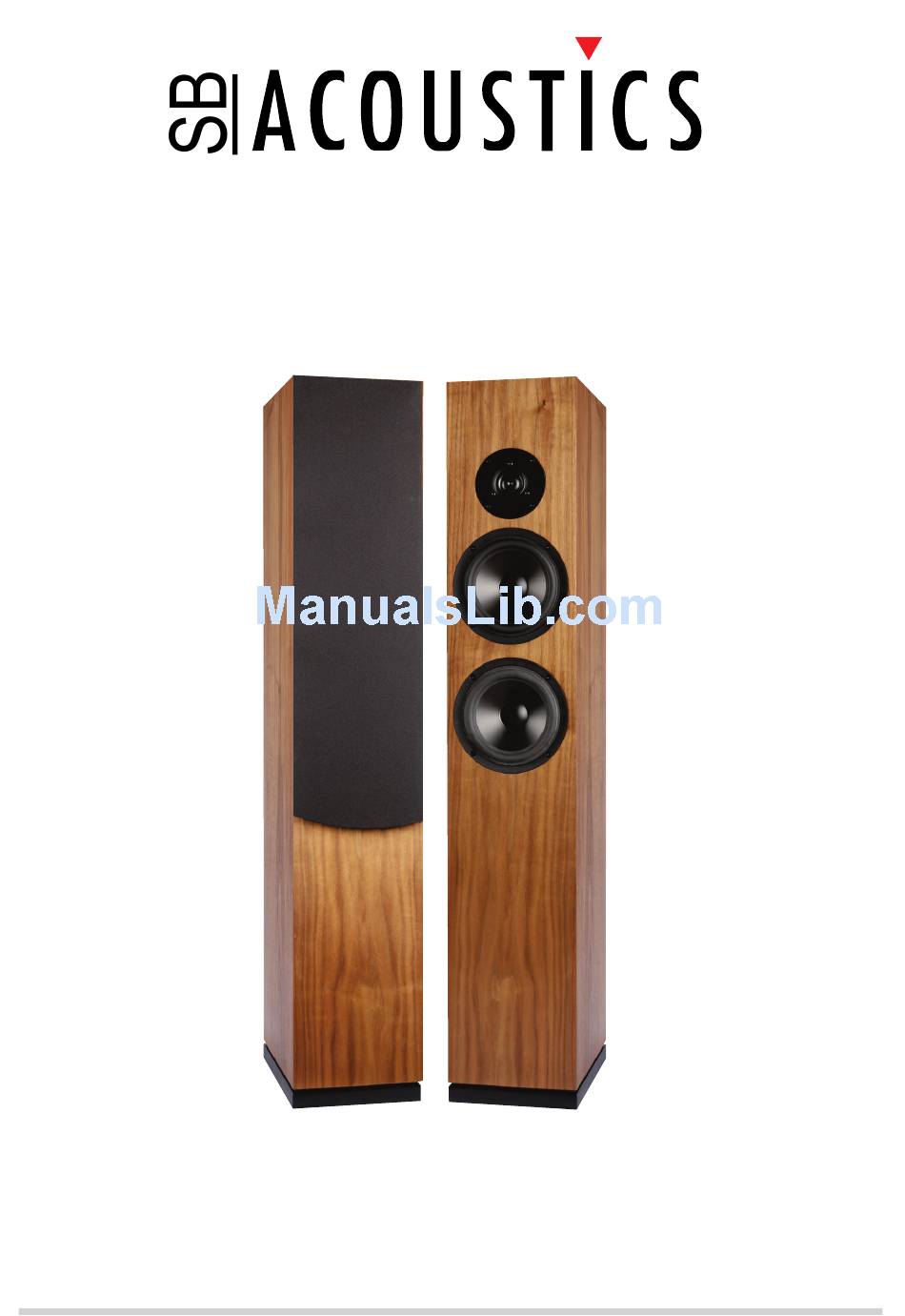

- Page 1 Arya Kit User Manual...
- Page 2 Manual | Arya Kit Technical speci cation : Frequency range : 44-28000 Hz +/-3 dB Sensitivity (2.83V / 1m) : 87.5 dB Nominal impedance : 4© Max SPL : 107 dB Recommended ampli er : 50-200W Cross-over frequency : 3000 Hz Speaker type : 2½-way Floor Stand...
- Page 3 Manual |Arya Kit...
- Page 4 Manual | Arya Kit Mechanical drawing (size in mm)
- Page 5 Manual | Arya Kit...
- Page 6 Manual | Arya Kit...
- Page 7 Manual | Arya Kit...
- Page 8 Manual | Arya Kit Damping material position (size in mm)
- Page 9 Manual | Arya Kit...
- Page 10 - High frequency driver SB29RDC-C000-4 (sold separately)..... 1 pc - Low frequency drivers 6” SB17MFC35-8 (sold separately)..... 2 pcs - Arya kit crossover (sold separately) ..........1 pc - Hex socket screw M4 x 20mm (for drivers)........12 pcs - Hex socket screw M4 x 30mm (for pedestal) .........
- Page 11 Manual | Arya Kit 1. Take out the cabinet from the packaging and take out the raw damping material from the cabinet 2. Cut the raw damping material to 12 pcs of damping according to the cutting pattern diagram 3. Place each damping into the cabinet according to position diagram.
- Page 12 Manual | Arya Kit 4. Detach the pedestal by loosen the four screws in each corner. 5 . P l a c e t h e c r o s s o v e r o n the pedestal, then put the input...
- Page 13 Manual |Arya Kit 6. Pass the three pair of the speaker w i r e t h r o u g h e a c h h o l e i n the bottom panel of the cabinet. 7. Seal all the cable holes with hot melt glue 8.
- Page 14 Manual | Arya Kit 9. Mount the terminal panel into the terminal holes at the back side 10. Mount the pedestal back to the cabinet then tighten it by tightening all 12 screws 11. Pull the three pair of cables...
- Page 15 Manual |Arya Kit 12. Hook up the cable to the woofer and tweeter terminal 13. Mount the driver to the cabinet and screw them...
