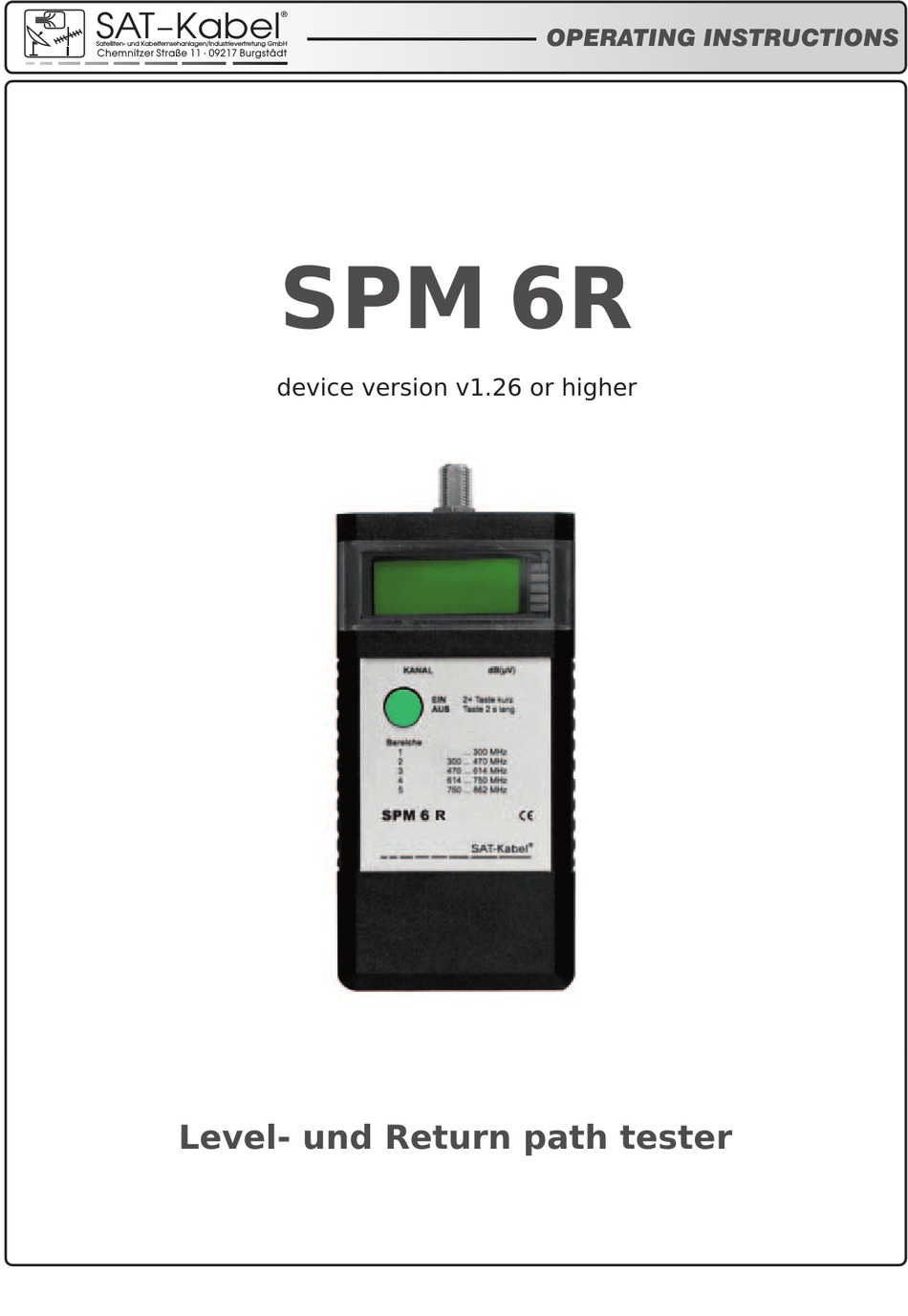

Page 1: Operating Instructions
SAT Kabel ® OPERATING INSTRUCTIONS Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Chemnitzer Straße 11 . 09217 Burgstädt SPM 6R device version v1.26 or higher Level- und Return path tester... - Page 2 ®. We thank you for buying of a product of the company SAT-Kabel This operating instructions shall help you to understand the functions of the instrument and to ease its use. If you have questions about this instrument or suggestions for further improvements, please get in touch with us.
-
Page 3: Table Of Contents
Content General .......................4 Scope of delivery ..................4 Functional elements..................4 Preparation level and return path test ............Switch on the unit ..................5 Forward scan and evaluate .................5 SCAN with LED and bar display..............5 Evaluation ....................6 Single channel display and evaluation............6 Channel designations .................7 Single channel selection and manual reading of the level values....7 Return path test..................8 Downstream ....................8... -
Page 4: General
1. General The processor-controlled level tester SPM 6R is by its compact and handy design the ideal device for fast level control in the NE 4 - primarily at system outlets. This level tester has been developed for the field sales staff (media consultant) of Kabel Deutschland for easy checking of analog and digital offers of the cable connection at the subscriber. -
Page 5: Switch On The Unit
LEDs. If the key is not pressed after switching on a second time, then switches the SPM 6R once again off - also after 2 minutes of inactivity. -
Page 6: Evaluation
LED/bar graph range frequency range (channels) ... 300 MHz ( D113, S11, S20) 300 ... 470 MHz ( D378, D442, D466) 470 ... 614 MHz ( D538, D610) 614 ... 750 MHz ( D746 ) 750 ... 862 MHz ( D818 ) A not yet existing channel allocation above 470 MHz or 614 MHz in the network level 3 (lack of network expansion and lack of channel allocation) leads to corresponding red LED displays. -
Page 7: Channel Designations
7. Single channel display and evaluation By again short press changes the display in the "single- short channel evaluation". In the display now three items are visible: Top left, appears the name of the first read reference channel, here, » D114 «, right above the level in dB(μV), here »... -
Page 8: Return Path Test
CAUTION: If the button for more two minutes is not operated, switches the level testers automatically off and must be restarted by short press again the button. (see item 5) 8. Return path test 8.1 Downstream Was pressed in the menu Scan – see item 5, under 2 | – the button longer (>1 s), so appears this display of the te- lemetry frequency (downstream) with an associated level. -
Page 9: Charging The Device
10. Charging the device The level tester can be loaded either by the supplied 230 V power supply (DC 12 V/450 mA output) or with the included car charger cable inserted into the cigarette lighter of a car. After connecting the charge process begins and the top range LED flashes red. -
Page 10: Functional Scheme
12. Funktional scheme short automatic after 1 s short >1 s short long short long short short short 13. Cleaning and maintenance The outer surfaces should be cleaned with a soft, dry, lint-free cloth. For cleaning do not use any aggressive cleaners or solvents. -
Page 11: Annex
These cannot be charged in no case the manufacturer and the device. And remember: the SPM 6R is a device to quickly check a TV cable connection with the required accuracy. For a complete assessment and troubleshooting a different measurement... -
Page 12: Adjustment Of The Downstream Frequency
A. Adjustment of the downstream frequency Prerequisite: the device is switched off! 1 | When switched off briefly press the button. The unit short will turn on as described in section 2. However, it may at first not pressed again the button. If after 8 s »... -
Page 13: Adjustment Of The Channel List
Adjustment of the channel list B.1 Set-up procedure Prerequisite: the device is switched off! 1 | When switched off briefly press the button. The unit short will turn on as described in section 2. However, it may at first not pressed again the button. If after 8 s »... -
Page 14: The 4 Adjustment Positions
B.2 The 4 adjustment positions B.2.1 Channel selection The channel selection is carried out as described in section B.1. B.2.2 Activating and assigning a channel 1 | After a channel (cursor left) has been selected, may by once long press button the cursor be moved to the next position above the right. -
Page 15: To Leave The Programming Mode
This guarantee is valid for new instruments purchased in Germany. New instruments and their components, which are defective because of production faults and/or material faults, are repaired from SAT-Kabel®. For wear parts, like accumulators, keyboards, housings, bags, connecting cables this guarantee is valid for 6 month from the purchasing date. - Page 16 ® SAT-Kabel Satelliten- und Kabelfernsehanlagen/Industrievertretung GmbH Telephone: +49 3724 6665-0 Telefax: +49 3724 6665-44 info@sat-kabel.de • www.sat-kabel.de Errors, technical amendmends and developments are subject to change without notice! © 2013 SAT-Kabel®...
