Genie IP8GESP/E User Manual

8 Ports Full Gigabit PoE Ethernet Switch
8 Ports Full Gigabit PoE Ethernet Switch is an unmanaged Ethernet switch designed for Gigabit
Ethernet access and PoE applications. It provides eight Gigabit downlink ports, one Gigabit uplink
Ethernet port, and one Gigabit optical SFP module slot. The eight downlink ports support 802.3af/at
standard and feature Max. 30W PoE power output of single port, Max. 120W of whole machine. The
device supports one-key VLAN which isolates the communication between downlink and uplink
ports. It can be widely used in security surveillance, hotels, schools, SMB engineer
occasions.

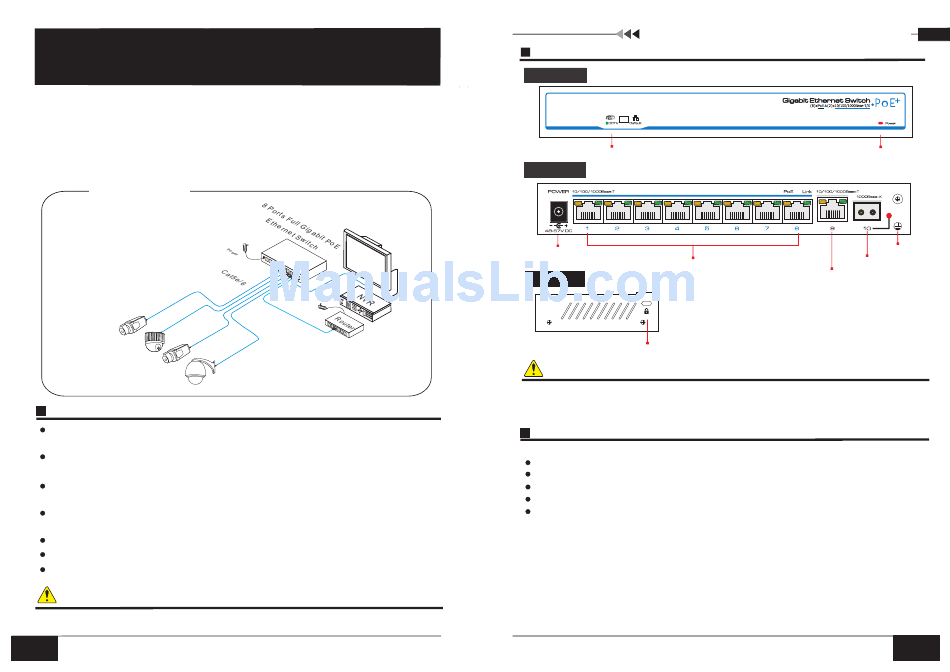

Application
PoE Camera
PoE Dome Camera
PoE Camera
PoE PTZ Camera
Feature
Provide 8*10/100/1000Base-T Ethernet ports(PoE) ,1* 10/100/1000BASE-T
Main Function:
Ethernet ports and 1*gigabit SFP ports;
Compliance with standards: IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、
IEEE802.3X、 IEEE802.3af/at;
PoE Power Supply: With 8x gigabit PoE RJ45 ports, each port supports max. 30W PoE output,
whole machine reaches 120W PoE power output;
One-key CCTV: Quickly achieve isolation among downlink ports vis dial switch, effectively
restrain network storm, improve network feature;
Protection: Support 6KV surge immunity, EFT testing standard;
Operation Environment: Support -10℃~45℃ wide-temperature;
Operation: Plug&play, convenient to use, support desktop, wall-mounted installations.
Notice
The transmission distance depends on the signal source and cable quality; standard Cat5e/6
Ethernet cable is strongly suggested for reaching the maximum transmission distance!
1
User Manual
V1.0
ing and other
L C
D
8 Ports Full Gigabit PoE Ethernet Switch
Board Diagram
Front Board
CCTV-mode Toggle Switch
Back Board
Power Port
PoE Downlink Ethernet Ports
Side Board
Kensington Security Slot
Notice
1) Device must be connected with lightning protection grounding; otherwise protection level will be
greatly reduced; please use above No.20 wire to connect the grounding terminal;
2) The device requires rebooting after the dial switch has been utilized.
Installaiton Steps
Please check the following items before installation, if it is missing, please contact the dealer.
Ethernet Switch
Power Adapter
AC Power Cable
Accessory
User Manual
Please follow installation steps as below:
1) Turn off the power of all the related devices before the installation; otherwise the device would be
damaged;
2 Connect PoE cameras with 1~8 downlink ports of product by Ethernet cable; )
3 Connect UPLINK port of product with NVR or PC by Ethernet cable; )
4) Connect power adapter;
5) Check if the installation is correct, equipment is in good condition, the connection is stable,then
power on for system;
6) Ensure the Ethernet equipment with power on can work properly.
4口百兆以太网交换机
Power LED
Grounding
Uplink Optical Port
Uplink Ethernet Port
1pc
1pc
1pc
1pc
1pc
