InnoMedia iPBX-124 Quick Install Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

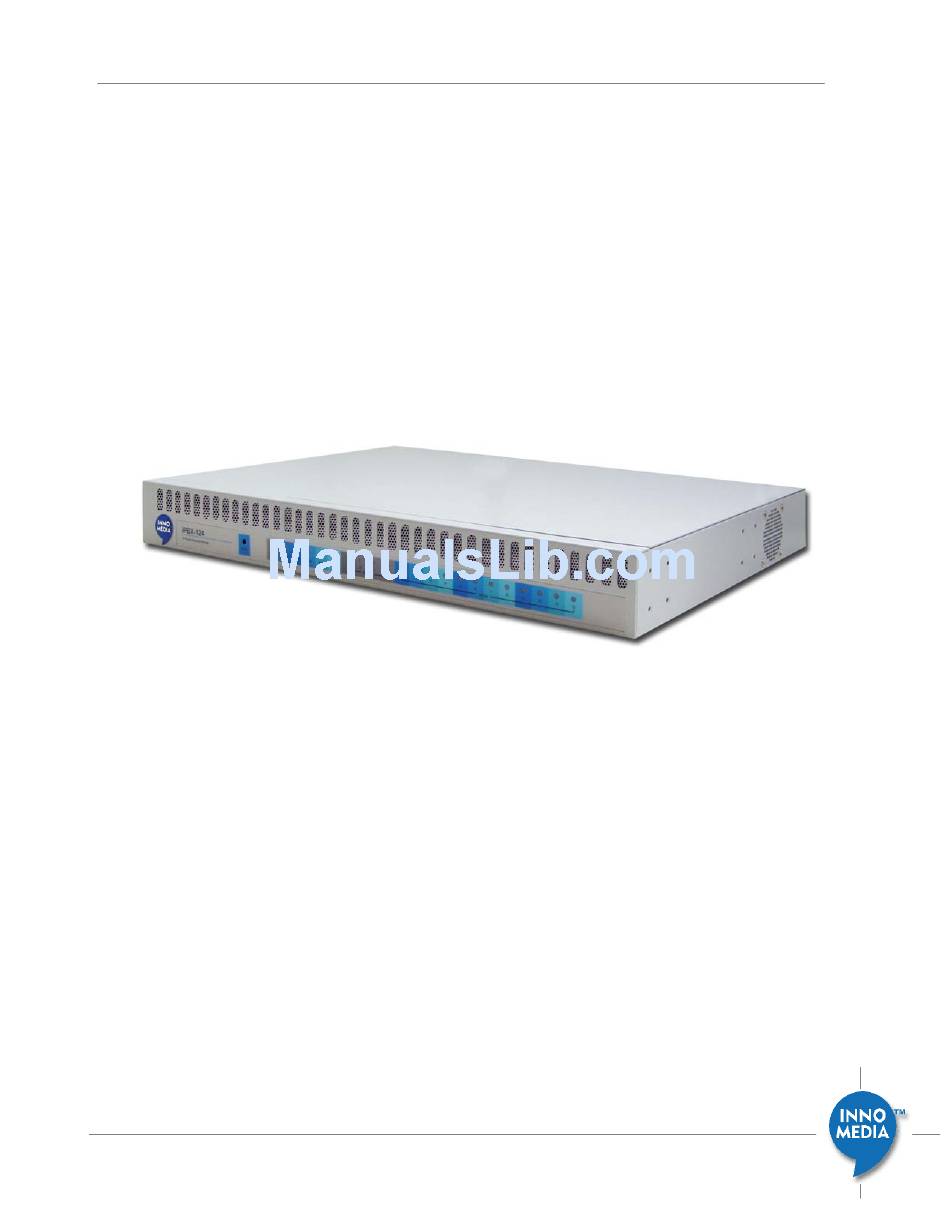

InnoMedia iPBX-412 Quick Install Guide
InnoMedia
iPBX-412 Quick Install Guide
Version 1.0
March, 2009
1
March 2009 - InnoMedia

Advertisement

loading
Need help?

Need help?

Do you have a question about the iPBX-124 and is the answer not in the manual?

Questions and answers

Related Manuals for InnoMedia iPBX-124

Summary of Contents for InnoMedia iPBX-124

  • Page 1 InnoMedia iPBX-412 Quick Install Guide InnoMedia iPBX-412 Quick Install Guide Version 1.0 March, 2009 March 2009 - InnoMedia...

  • Page 2: Table Of Contents

    InnoMedia iPBX-412 Quick Install Guide Table of Contents INSTALL IPBX IN YOUR CORPORATE NETWORK ................4 ADDING PHONES TO IPBX......................7 CONFIGURE SIP TRUNK LINES WITH AN ITSP ................8 VERIFYING COMMUNICATIONS ....................9 PANEL LEDS ..........................10 UPS LED ON WEB PAGE....................... 11...
  • Page 3 InnoMedia iPBX-412 Quick Install Guide Introduction This document describes the ways to − install iPBX in your corporate network − create extension numbers, and assign devices to users − configure SIP trunk lines with an ITSP − verify communications Figure 1. Hardware Interface A.

  • Page 4: Install Ipbx In Your Corporate Network

    InnoMedia iPBX-412 Quick Install Guide Install iPBX in your corporate network Step 1 - Connecting Panel Ports Figure 2 iPBX Hardware interface port 1. Connect the power cord to the iPBX. Connect the power cord to the iPBX and power on iPBX. The Power LED will then turn ON.
  • Page 5 InnoMedia iPBX-412 Quick Install Guide Step 2 – Check the administrative computer that configures iPBX Figure 3 iPBX Network Placement (the picture is of model iPBX-412) The iPBX configuration described in the Installation guide is for when the iPBX is residing on a corporate network which is behind an existing corporate firewall.
  • Page 6 InnoMedia iPBX-412 Quick Install Guide Figure 4. Configuring the IP address of the administrative computer Step 3 - Configuring Network – LAN Start your web browser, and enter “http://172.16.1.1” in the Address field to connect to the iPBX. The login page will appear. The default User Name is “admin” and the Password is “123”.

  • Page 7: Adding Phones To Ipbx

    InnoMedia iPBX-412 Quick Install Guide 3. Choose one Internet connection type from the ‘Connection Type’ drop-down list, such as PPPoE, DHCP Client or Static IP. 4. Enter the required information provided by your ISP in the corresponding fields or use any of default values. Click the <Apply> button.

  • Page 8: Configure Sip Trunk Lines With An Itsp

    InnoMedia iPBX-412 Quick Install Guide 2. Go to the page of Telephony Settings Devices, and click the <Discover> button and then the new devices will appear in device list on the web page. Option B. Adding IP Phones and configuring associated extensions in a batch mode.

  • Page 9: Verifying Communications

    InnoMedia iPBX-412 Quick Install Guide Verifying Communications To monitor the on going call sessions, go to the page at Telephony Monitor View Mode”. Default telephony plan of iPBX is listed in the following table. Description Default Value Extension number of Analog Phone (FXS)

  • Page 10: Panel Leds

    InnoMedia iPBX-412 Quick Install Guide Panel LEDs The below table describes each LED indicator. Blinking State State Steady - Green The device power is on. The device power is off. the led will first be System Booting green, then red, then...

  • Page 11: Ups Led On Web Page

    InnoMedia iPBX-412 Quick Install Guide UPS LED on web page Status Indicators Blinking State UPS State Steady Green The UPS is on utility power. (AC Mode) Steady Yellow The UPS is on battery power. Blinking Yellow The battery is at a low state.
