Summary of Contents for Jaspi Nordic 12
-

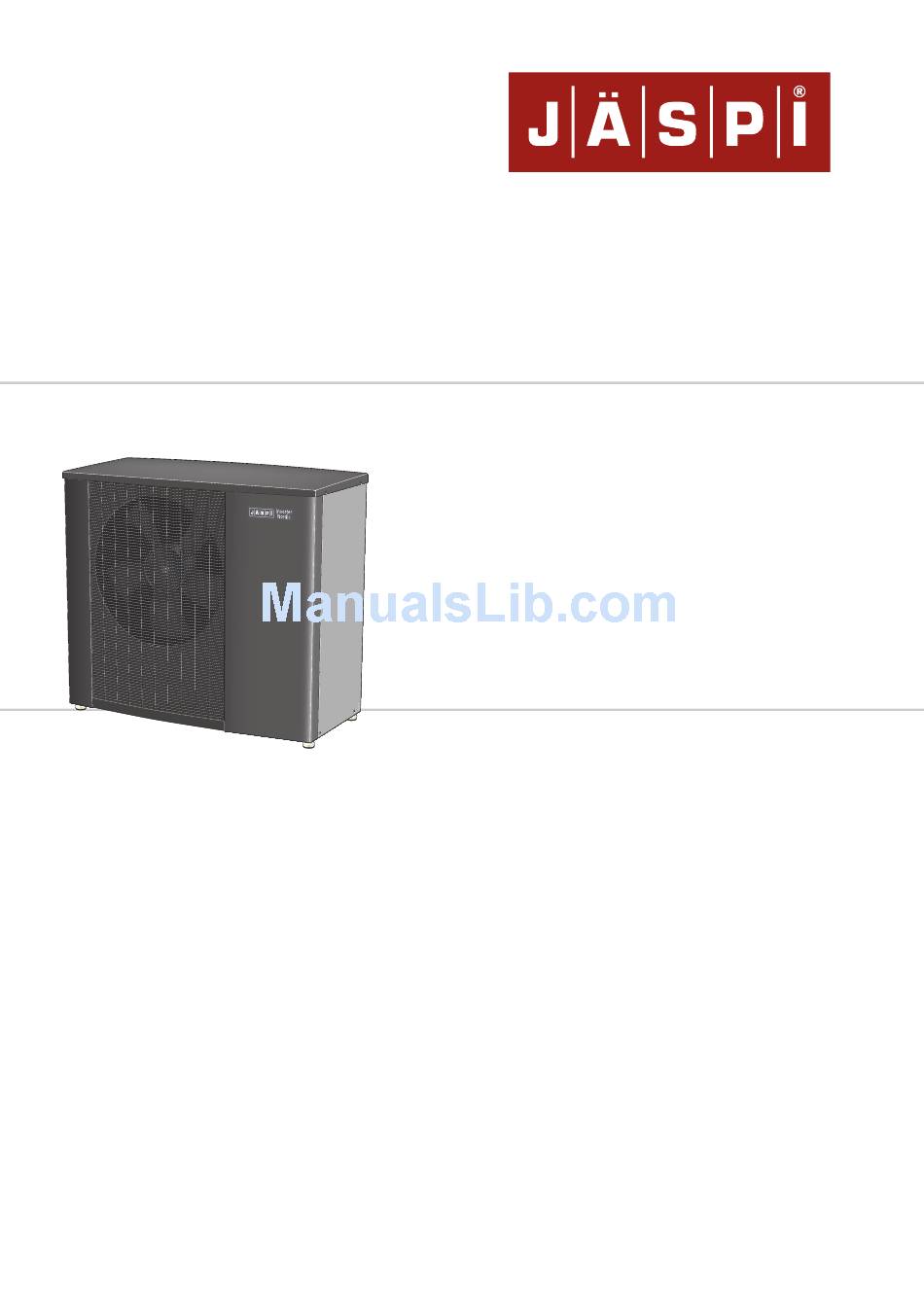

Page 1: User Manual

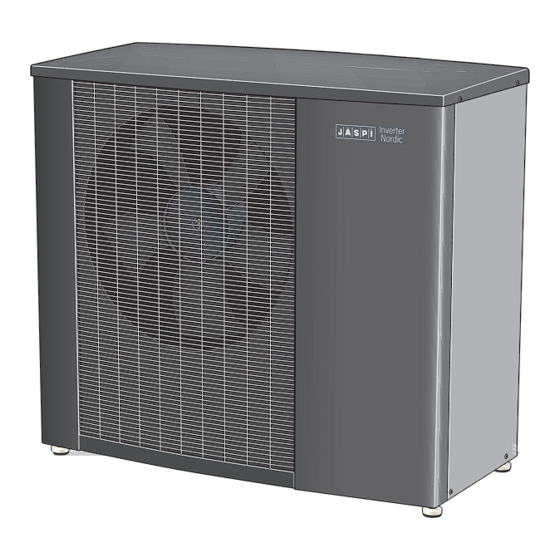

User manual JÄSPI Inverter Nordic 8, 12, 16, 20 Air/water heat pump UHB EN 1817-2 331844... -
Page 3: Table Of Contents
Table of Contents 1 Important information Installation data Safety information Symbols Marking Serial number JÄSPI Inverter Nordic – An excellent choice 2 The heat pump – the heart of the house Heat pump function Control of JÄSPI Inverter Nordic Maintenance of JÄSPI Inverter Nordic 3 Disturbances in comfort Troubleshooting 4 Technical data... -
Page 4: Important Information
1 Important information Installation data Product JÄSPI Inverter Nordic Serial number Installation date Installer Serial number must always be given. Certification that the installation is carried out according to instructions in Kaukora's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information... -
Page 5: Safety Information
Safety information This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 6: Symbols
Symbols NOTE This symbol indicates danger to person or machine . Caution This symbol indicates important information about what you should observe when maintaining your installation. This symbol indicates tips on how to facilitate using the product. Marking The CE mark is obligatory for most products sold in the EU, regardless of where they are made. -
Page 7: Serial Number
Serial number The serial number can be found at the top left on the rear cover and at the bottom on the side. Serial number Caution You need the product's (14 digit) serial number for servicing and support. JÄSPI Inverter Nordic – An excellent choice JÄSPI Inverter Nordic is an air/water heat pump, specially designed for the Nordic climate, which uses the outdoor air as its energy source. - Page 8 ■ JÄSPI Inverter Nordic has automatic capacity regulation of the fan. ■ Long service life The material has been chosen for a long service life and is designed to withstand the Nordic outdoor conditions. ■ Many possibilities JÄSPI Inverter Nordic is intended for combination with the indoor module JÄSPI Theowatti Air / control module JÄSPI_MCU40.
-
Page 9: The Heat Pump - The Heart Of The House
2 The heat pump – the heart of the house Heat pump function Värmebärare Heating medium Värmebärare Köldmedium Refrigerant Köldmedium Uteluft Köldbärare Brine 40 °C 50 °C 45 °C 55 °C 100 °C 80 °C Kondensor Kondensor Condenser Expansionsventil Kompressor Expansionsventil Kompressor Expansion valve... - Page 10 An air/water heat pump can use the outdoor air to heat up a home. The conversion of the outdoor air’s energy to residential heating occurs in three different circuits. In the brine circuit (1), free heat energy is retrieved from the surroundings and transported to the heat pump. The heat pump increases the retrieved heat’s low temperature to a high temperature in the refrigerant circuit, (2).
-
Page 11: Control Of Jäspi Inverter Nordic
Control of JÄSPI Inverter Nordic The heat pump is controlled in various ways depending on your system. You control the heat pump via your indoor module JÄSPI Theowatti Air or control module JÄSPI_MCU40. See the relevant manual for more inform- ation. -
Page 12: Maintenance Of Jäspi Inverter Nordic
Maintenance of JÄSPI Inverter Nordic Regular checks When your heat pump is located outdoors some external maintenance is required. NOTE Insufficient maintenance can cause serious damage to JÄSPI Inverter Nordic, which is not covered by the guarantee. Checking grilles and bottom panel on JÄSPI Inverter Nordic Regularly check throughout the year that the grille is not clogged by leaves, snow or anything else. - Page 13 Keep free of snow and ice F2120 F2120 Prevent snow from building up and covering the grilles and drain holes on JÄSPI Inverter Nordic. F2120 Keep free of snow and/or ice. Chapter 2 | The heat pump – the heart of the house JÄSPI Inverter Nordic...
- Page 14 Cleaning the outer casing If necessary the outer casing can be cleaned using a damp cloth. Care must be exercised so that the heat pump is not scratched when cleaning. Avoid spraying water into the grilles or the sides so that water penetrates into JÄSPI Inverter Nordic.
- Page 15 Updating the software in JÄSPI Inverter Nordic via the control module or indoor module The latest software for both JÄSPI Inverter Nordic and the indoor mod- ule/control module can be found at www.myupway.com. Click the "Software" tab to download the latest software for your installa- tion.
-
Page 16: Saving Tips
Caution Software for the indoor/control module must be updated when software for outdoor module JÄSPI Inverter Nordic is updated. Caution It can take up to 30 minutes to update the software for JÄSPI Inverter Nordic. Caution Restart the indoor module/control module to see the correct version number of the software. - Page 17 Power consumption % of annual Energiförbrukning fördelat över året The air/water heat pump's energy distribution spread across the year consumption April June July mars april juni juli Månad Month Increasing the indoor temperature one degree increases power consump- tion by approx. 5%. Domestic electricity In the past it has been calculated that an average Swedish household has an approximate annual consumption of 5000 kWh domestic electri-...
- Page 18 Equipment Normal Output Appr. ann. con- sump (kWh) Freezer (Operation: 24 h/day) Stove, hob (Operation: 40 min/day) 1500 Stove, oven (Operation: 2 h/week) 3000 Dishwasher, cold water connection (Opera- 2000 tion 1 time/day) Washing machine (Operation: 1 times/day) 2000 Tumble drier (Operation: 1 times/day) 2000 Vacuum cleaner (Operation: 2 h/week) 1000...
-
Page 19: Disturbances In Comfort
3 Disturbances in comfort Troubleshooting NOTE Work behind covers secured by screws may only be carried out by, or under the supervision of, a qualified installation engineer. JÄSPI Inverter Nordic communicates all alarms to the indoor module/con- trol module (JÄSPI Tehowatti Air / JÄSPI MCU40). Basic actions Make sure that the air flow to JÄSPI Inverter Nordic is not blocked by ■... -
Page 20: Technical Data
4 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (www.kaukora.fi). Chapter 4 | Technical data JÄSPI Inverter Nordic... -
Page 21: Glossary
5 Glossary Additional heat The additional heat is the heat produced in addition to the heat supplied by the compressor in your heat pump. Additional heaters can be for ex- ample, immersion heater, electric heater, solar power system, gas/oil/pellet/wood burner or district heating. Ambient temperature sensor A sensor that is located outdoors on or close to the heat pump. -
Page 22: Domestic Hot Water
Condenser Heat exchanger where the hot gas state refrigerant condenses (cooled and becomes a liquid) and releases heat energy to the house heating and hot water systems. If a heat pump has COP of 5, this means that you only pay for a fifth of your heating demand. -
Page 23: Expansion Valve
Expansion valve Valve that reduces the pressure of the refrigerant, whereupon the temper- ature of the refrigerant drops. Expansion vessel Vessel with heating medium fluid with the task of equalising the pressure in the heating medium system. During heating operation, the fan transports energy from the ambient air to the heat pump. -
Page 24: Safety Valve
Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evap- oration, the refrigerant absorbs heating energy and when condensing gives off heating energy. Return pipe The line in which the water is transported back to the heat pump from the house heating system (radiators/heating coils). -
Page 25: Item Register
Item register Basic actions, 19 Safety information, 5 Saving tips, 16 Power consumption, 17 Control module's function, 9 Serial number, 7 Control of JÄSPI Inverter Nordic, 11 Silent mode, 14 Symbols, 6 Disruptions to comfort Basic actions, 19 Technical data, 20 Disturbances in comfort, 19 The heat pump –... - Page 28 WS name: -Gemensamt WS version: a497 WS release date: 2018-03-26 11:21 Publish date: 2018-04-18 12:53 Kaukora Oy PL 21, Tuotekatu 11 212 01 Raisio +358 2 437 4600 E-mail: kaukora@kaukora www.kaukora.fi 331844...
