Cradlepoint COR IBR1150 Quick Start Manual

Cor ibr1100 series
Hide thumbs Also See for COR IBR1150:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
Knowledge Article
COR IBR1100 Series Manual: Quick Start
Content
Quick Start
Basic Setup
1. Insert an activated SIM.
A wireless broadband data plan must be added to your Cradlepoint COR IBR1100/IBR1150. Wireless broadband data plans are
available from wireless carriers such as Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be provisioned with the carrier.
Contact your carrier for details about selecting a data plan and about the process for provisioning your SIM.
Once you have an activated SIM, insert it into the integrated modem:
1.
2.
3.
4.
5.
6.
7.
2. Attach modem/WiFi/GPS antennas.
Antennas are NOT included in the product package because of the diverse needs of customers. Both the COR IBR1100 and COR
IBR1150 have two connectors for 3G/4G modem antennas (SMA) and one connector for GPS (SMA):
1 of 7
Basic Setup
Accessing NetCloud OS (NCOS)
First Time Setup Wizard
Using NetCloud Manager

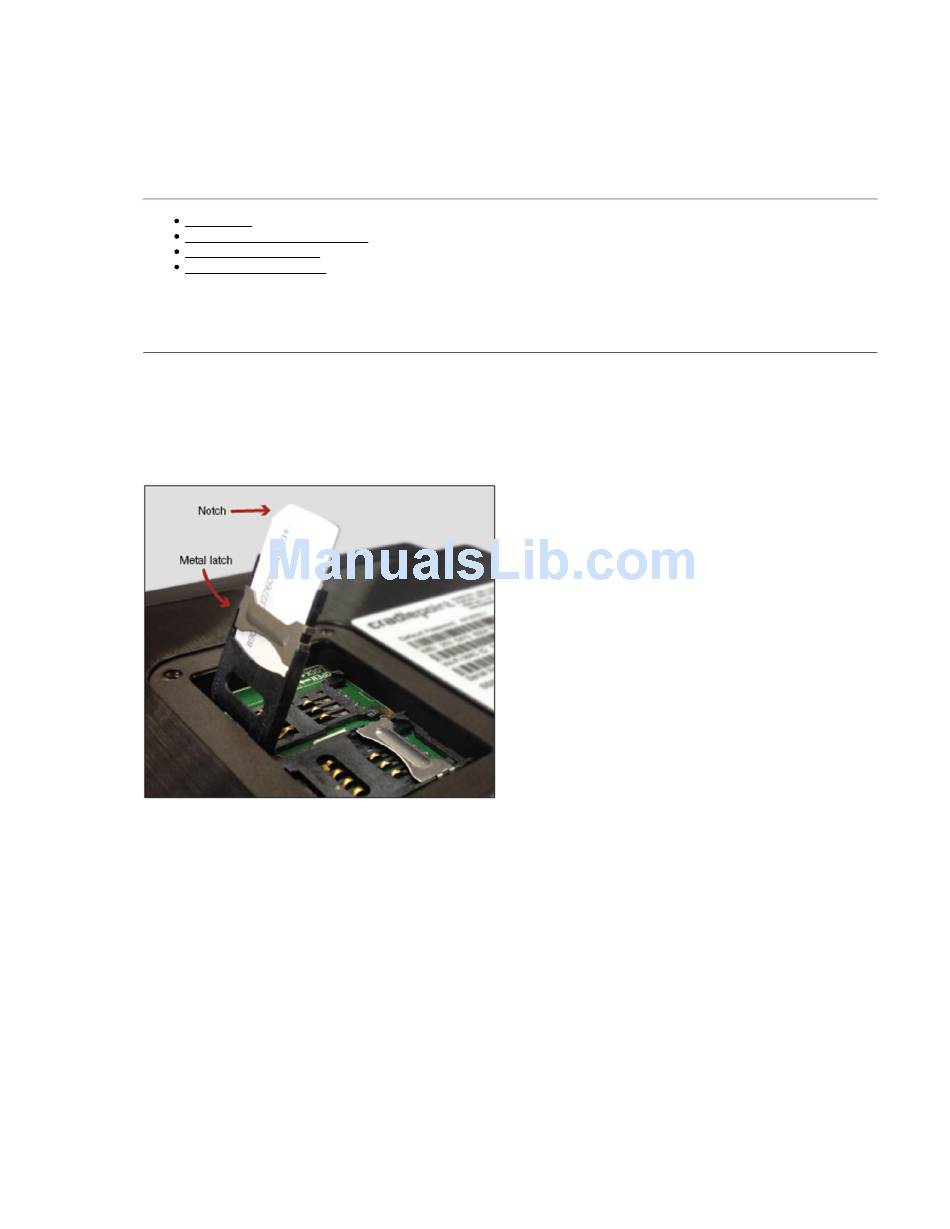

Remove the bottom SIM cover (requires a small Phillips screwdriver).
Slide the metal latch down to unlock the SIM cartridge. Use the cartridge marked SIM 1 first (use the other cartridge, SIM
2, for a secondary/backup SIM).
Pull the cartridge upward, so it is standing at a 90° angle.
Insert the SIM card with the metal contacts down and notch out.
Press the cartridge back into place.
Return the metal latch to the start (lock) position.
Replace the bottom SIM cover. NOTE: Device will not power on without cover in place.
http://knowledgebase.cradlepoint.com/articles/Support/COR-IBR1100-Se...
9/12/2017, 5:55 PM

Advertisement

loading

Related Manuals for Cradlepoint COR IBR1150

Summary of Contents for Cradlepoint COR IBR1150

  • Page 1 1. Insert an activated SIM. A wireless broadband data plan must be added to your Cradlepoint COR IBR1100/IBR1150. Wireless broadband data plans are available from wireless carriers such as Verizon, AT&T, Sprint, EE, and Vodafone. The SIM must be provisioned with the carrier.
  • Page 2 Knowledge Article http://knowledgebase.cradlepoint.com/articles/Support/COR-IBR1100-Se... Addtionally, the COR IBR1100 has two connectors for dual-band dual-concurrent 2.4/5 GHz WiFi (RSMA): See the Cradlepoint antenna accessories page for recommended options for antennas. Also see the Antenna Ordering and Installation Guide, available as a PDF in the Resources section of antenna and router product pages. Many network designs with the COR IBR1100/IBR1150 require remoted antennas with cables.
  • Page 3 We recommend experimenting with different antenna orientations to see what works best in your environment (e.g., spreading one set of antennas out to a 45° angle). Do NOT allow antennas to lie flat on top of each other. See the charts below for Cradlepoint's default antenna recommendations for some common networking designs: Basic Setup...
  • Page 4 3. Connect to a power source. The Cradlepoint COR IBR1100/IBR1150 includes a two meter direct wire power and GPIO cable (shown below). The GPIO cable can be attached to the fuse box in a vehicle. For detailed instructions on vehicle installations, see the COR...
  • Page 5 Knowledge Article http://knowledgebase.cradlepoint.com/articles/Support/COR-IBR1100-Se... Accessing NetCloud OS (NCOS) Once you are connected, open NetCloud OS (NCOS) to make configuration changes to your router. Open a browser window and type “cp/” or “192.168.0.1” in the address bar. Press ENTER/RETURN. When prompted for your password, type the eight character DEFAULT PASSWORD found on the product label.

  • Page 6: First Time Setup Wizard

    When you log in to NetCloud OS (NCOS) for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD, which will walk you through the steps to customize your Cradlepoint COR IBR1100/IBR1150. You have the ability to configure any of...
  • Page 7 Once you have registered your device, go to cradlepointecm.com and log in using your NCM credentials. For more information about how to use Cradlepoint NetCloud Manager, see the following: Getting Started NCM in the Knowledge Base This article not have what you need? Not find what you were looking for? Think this article can be improved? Please let us know at suggestions@cradlepoint.com.
