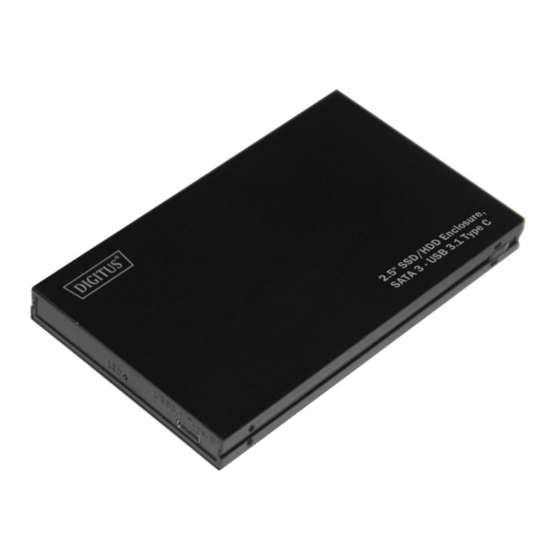

2.5" SSD/HDD Enclosure,
Description:
This enclosure enables the installation of a 2.5" SATA hard drive or SSD.
Specification:
Externally to be connected via USB
Connector:
Internal: 1 x SATA 22 pin male
External: 1 x USB 3.1 Type C female
Suitable for 2.5" SATA HDD/SSD:
HDD height up to 9.5 mm
SATA HDD/SSD up to 6 Gb/s
HDD/SSD up to 2 TB
SATA 3 - USB 3.1 Type C
Quick Installation Guide
DA-71110
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DA-71110
Summary of Contents for Digitus DA-71110

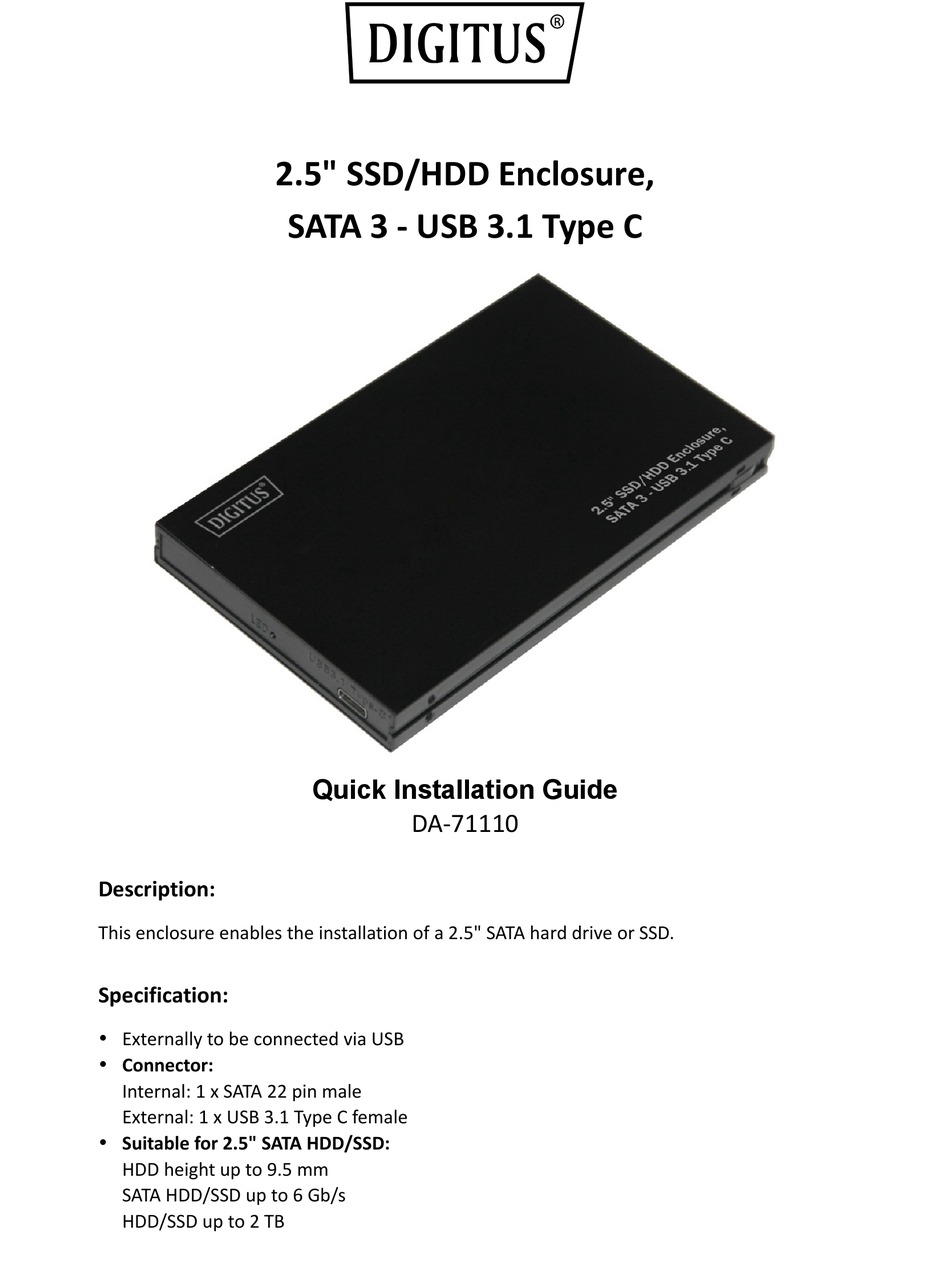

- Page 1 2.5" SSD/HDD Enclosure, SATA 3 - USB 3.1 Type C Quick Installation Guide DA-71110 Description: This enclosure enables the installation of a 2.5" SATA hard drive or SSD. Specification: Externally to be connected via USB Connector: Internal: 1 x SATA 22 pin male External: 1 x USB 3.1 Type C female...
-
Page 2: System Requirements
Data transfer rate: USB 3.1 up to 10 Gb/s SATA up to 6 Gb/s LED indicator for power and access Dimensions (LxWxH): ca. 126 x 78 x 13 mm Cable data: 1 x cable USB 3.1 Type C male to USB 3.0 Type-A male ca. 30 cm (incl. connector) System requirements: Windows Vista/7/8/8.1/10.
