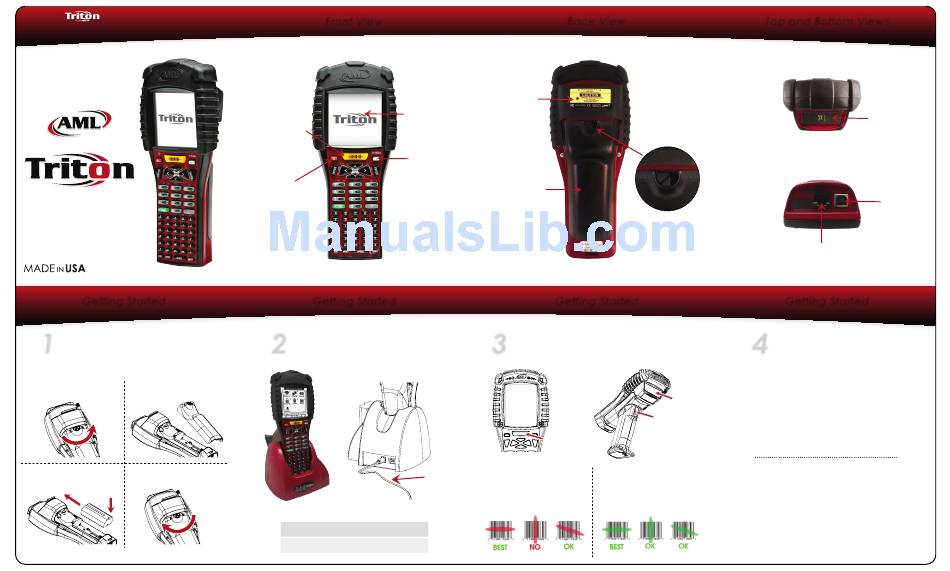

AML TRITON SVC-EW7500 Quick Start Manual

Wireless Terminal
Quick-Start Guide
800.648.4452
www.amltd.com
01032014

Getting Started

1
Load the main battery
1. 2.
Turn the access latch Remove the battery
counter-clockwise door by hinging it upward
3. 4.
Turn the access
Insert battery in rear and slide
latch clockwise
towards the front to engage
1
2
Front View
LCD
Scan Key
Backlight Key
Power Key
Getting Started
2
Charge the Triton for
at least 4 hours
5V DC
Power Jack

Battery Charge Times

Before Initial Use = 4 hours
For Full Charge = 6 hours
Back View
Laser Safety
Label
Battery Latch
Battery
Door
Getting Started
3
Using the Integrated
Barcode Scan Engine
Scan Trigger
Scan Button
Laser - 2D Imager -
Capable of
The laser scan
scanning bar codes at any
engines require proper
orientation as long as the
alignment of the bar code
under the scanner window. entire symbol is visible to the
scanner and illuminated.
Top and Bottom Views
Top
Bottom
Charging Port
& RS-232
Getting Started
4
Learn More about
the AML Trition
Learn more about the Triton at:
www.amltd.com/triton
Scan Engine
Window or
Give us a call at
800.648.4452
Get Updates from AML
Don't forget to register your product(s)
online at www.amltd.com/register
receive updates about AML products
and software.
Scan Engine
Window
USB Port
