Welcome
Getting set up and ready is simple.
1
Install your thermostat.
2
Setup your thermostat
3
Connect thermostat to the Z-Wave network.
Before you
begin
Gather
• Small screw driver
• Drill (if needed)
1
Install your thermostat
1.1
Switch OFF power to your
heating/cooling system
1.1a
Important!
To protect your
equipment, switch OFF
the power to your heating/
cooling system at the
breaker box or the system
switch.
1.1b
Confirm power is OFF. Try
to turn on heating/cooling
equipment by changing
temperature on your old
thermostat. Your power is
OFF if your system does not
turn ON.
1.2
Remove old thermostat
faceplate and leave wires
connected
1.2a
Take a picture of the wire
connections for later reference.
1.2b
If no wire is connected to a
terminal labeled C or no C
terminal exists on the old
thermostat, call 1-800-468-
1502 for wiring assistance.
Important!
C wire is required and is
the primary power source for your
thermostat. Without a C wire, your
thermostat will not power up.
1.3
Label wires
Do not label by wire color.
Use the supplied sticky tags to label
each wire as you disconnect it. Label
wires according to old thermostat
terminal designations, not by wire
color.
Note:
If no tag matches a terminal
designation, write the appropriate letter
on a blank sticky tag.
1.4
Remove wallplate
Remove the old wallplate from the
wall after all wires are labeled and
disconnected.
Automation and Control Solutions
Honeywell International Inc.
1985 Douglas Drive North
Golden Valley, MN 55422
yourhome.honeywell.com
® U.S. Registered Trademark.
© 2013 Honeywell International Inc.
33-00012—01 M.S.
10-13
Printed in U.S.A.

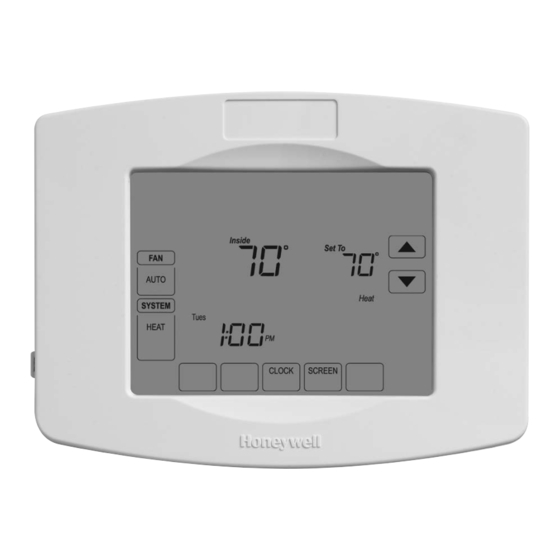

Quick Start Guide
Touchscreen
Thermostat
RTH8580ZW
Need Help?
For assistance with this product please
visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-
free at 1-800-468-1502.
or
Circuit
Heating/cooling
breaker
system power
box
This thermostat works with common 24 volt
systems such as forced air, hydronic, heat
pump, oil, gas, and electric.
It will not work with millivolt systems, such as
a gas fireplace, or with 120/240 volt systems
such as baseboard electric heat.
If you have an older thermostat with a
sealed mercury tube, see warning page
for proper disposal instructions.
C
Sticky
tag
Blank
sticky
tag
Terminal
C
designation
1.5
Separate Z-Wave thermostat
and its wallplate
On your new thermostat, grasp the
finger holds on the top and bottom of
the wallplate with one hand and the
thermostat (front) with the other hand.
Pull pieces apart.
1.6
Mount wallplate for Z-Wave
thermostat
Mount your new wallplate using
screws and anchors included with
the thermostat.
If necessary:
• Drill 3/16-in holes for drywall
• Drill 7/32-in holes for plaster
Note:
You may be able to use your
existing wall anchors. Hold the
wallplate up to the existing anchors
to check for alignment.
1.7
Connect wires
1.7a Starting with the C Wire, match
the sticky tag on the wire to the
terminal labels.
Important!
primary power source. Without a C wire,
your thermostat will not power up.
1.7b Loosen screw, insert wire on inside
edge of terminal, then tighten
screw.
1.7c Verify wire is firmly secured by
gently pulling on wire.
M31535
1.7d Repeat steps 1.7a–1.7c for all
other wires.
switch
1.7e Push any excess wire back into
the wall opening after all wires are
installed.
Labels don't match or have heat pump system?
See User Guide.
1.8
Remove battery tab
The thermostat is shipped from the
factory with the coin cell installed. To
keep the battery from discharging during
shipment and storage, the thermostat is
shipped with a plastic tab inserted in the
battery holder. Simply pull the plastic tab
out of the battery tray. Make sure that
the battery tray is fully inserted into the
thermostat.
1.9
Attach thermostat to wallplate
Align the thermostat onto wallplate and
MCR33823
snap into place.
1.10 Switch heating/cooling
system ON
Important!
1.10a Verify that the C wire is
connected at the thermostat
and at the heating/cooling
system.
1.10b Make sure the heating/
M31545
cooling system door is firmly
secured.
1.10c Switch power back ON for
your heating/cooling system
at the breaker box or its
power switch.
MCR31537
1.11 Set date and time
1.11a Touch
change displayed time and date.
1.11b Press and hold an arrow to
quickly change a setting.
33-00012-01
1.11c Press
Thermostat
C wire is required and is the
Y2
L
E
AUX
K
Note:
application might be different
than the wiring from above.
Remove tab.
or
buttons to
s
t
Year
DONE
to save changes.
Time
Finger holds
Wallplate (back view)
M31538
Wallplate
HEAT PUMP
CONVENTIONAL
Y2
RC
RC
M31543
R
R
L
E/AUX
W2
W
O/B
K
Y
Y
K
G
G
C
C
MCR31539
only
Remove metal jumper
if you
have both R and RC wires
HEAT PUMP
CONVENTIONAL
RC
RC
Y2
R
R
W
O/B
Y
Y
W2
G
G
K
C
C
MCR35007
Insert wires here
The wiring for your
Wallplate
HEAT PUMP
CONVENTIONAL
Y2
RC
RC
M31543
R
R
L
AUX
W2
W
O/B
/E
K
K
Y
Y
G
G
C
C
Thermostat
or
Circuit
Heating/cooling
M31544
breaker
system power
box
switch
Day
Month
Turn over
