Hioki PW3360-20 Measurement Manual

PW3360-20, PW3360-21
CLAMP ON POWER LOGGER
Measurement Guide
Nov. 2017 Revised edition 3 Printed in Japan
PW3360A984-03 17-11H

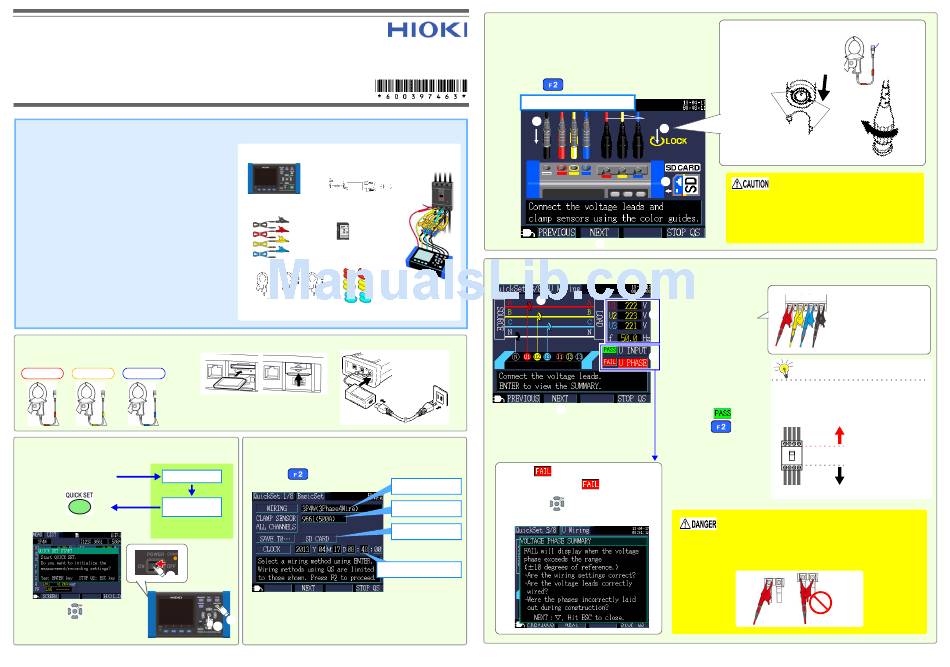

Easy configuration with the Quick Set
How to configure electric energy measurement
for a 3-phase, 4-wire 220 V line
Setting Example Value
Wiring: 3P4W (3 phase, 4 wire)
Clamp sensor: Model 9661 (500 A rating)
Current range: 50 A
Save to...: SD memory card
Save interval: 5 minutes
Save items: PW3360-20 Average only
PW3360-21 Average only (no harmonics)
Filename: Automatic
Rec. start method: Interval
Rec. stop method: Manual
Clock setting: User-specified
Measurement frequency:50 Hz
2
Getting reading
1
Attach the color clips.
For CH1 For CH2 For CH3
Model 9661 Model 9661 Model 9661
Red Yellow Blue
clip clip clip
1 Starting the Quick Set See: Instruction manual
"1.3 Names and Functions
of Parts"
1
Language setting
Turn on the instrument.
2
Measurement
Press the key.
frequency setting
The Quick Set Start dialog
will be displayed.
First power-on only
1
3
Press the "Enter" key.
Thank you for purchasing the HIOKI PW3360
Clamp on Power Logger.
This guide introduces the PW3360's basic mea-
surement procedure with the Quick Set to first-
time users.
Before using the instrument, be sure to read
the Instruction manual carefully.
<You will need>
Concept image of measurement
3-phase, 4-wire 220 V line
Model PW3360 Model Z1006 AC Adapter
Clamp on Power Logger
Black (N)
Model Z4001
Red (CH1)
SD Memory
Card 2GB
Yellow (CH2)
(optional)
Blue (CH3)
Model L9438-53 Voltage Cords
Red (CH1)
Yellow (CH2)
Blue (CH3)
Model 9661 Clamp on Sensor
Color Clips
(optional) x 3
3
Insert the SD memory card. Connect the AC adapter.
Be sure to provide a Hioki optional
SD memory card.
Operation is not guaranteed with other
SD memory cards.
2 Basic settings
Configure the settings as the following screen, and then
press the "NEXT" key.
(50 Hz)
Set the current time.
2
3
-1-
3 Peripheral connections
1
Insert the voltage cord connectors.
2
Connect the clamp sensors.
EN 3
Be sure that the SD memory card is inserted.
4
Press the "Next" key.
Align terminals and colors.
1
4 Connecting voltage cords to the measurement line
1
5
Result is
1
Move the cursor to
3P4W
2
Press the "Enter" key.
9661 (500A)
3
Check key points and correct the wiring.
SD card
See: Instruction manual
"1.3 Names and Functions Proper way to connect a BNC connector
of Parts"
BNC connector
1
Line up the
connector.
Color cilps
2
Current input
terminal
3
When disconnecting the BNC connector, be sure to
release the lock before pulling off the connector.
Forcibly pulling the connector without releasing the
lock, or pulling on the cable, can damage the con-
nector.
4
See:
"Chapter 3 Configuration and Measurement"
1 2
Check the wiring diagram.
2
Connect the voltage
3
cords to the second-
ary side of the breaker.
3
Check the readings.
Red Yellow Blue Black
In this example, the readings
4
should be approximately
220 V and 50 Hz.
4
Verify the results of
checking the wiring.
All results are
5
Press the "Next" key.
item.
To avoid electric shock and short circuits, do not
allow the voltage cord clips to touch two wires at the
same time. Never touch the edge of the metal clips.
OK
-2-
BNC connector
Line up
2
Lock the
connector.
Instruction manual
Example
A B C N
3-phase, 4-wire 220 V line
Secondary side of breaker
When clipping connectors the
wiring bar, clip them to the
metallic portion of the bar.
Hint
What are the primary and secondary sides of
the breaker?
The power source side of the breaker is called
the primary side; whereas the load side, the
secondary side.
Source
Primary side
Breaker
Secondary side
For your safety, connect
Load
the voltage cords and the
clamp sensors to this side.
PROHIBITED
