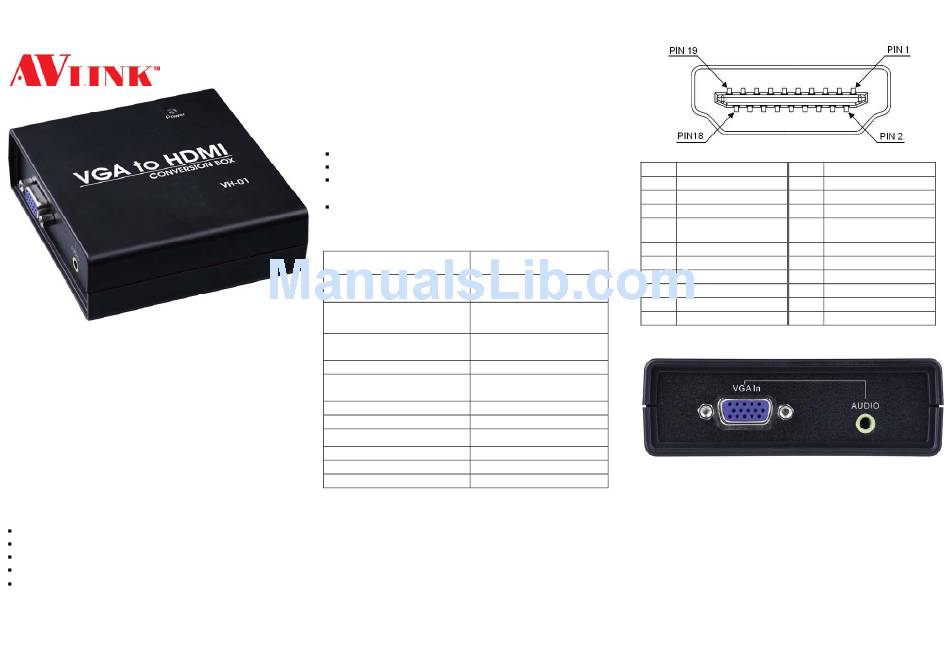

AVLink VH-01 User Manual

VGA to HDMI
Conversion Box
(VH-01)
U M
SER ANUAL
VH-01
Package Contents-
1 VH-01
1 user manual
1 power adapter DC 5V
1 VGA 1.2M cable (HD-15 Male to Male)
1 Audio 1.2M cable
Any thing missed, please contact with your vendor.
Introduction
The VH-01 Converter connect computer with HD-15
connector to digital monitor or projector. The converter
changes your PC analog VGA signal to digital graphic
signal, so that digital display device or TV can be
connected to your PC analog output easily and
conveniently.
Features
Use PanelLink digital technology.
Compliant with the specification of HDMI 1.3.
Support high-resolution display up to WUXGA
(25-165MHz).
Connect PC with VGA connector to digital monitor or TV.
Specifications
Function
Video Input Connector
(VGA Female)
Audio Input Connector
(3.5Ø stereo plug)
Video Output Connector
(HDMI Female)
Max. Resolution
Cable Distance
(Single end)
Input Signal Type
Output Signal Type
Power Adapter (Min.)
Housing
V1.0 Weight
Dimensions (LxWxH)
Note:
Different cable qualify might effect upon the maximum
resolution and cable distance.
Technical Specifications
Input/Output Signal
Pin #
VH-01
1
1
1
1920 x 1200 60Hz
10 m (Max.)
Standard VGA Signal
Standard HDMI Signal
DC 5V
Plastic
130g
95*91*31mm
-1-
Signal Pin #
1 TMDS Data 2+ 11 TMDS Clock Shield
2 12
TMDS Data 2 Shield TMDS Clock -
3 13
TMDS Data 2- CEC
Reserved
4 14
TMDS Data 1+
(N.C. on device)
5 15
TMDS Data 1 Shield SCL
6 16
TMDS Data 1- SDA
7 17
TMDS Data 0+ DDC/CEC Ground
8 TMDS Data 0 Shield 18 +5 Power
9 TMDS Data 0- 19 Hot Plug Detect
10 TMDS Clock+
FRONT VIEW
1. "VGA In" Port
2. "Audio In" Port
-2-
Signal
