Summary of Contents for Gaoke BG9000
-
Page 1: User Manual
BG9000 User Manual Guangzhou Gaoke Communications Technology Co.,LTD. -
Page 2: Table Of Contents
CONTENTS 1 Product Introduction 1.1 Hardware Interface 1.2 The Position of the Product in the Network 2 Configuration Introduction 3 Login WEB Administrator 4 WAN Configuration 5 Register IP Trunk Configuration 5.1 Registered Sever Configuration 5.2 Add IP Trunk Account 6 Extension Set Distribution and Configuration 6.1 Add Extension Account 6.2 IAD or SIP Account Assign and Registration... -
Page 3: Product Introduction

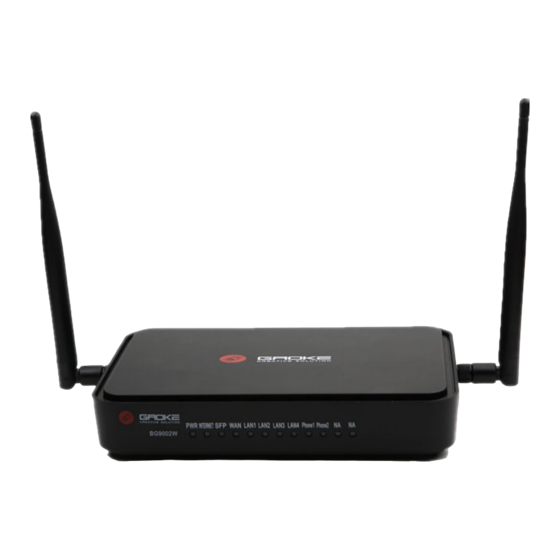

1 Product Introduction 1.1Hardware Interface A new series of ALL IN ONE INTELLIGENT Gateway BG9000 is an integrated access device, IAD, which integrate voip and data with the complete IPPBX, datarouting, farewall and VPN features. Comparing with other Voice equipments, BG9008N has integrated high data capacity of WIFI 300Mbps. -
Page 4: Configuration Introduction
Figure 1 The Position of the Product in the Network The position of BG9000 is demonstrated from the diagram above. It can register from IMS or other Soft Switch System. The FXS interface can connect to the analog phone and FAX machine. -
Page 5: Wan Configuration
The Web interface is ready for accessing about one minute after the device power on. The default LAN IP address is 192.168.100.1, you can access the Web interface via LAN port. Enter IP address in the address bar of web browser and then press ENTER, you can get access to the Login interface. -
Page 6: Register Ip Trunk Configuration
Figure 3 WAN sub interfaces Figure 4 WAN IP configuration DATA sub interface has 5 ways to get the IP address.The most common way is:static IP, DHCP and PPPoE.The detail connect method is provided by carrier or client. 5. Register IP Trunk Configuration 5.1 Registered Sever Configuration Choose the menu quick configuration→Register IP Trunk→Registered Server or Sip Trunk management→Register IP trunk→Register server, enter the register server configuration... -
Page 7: Add Ip Trunk Account
Figure 5 Register Server configuration Registering server should consider the actual conditions to choose backup server or proxy server, as the operator’s IMS platform need to configure register server and proxy server. In the example of figure 5, it just runs register server and proxy server. 172. 16. 0. 90. 5.2 Add IP Trunk Account Choose the menu SIP Trunk→Register IP Trunk→IP trunk account or IP trunk management→Register IP Trunk→Trunk account,click add access into the IP truck... -
Page 8: Extension Set Distribution And Configuration
BG9000’s extension account includes FXS and new added SIP user. The device has 2-32 FXS users. If the user number is not enough, you can register from BG9000 through IAD device. At this time, SIP account is needed. The existed extension set account can be seen by the following steps. -
Page 9: Iad Or Sip Account Assign And Registration
SIP phone need IP address to guarantee they can connect with LAN OR WAN. (2) Registered server address is the IP address of BG9000 LAN or WAN. (3) Link with the IAD or SIP phone need to set SIP account information including register account name,authorization and password. -
Page 10: Extension Set Parameter Configuration
can see the new added SIP account registration state. As shown in figure 10, 8 new added SIP account was registered successfully in the IAD which IP is 192.168.100.101. Sip account status 6.3 Extension Set Parameter Configuration Choose Manu extension management== 》... -
Page 11: Did Configuration
Extension parameter configuration 7. DID Configuration How to connect IP trunk with extension sconfiguration? And when will it ring when IP trunk call in? All these can be configure in DID page. All registered IP trunk and FXO will shown in this page. -
Page 12: Dod Configuration
DID configuration As it is shown in the figure 12, the ring destination FXS1, FXS2, operator, call in extension set and SIP account has to set up in the first place. One IP trunk can only set one ring destination. 8. -
Page 13: Call Routing Configuration
Figure 14 call routing configuration Figure 14 only add a dial policy(dia 0as head’s number),it need to choose the out call IP truck for the dial which can match the rule.Shown as Figure 15 Figure 15 call routing IP trunk There are several importan parameters in call routing”pier,routing authorization,IP trunk name.”whether the extension can call out from IP tunk,it need these parameter to judge. - Page 14 the human services, can also dial the other kin to different departments, also can directly dial the extension number。Built-in operator can be configured in the following order： (1) choose menu voice management==》build-in attendant==》basic configuration access into the IVR configuration page and start the attendat,add build in attendant number. Figure 16 Attendat configuration （2）choose menu voice management==》build-in attendant==》basic configuration click...
-
Page 15: Ringing Grouping Configuration
Figure 17 IVR menu configuration （3）In DID page configuration through which relay style, can be incoming to the built-in operator 。 The previous figure 12 DID configuration page displays from + 862082598982 trunk call in, you can call to the built-in operator。 10.2 Ringing grouping Configuration Grouping ringing is a commonly used function, when to call a number, multiple Numbers from vibration or vibration in a certain order, need to achieve by adding grouping... -
Page 16: Figure Configuration
Figure 18 ring group configuration Figure Configuration he destination number will be sent all in one time for SIP application, digitmap is used to determine exactly when there are enough digits entered from the user to place a call. If the number length of suited route item is fixed, the number will be sent when specified number of digits is received;... -
Page 17: Ivr、Color Ring Voice Document Management
customer want to dial 9 out, just in front of the number of each figure rules add a 9。 This configuration number figure applies only to equipment FXS port。 IP account number figure on the SIP terminal equipment configuration, such as in IAD, SIP configuration on the phone。 10.4 IVR、Color Ring Voice Document Management Equipment have default IVR voice files, IVR, waiting for the sound file, keep the sound files and file.Voice management==》voice file configuration page you can input or modify the... -
Page 18: Snmp Administrator Configuration
10.5 SNMPconfiguration ANMP Administrator Configuration SNMP network is advantageous to the batch of equipment management, including batch update, batch configuration, and network management to hang under the router equipment, convenient maintenance.If you have a network management station, equipment is best when the installation is to enable SNMP. -
Page 19: Equipment Maintenance
Click the Save button when finished. Click Refresh button to refresh the web page. Figure 21 SNMP management configuration 11.Equipment Maintenance 11.1 Reboot and Apply If you modify the equipment IP address, the new IP address will take effect after restart the device, other configuration parameters just click the application can take effect. -
Page 20: Equipment Inner Packet Capture And Ping
Figure 22 3.8.3 Reboot System Choose menu“System Reboot”, then click Reboot button to reset the device. 11.2 Upgrade and parameter Leading in and out Equipment in use process may be due to special needs or problems need to upgrade version. Sometimes need parameter of equipment import and export.Choose the menu System== 》... - Page 21 of your network in the following screen. Equipment in the process of installation and debugging and use hard to avoid some problems, these failures may be due to network impassability, platform or the device itself, then can use equipment bring about location of diagnostic tools. Choose menu system==》Diagnostic tools==》Ping,If there is no ban ping in pinging the target, the ping tool can determine whether the network flow.Shown as Figure 24,This machine can through the WAN port ping this IP “172.16.0.90”.If you want to testing...
- Page 22 caught with a computer The following items are displayed on this screen: ► Ping: Enter the IP Address or Domain Name of the PC whose connection you wish to diagnose. ► Ping Count: Specifies the number of Echo Request messages sent. ►...
-
Page 23: Packet Capture By Port Image
► Interface: By selecting the interface, only packets through this interface will be captured. BG9002N User Manual Page 102 of 133 ► Protocol: By selecting the protocol, only packets of this protocol will be captured. ► Tcpdump: Enter some options of tcpdump(e.g. -n -s0 -c 100) ►... - Page 24 ► Log Server IP: Enter the IP address of the Log Server. ► Log Server Port: Enter the port that Log service used. Click the Save button when finished. Figure 25 Port Mirror...
