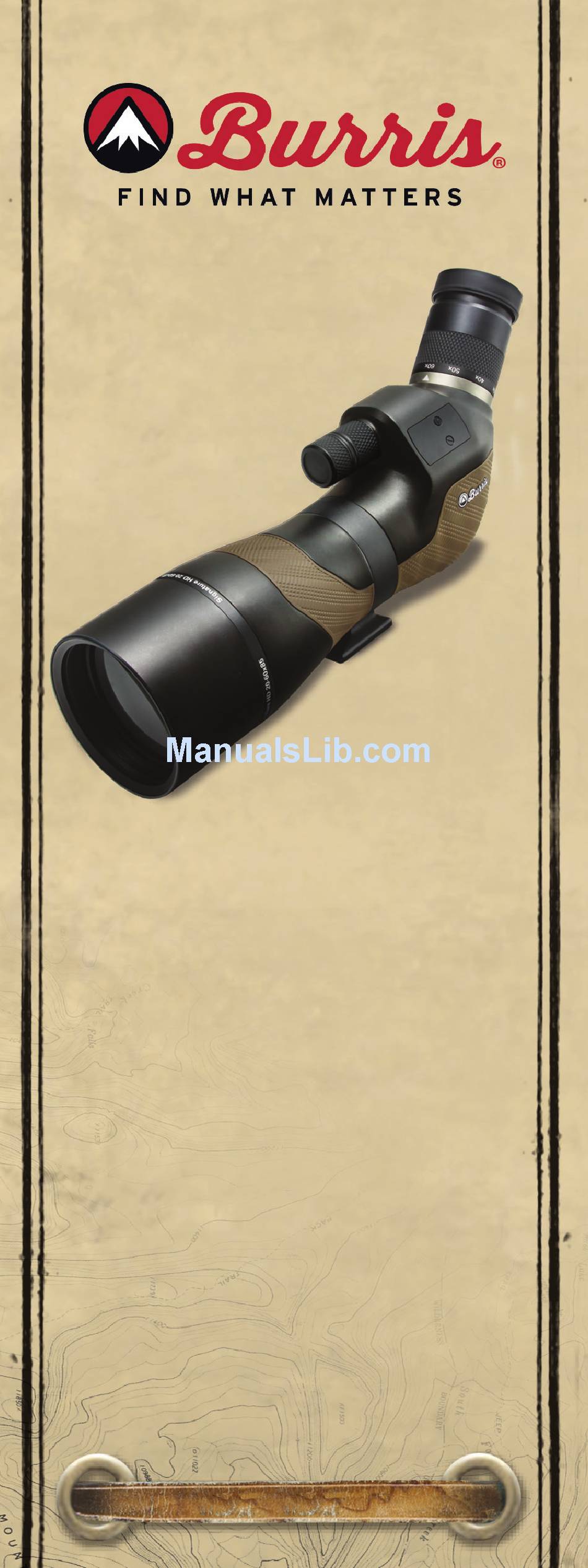

- Page 1 SIG NA TU R E H D SPO TT I NG SCO PE User Guide This user guide includes information for the Signature HD Spotting Scope. Please review thoroughly and pay close attention to the details pertaining to your Spotting Scope.
- Page 2 Backed by the legendary Burris Forever Warranty, you will enjoy the following features of your Signature HD spotting scope: • Built-in sun shade for reduced glare and protection from rain and snow • Coarse and fine focusing adjustment...
- Page 3 SI G N A T U R E HD SP OT T I N G S C O P E Eyepiece with Twist-up Eyecup Magnification Adjustment Ring Coarse Focus Dial Fine Focus Dial Tripod Mount Collar Tripod Mount Foot Retractable Sunshade Objective Lens...
- Page 4 30x Wide Angle Eyepiece (Sold Separately) Burris offers an accessory eyepiece with a fixed power 30x magnification. Ideal for tactical and precision shooting, it is available with either an SCR Mil or SCR MOA reticle.
- Page 5 Mounting the Spotting Scope to a Tripod For use in the field or at the range, the Signature HD can be mounted to a tripod or car window mount. The tripod foot is designed to work with any tripod head or quick-release plate that uses...
- Page 6 Using Your Spotting Scope The adjustable eyepiece provides a wide range of magnification—from 20x to 60x. The magnification settings are shown on the Magnification Adjustment Ring. Turn the ring and set the desired magnification using the silver arrow on the eyepiece. Remember that your field of view is reduced as magnification is increased.
-
Page 7: Adjusting The Viewing Angle
• Turn the fine focus dial to bring out critical details Adjusting the Viewing Angle For greater flexibility, the Signature HD can be adjusted for more comfortable viewing. Whether you are standing, sitting or prone, adjusting viewing... - Page 8 Attaching a FastFire Sight to the Spotting Scope The Signature HD has one removable plate on either side of the scope body, just in front of the eyepiece. Removing either plate provides access to an integrated mount that will accept any Burris FastFire red dot sight.
-
Page 9: Extendable Sunshade
This also provides some protection from rain and snow. Care & Maintenance The Signature HD spotting scope is fully waterproof and fogproof. In the event that the lenses are subjected to dust, dirt or mud, follow these steps to clean and protect the lens surface. - Page 10 Your Burris spotting scope will provide reliable performance given reasonable care and treatment. All moving assemblies are permanently lubricated. Only occasional cleaning of the outside of the scope and the exterior lenses is required.
-
Page 11: Warranty
Forever Warranty. We will repair or replace your Burris optic if it is damaged or defective. The warranty is automatically transferred to future owners. - Page 12 Burris Company 331 East 8th St., Greeley, CO 80631 (970) 356-1670 BurrisOptics.com Facebook.com/BurrisOptics INSTR-0102...
