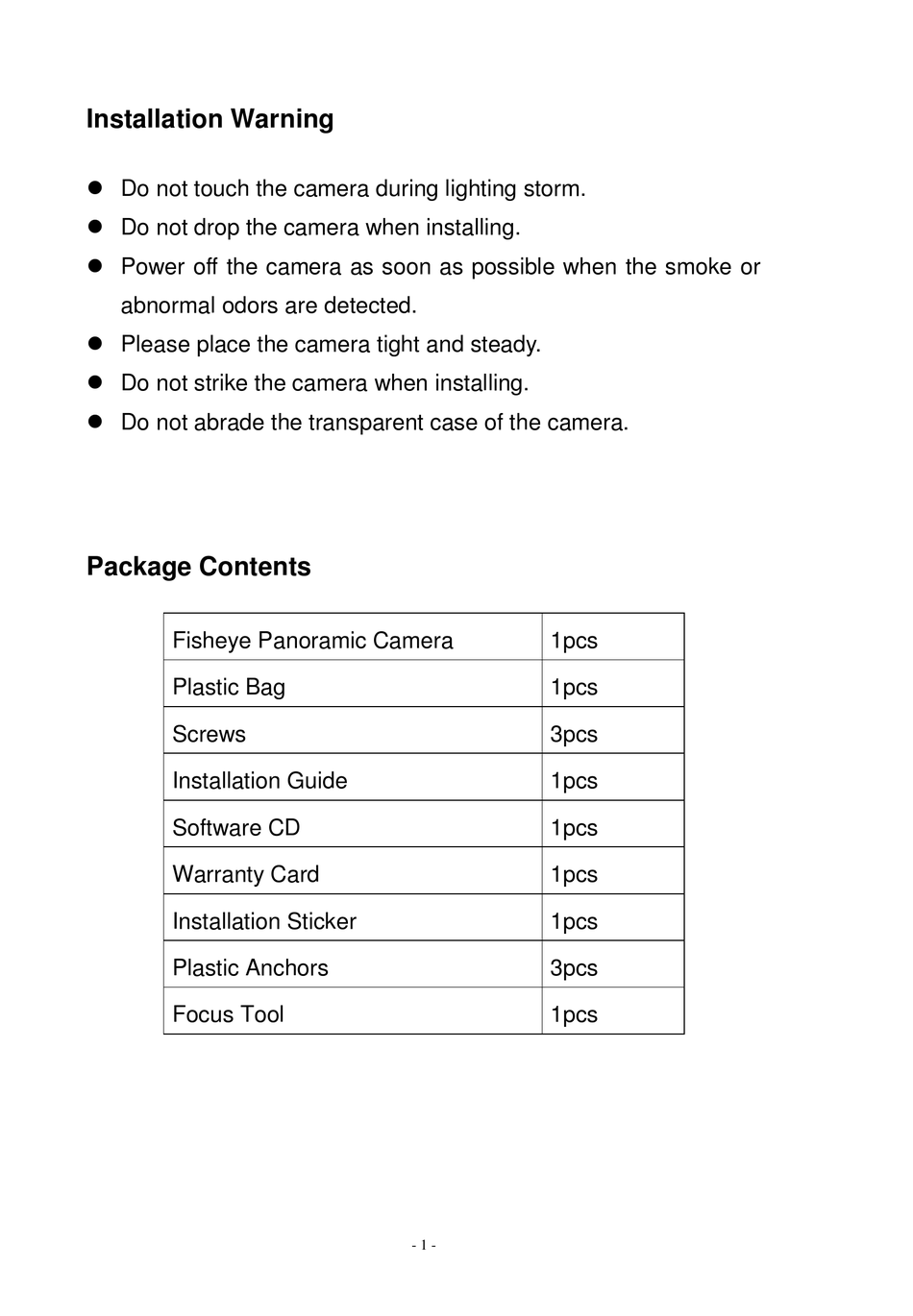

Installation Warning
Do not touch the camera during lighting storm.
Do not drop the camera when installing.
Power off the camera as soon as possible when the smoke or
abnormal odors are detected.
Please place the camera tight and steady.
Do not strike the camera when installing.
Do not abrade the transparent case of the camera.
Package Contents
Fisheye Panoramic Camera
Plastic Bag
Screws
Installation Guide
Software CD
Warranty Card
Installation Sticker
Plastic Anchors
Focus Tool
1pcs
1pcs
3pcs
1pcs
1pcs
1pcs
1pcs
3pcs
1pcs
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aussie AS-360P-IP
Summary of Contents for Aussie AS-360P-IP
- Page 1 Installation Warning Do not touch the camera during lighting storm. Do not drop the camera when installing. Power off the camera as soon as possible when the smoke or abnormal odors are detected. Please place the camera tight and steady. ...
-
Page 2: Physical Description
Physical Description Lens Speaker Network LED Power LED Reset Button Front View Power LED: always Red, it will light up after connecting the power supply. Network LED: Green, it will light up after connecting the power supply, and it will be blink when the network is workable. Reset Button: Use a sharp and thin stick to push the button with 5 seconds to reset the IP address to default. - Page 3 Top Arrow: it shows the direction of the camera video for wall installation. Please keep the arrow toward the ceiling when the camera is stalled on a wall. Line Outlet Mounting Holes TF card slot Back Cover Vertical View Connector Define Network RJ45 DC12V...
- Page 4 Dimension (Unit: mm) Installation Steps TF card install Please refer to the instruction to plug in or plug out the TF card. And the TF card installation must be completed before the camera installation. TF card slot Plug out Plug in - 4 -...
- Page 5 1. Attach the installation sticker to the ceiling/wall. Please check the arrow direction. The arrow should be kept the same direction with the Top arrow on the camera case when installing on the wall. 2. Drilling 3 pilot mounting holes and a cable hole according the circles on the sticker.
- Page 6 Rotate the camera body to modify the FOV, the maximum rotating angle is 20° . 6. Focus modify Focus modify holes Focus Rotate to focus If the camera image is not clear enough, please use the focus modify tool in the package to plug into the two small holes beside with the lens, then open the live view and the same time rotate the lens to focus the image.
- Page 7 Panoramic camera typical application Connect the power supply and network of the panoramic camera and power on when all the connecting has been done. Please accord to the label of the power supply connector to connecting the DC 12V power. Power DC12V PCMS Network Cable...
- Page 8 IP Setting The default IP address of each network panoramic camera is 192.168.0.123. According the network system different, the camera IP address maybe need to be changed to the same range of the network system, or the operating will fail. It is recommended to change the control computer’s IP address to 192.168.0.xxx at first, and connect the camera into the same network system with the computer.
